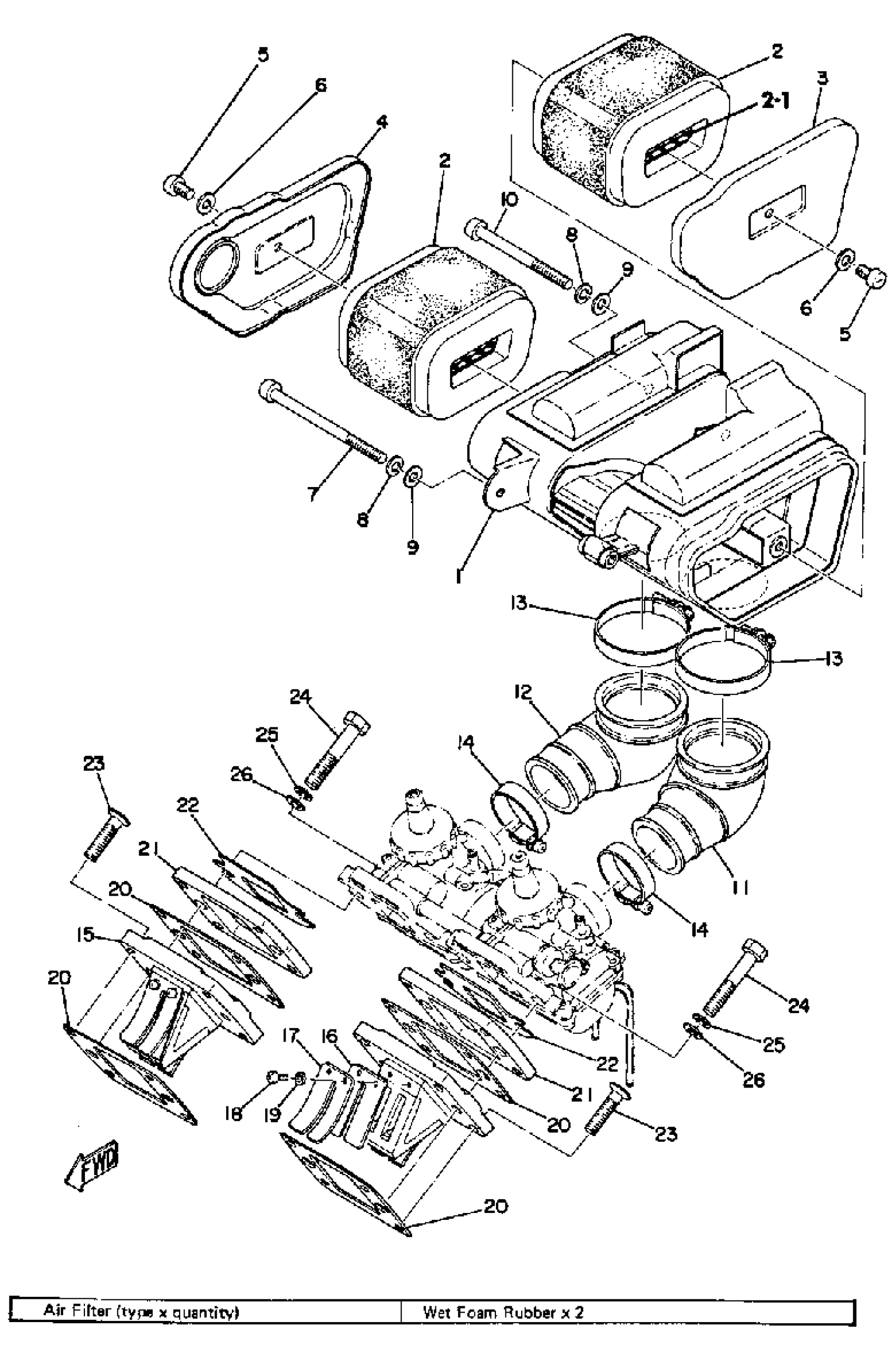

Yamaha RD200A (RD200) 1974 INTAKE Diagram
#
Description
Price
1
CASE, AIR CLEANER 1
(397-14411-00-00)
Unavailable
2
ELEMENT, AIR CLNR
396-14451-09-00
Unavailable
3
CAP, CLEANER CASE 1
(389-14412-01-00)
Unavailable
4
CAP, CLEANER CASE 2
(397-14422-00-00)
Unavailable
7
SCREW, PAN HEAD
98580-06580-00
Unavailable
8
WASHER, SPRING
92995-06100-00
Unavailable
11
JOINT, AIR CLNR 1
(397-14453-01-00)
Unavailable
12
JOINT, AIR CLNR 2
397-14463-01-00
Unavailable
15
REED VALVE ASSEMBLY
(389-13610-01-00)
Unavailable
16
. REED, VALVE
389-13613-00-00
Unavailable
17
STOPPER, REED VALVE
(389-13616-01-00)
Unavailable
18
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
19
WASHER, SPRING
92990-03100-00
Unavailable
20
GASKET,VALVE SEAT
389-13621-09-00
Unavailable
21
MANIFOLD, INTAKE
389-13555-00-00
Unavailable
22
GASKET, VALVE SEAT
389-13622-01-00
Unavailable
23
UNAVAILABLE IN PRICE BOOK
92706-06050-0
Unavailable
24
BOLT,SOCKET
91317-08040-00
Unavailable
25
WASHER(JN5)
92907-08100-00
Unavailable
26
WASHER(6TC)
92907-08200-00
Unavailable
