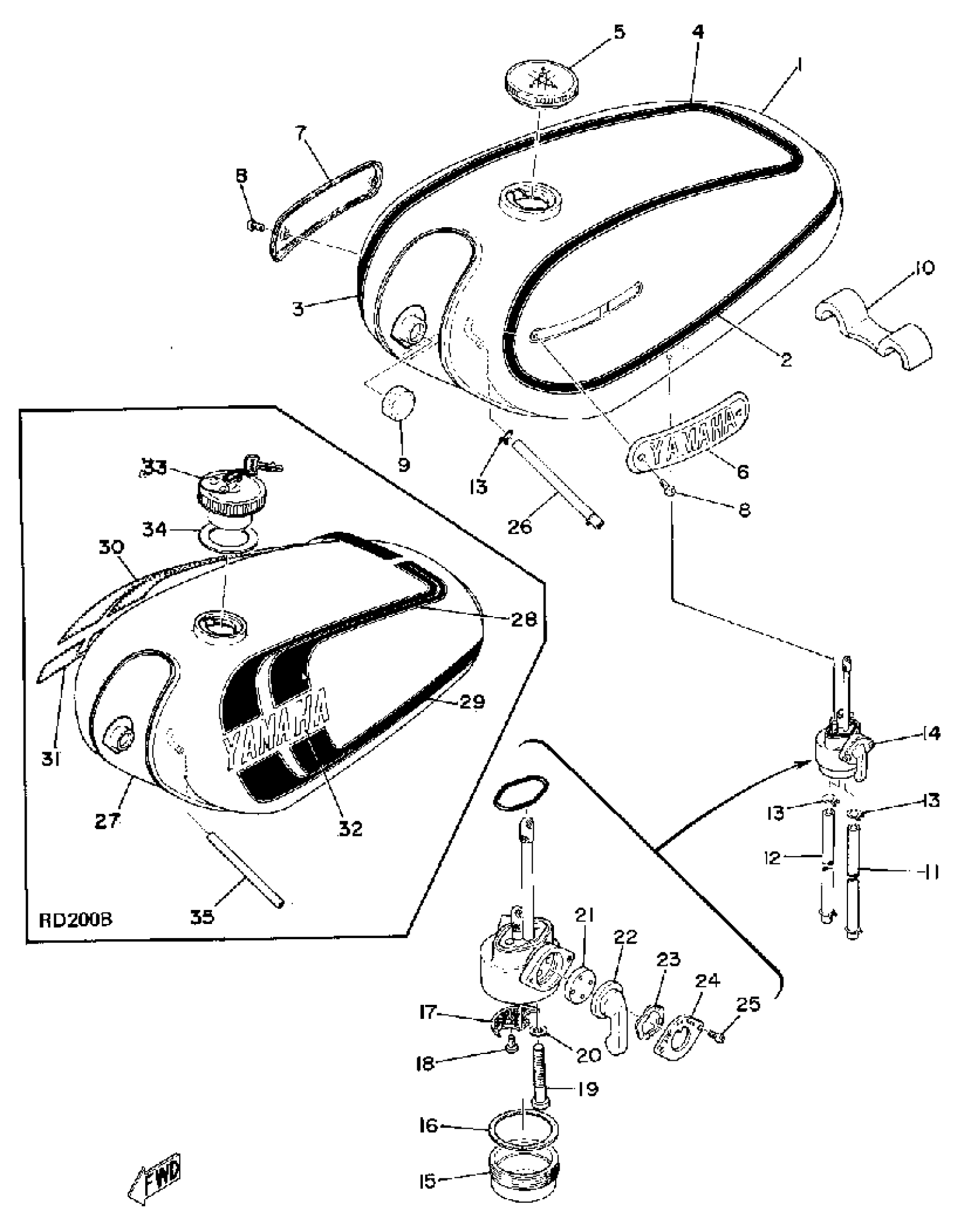

Yamaha RD200A (RD200) 1974 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(398-24110-11-75)

Unavailable

2

GRAPHIC, FUEL TNK 1

(397-24244-11-00)

Unavailable

3

GRAPHIC, FUEL TNK 2

(397-24245-11-00)

Unavailable

4

GRAPHIC, FUEL TNK 3

(397-24246-11-00)

Unavailable

5

CAP ASSY

122-24610-01-00

$22.99

6

EMBLEM 1

337-24161-10-00

Unavailable

7

EMBLEM 2

337-24162-10-00

Unavailable

8

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

9

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

10

DAMPER, LOCATING 2

(307-24182-00-00)

Unavailable

11

HOSE

(90445-09091-00)

Unavailable

12

HOSE (L420)

90445-092K1-00

$12.49

13

CLIP 101235600

90467-08003-00

$10.49

14

FUEL COCK ASSEMBLY 1

360-24500-00-00

Unavailable

15

. CUP, FILTER

360-24521-00-00

Unavailable

16

. GASKET

168-24522-00-00

Unavailable

17

. NET, FILTER 2

168-24515-00-00

Unavailable

18

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

19

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

20

GASKET(J17)

90430-06218-00

Unavailable

21

. VALVE

132-24523-00-00

Unavailable

22

. LEVER, COCK

168-24524-00-00

Unavailable

23

WASHER, WAVE

132-24518-00-00

Unavailable

24

PLATE, LEVER FITTING

(132-24525-01-00)

Unavailable

25

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

26

HOSE (L420)

90445-092K1-00

$12.49

27

FUEL TANK

(398-24110-11-W3)

Unavailable

28

GRAPHIC, FUEL TNK 7

(397-24254-20-00)

Unavailable

29

GRAPHIC, FUEL TNK 9

(397-24256-20-00)

Unavailable

30

GRAPHIC, FUEL TNK 8

(397-24255-20-00)

Unavailable

31

GRPHC, FUEL TANK 10

(397-24257-20-00)

Unavailable

32

EMBLEM, YAMAHA(4GA)

99221-00140-00

Unavailable

33

CAP ASY.

3FU-24650-12-00

Unavailable

34

. GASKET, CAP

498-24612-00-00

Unavailable

35

HOSE (L420)

90445-092K1-00

$12.49
