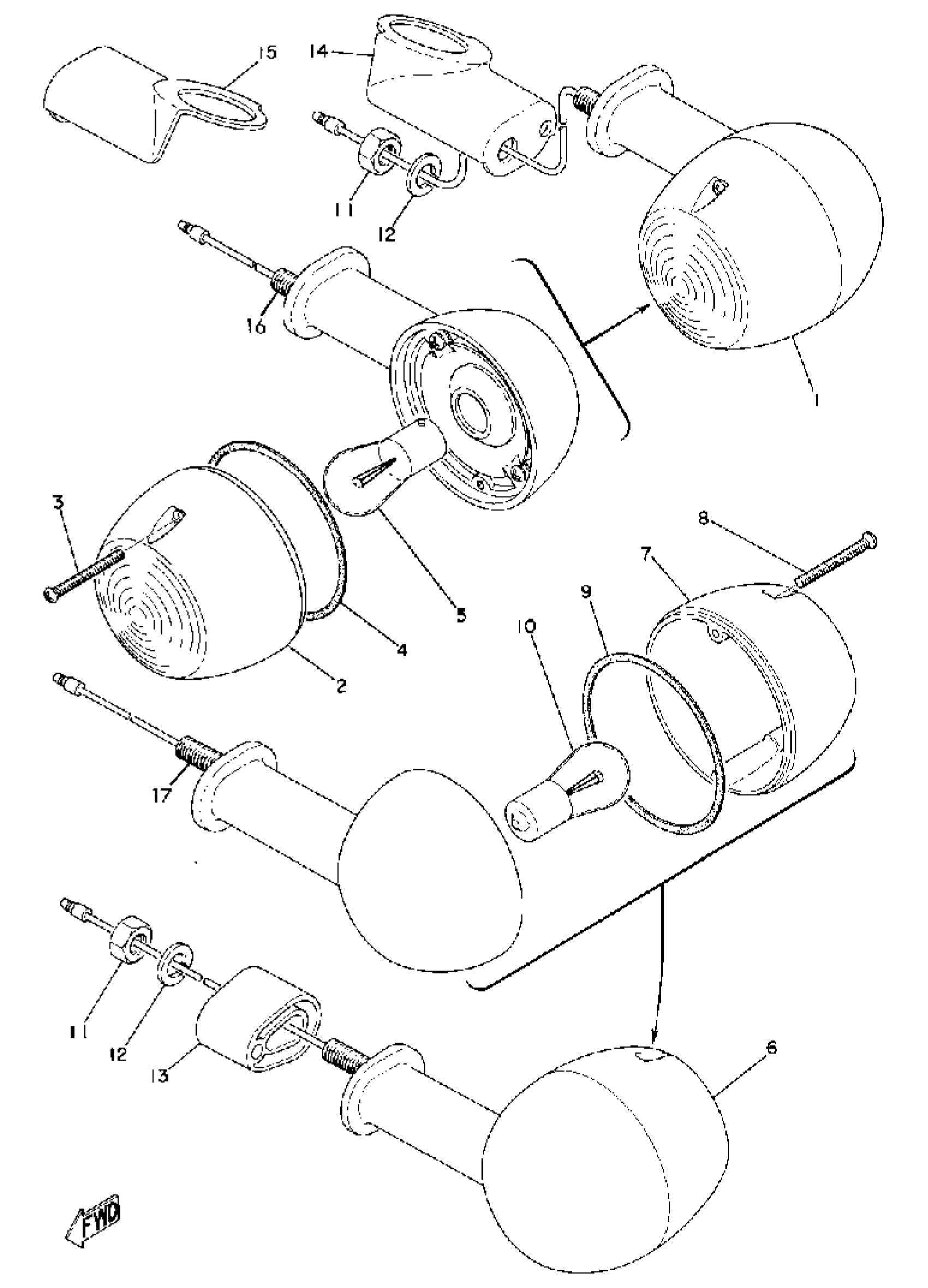

Yamaha RD200A (RD200) 1974 FLASHER LAMP Diagram

#

Description
Price

1

FRT FLSHR LITE ASSEMBLY

278-83310-71-93

Unavailable

2

LENS, FLASHER

183-83312-70-00

Unavailable

3

SCREW, LENS FITTING (3X32)

183-83333-71-00

$8.99

4

GASKET,FLASHER LANS

183-83313-70-00

Unavailable

5

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

6

R FLSHR LITE ASSEMBLY

(287-83330-75-93)

Unavailable

7

. LENS, REAR RED FLASHER

211-83332-75-00

Unavailable

8

SCREW, LENS FITTING (3X32)

183-83333-71-00

$8.99

9

GASKET,FLASHER LANS

183-83313-70-00

Unavailable

10

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

11

NUT(6L2)

95333-08600-00

$2.49

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

COLLAR,FLASHER 1

249-83316-95-00

Unavailable

14

STAY, FLASHER 1

(337-83318-00-98)

Unavailable

15

STAY, FLASHER 2

(337-83328-00-98)

Unavailable

16

. BOLT, STUD

360-83367-09-00

Unavailable

17

. BOLT, STUD

341-83367-09-00

Unavailable
