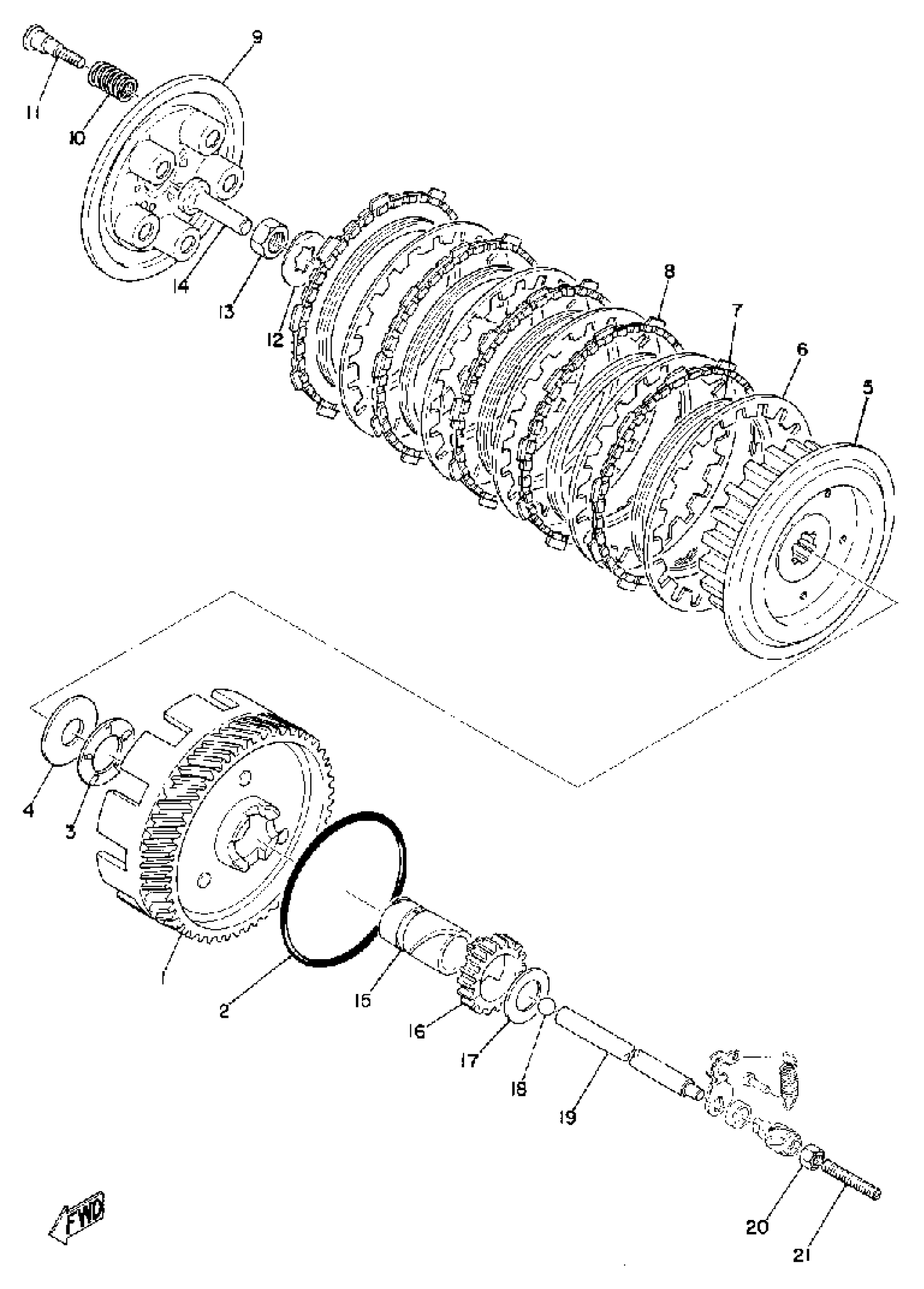

Yamaha RD200A (RD200) 1974 CLUTCH Diagram

PRI DRVN GEAR

(174-16105-01-00)

Unavailable

CLUTCH ASSEMBLY

(174-16301-60-00)

Unavailable

O-RING (173)

93210-85075-00

$4.99

. BEARING, FLAT #41

93341-22603-00

Unavailable

. PLATE, THRUST 1

174-16154-00-00

Unavailable

. BOSS, CLUTCH

174-16371-01-00

Unavailable

PLATE, CLUTCH 1

336-16324-10-00

$18.49

RING, CUSHION

137-16367-00-00

$17.49

PLATE, FRICTION

3HA-16321-00-00

$31.99

PLATE, PRESSURE

132-16351-00-00

$55.99

SPRING (137-16333-00)

90501-20122-00

$4.99

SCREW, SPECL SHAPE

(90149-05147-00)

Unavailable

WASHER, LOCK (1L8)

90215-16127-00

$9.49

NUT,SPEC'L SHAPE

90179-16018-00

$14.99

ROD, PUSH

174-16356-00-00

$20.99

COLLAR (174-16181-00)

90387-20439-00

Unavailable

GEAR, KICK PINION

251-15631-01-00

Unavailable

PLATE, THRUST 2

174-16164-00-00

Unavailable

BALL

93505-16006-00

Unavailable

ROD, PUSH 2

237-16357-01-00

Unavailable

NUT(650)

95380-06700-00

Unavailable

BOLT SET 241163430000

90113-06013-00

Unavailable
