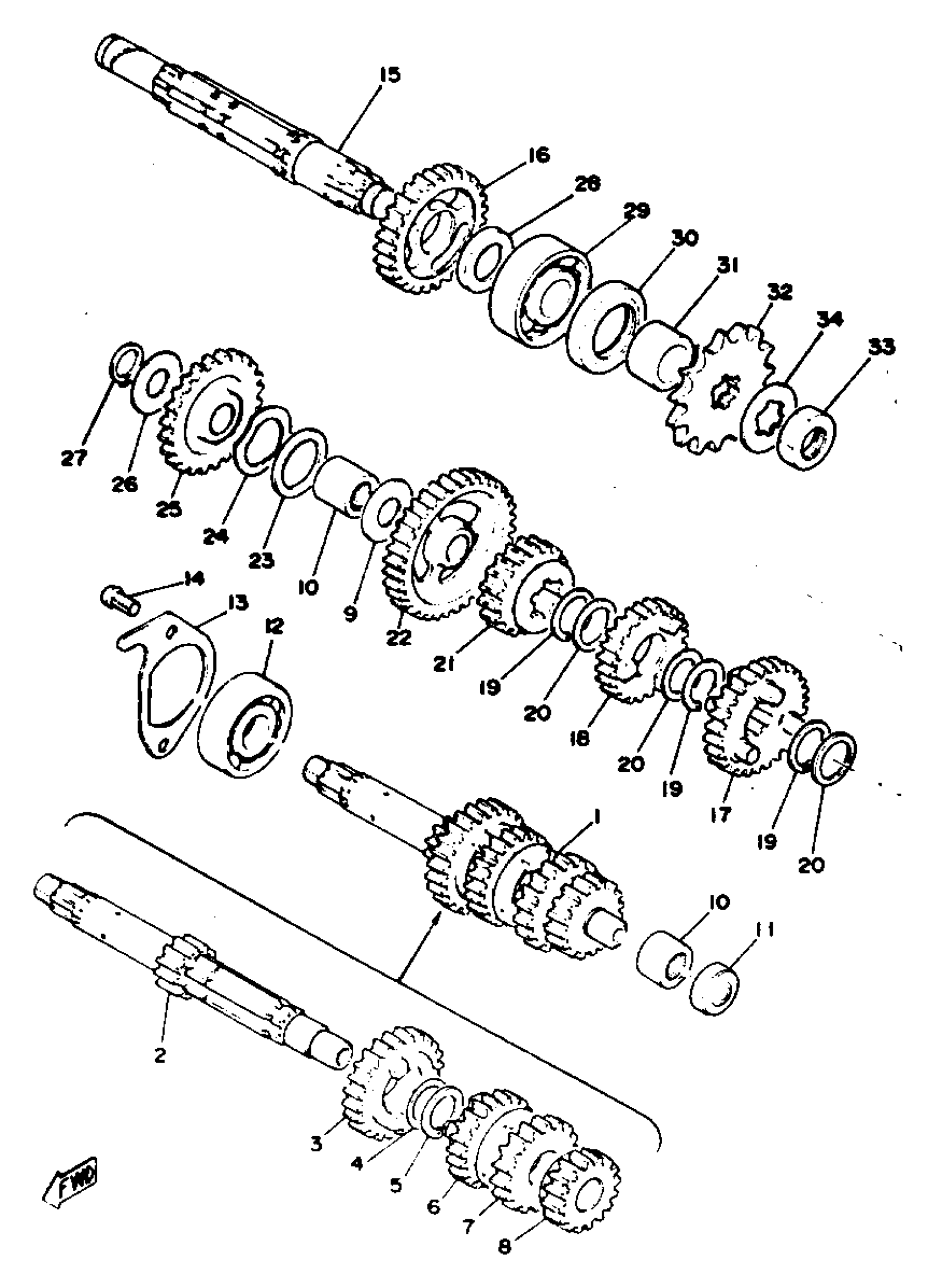

Yamaha RD125C (RD125) 1976 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE

(307-17410-00-00)

Unavailable

2

AXLE, MAIN

(183-17411-00-00)

Unavailable

3

GEAR, 5TH PINION

(183-17151-00-00)

Unavailable

4

WASHER PLATE 132172160000

90201-20266-00

$9.49

5

CIRCLIP (525)

93410-20038-00

$3.76

6

GEAR, 4TH PINION

(307-17141-00-00)

Unavailable

7

GEAR, 3RD PINION

(307-17131-00-00)

Unavailable

8

GEAR, 2ND PINION

(183-17121-01-00)

Unavailable

9

SHIM, DRIVE AXLE

164-17427-00-06

$5.49

10

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

$36.99

11

SEAL, PUSH ROD (3V6)

93109-06060-00

$8.49

12

BEARING(4HM)

93306-30317-00

$39.99

13

PLATE, COVER

(307-17471-00-00)

Unavailable

14

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

15

AXLE, DRIVE

(183-17421-00-00)

Unavailable

16

GEAR, 2ND WHEEL

(307-17221-01-00)

Unavailable

17

GEAR, 3RD WHEEL

(307-17231-00-00)

Unavailable

18

GEAR, 4TH WHEEL

(307-17241-00-00)

Unavailable

19

CIRCLIP (525)

93410-20038-00

$3.76

20

WASHER PLATE 132172160000

90201-20266-00

$9.49

21

GEAR, 5TH WHEEL

(183-17251-00-00)

Unavailable

22

GEAR, 1ST WHEEL

(307-17211-01-00)

Unavailable

23

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

24

WASHER, WAVE

(131-15643-00-00)

Unavailable

25

GEAR, KICK IDLE

(183-15651-00-00)

Unavailable

26

SHIM, DRIVE AXLE

164-17427-00-06

$5.49

27

CIRCLIP(1AR)

99009-15400-00

Unavailable

28

SPACER

90560-20038-00

Unavailable

29

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

30

OIL SEAL

93106-28043-00

Unavailable

31

COLLAR

90387-20346-00

Unavailable

32

SPROCKET, DRIVE (13T)

93822-13213-00

Unavailable

32

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

Unavailable

32

SPROCKET,DRIVE 15T(1741746150)

93822-15065-00

Unavailable

32

SPROCKET,DRIVE 16T(10V1746160)

93822-16095-00

Unavailable

33

NUT,SPEC'L SHAPE

90179-16018-00

Unavailable

34

WASHER, LOCK (1L8)

90215-16127-00

Unavailable
