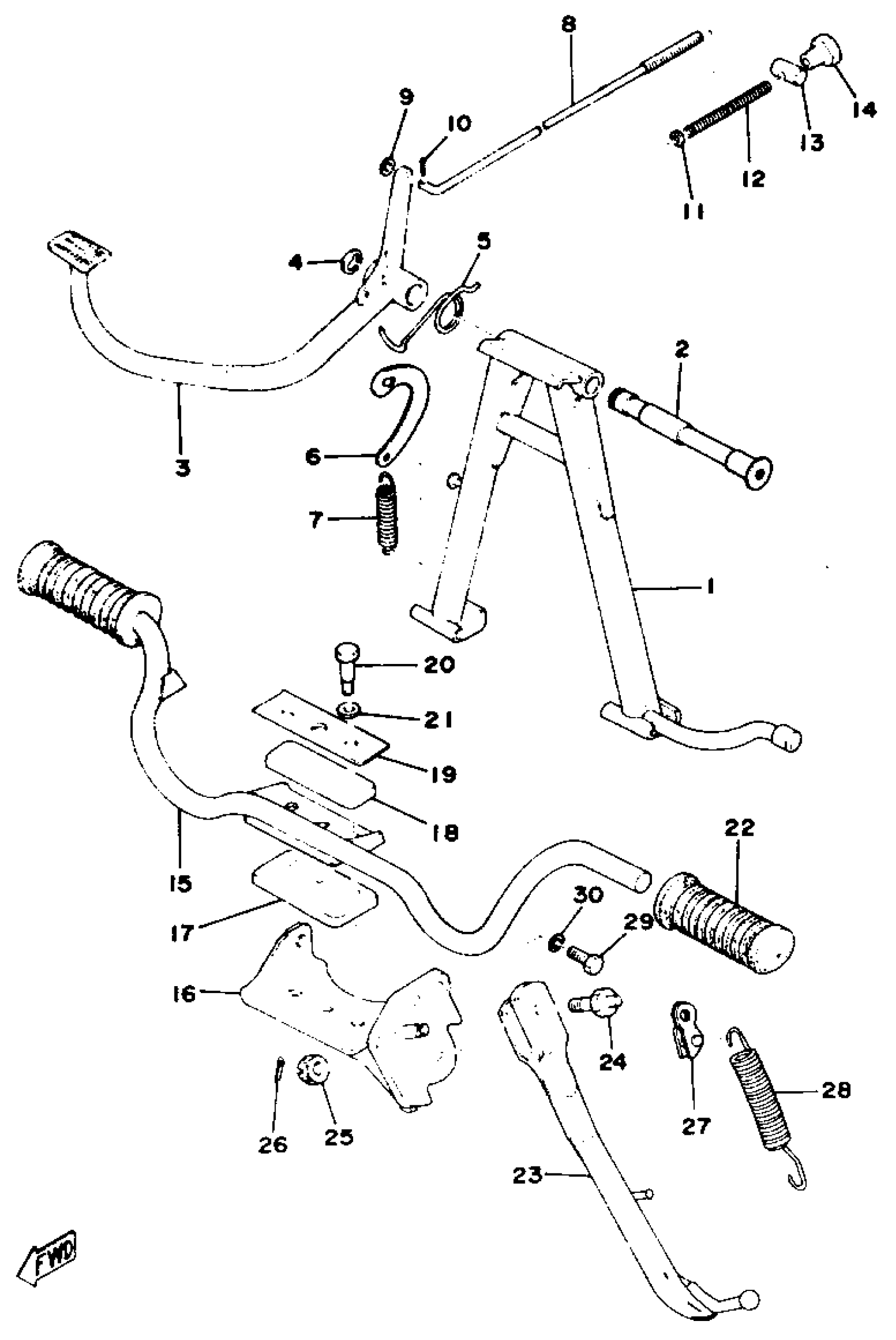

Yamaha RD125C (RD125) 1976 STAND FOOTREST BRAKE PEDAL Diagram

#

Description
Price

1

STAND, MAIN

(307-27111-00-00)

Unavailable

2

SHAFT, MAIN STAND

(122-27112-00-00)

Unavailable

3

PEDAL, BRAKE

(1E7-27211-00-93)

Unavailable

4

CIRCLIP (122)

93430-12008-00

$8.49

5

SPRING 1832721600

90508-32056-00

$7.49

6

LINK, MAIN STAND

(307-27115-00-00)

Unavailable

7

SPRING, TENSION

(90506-29054-00)

Unavailable

8

ROD, BRAKE

(307-27231-00-00)

Unavailable

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

PIN, COTTER

91490-20025-00

$1.99

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

SPRING, (180-27236-00)

90501-10245-00

$8.49

13

PIN 1562723700

90249-12008-00

$8.49

14

NUT (25K)

90179-06411-00

$8.49

15

FOOTREST 1

(396-27411-01-00)

Unavailable

16

BRACKET, FOOTREST 1

(396-27412-01-00)

Unavailable

17

DAMPER, FOOTREST 2

(132-27424-00-00)

Unavailable

18

DAMPER, FOOTREST

(132-27414-00-00)

Unavailable

19

WASHER, FOOTREST

(132-27417-00-00)

Unavailable

20

BOLT 132274160000

90109-08193-00

Unavailable

21

WASHER, PLATE

92990-10600-00

Unavailable

22

COVER,FOOTREST

307-27413-00-00

Unavailable

23

STAND, SIDE

(507-27311-00-00)

Unavailable

24

BOLT

90109-10399-00

Unavailable

25

NUT,CASTLE

90171-10049-00

Unavailable

26

PIN, COTTER

91490-20025-00

$1.99

27

LINK, SIDE STAND

(507-27315-01-00)

Unavailable

28

SPRING, TENSION

(90507-29022-00)

Unavailable

29

BOLT, HEXAGON

97013-08020-00

Unavailable

30

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
