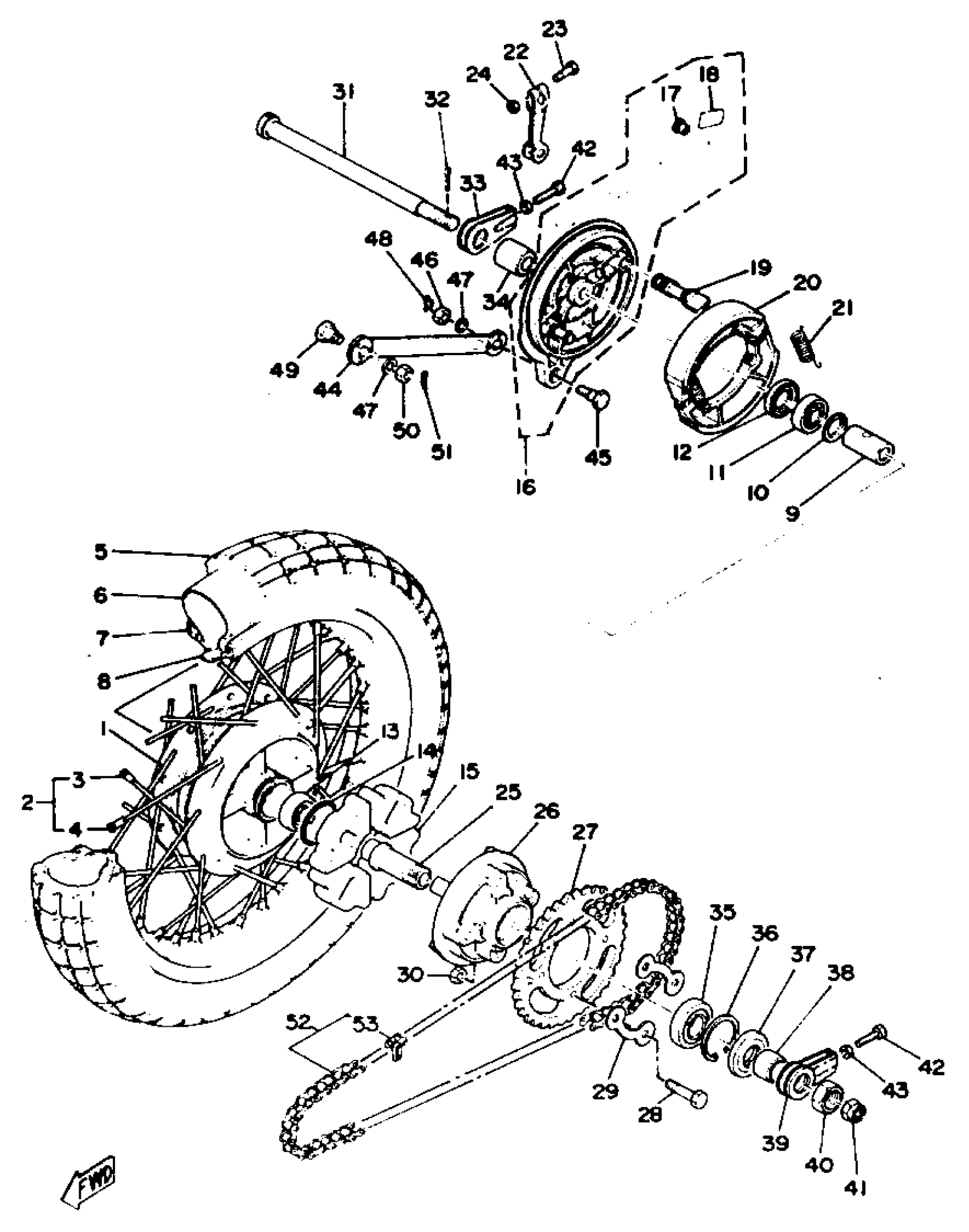

Yamaha RD125C (RD125) 1976 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

183-25311-00-00

Unavailable

2

SPOKE SET, REAR

183-25304-01-00

Unavailable

3

SPOKE SET, INNER 2

(183-25396-90-00)

Unavailable

4

SPOKE SET, OUTER 2

(183-25397-90-00)

Unavailable

5

300X18 YOKO Y93C

(94130-18310-00)

Unavailable

6

TUBE (5H5)

94227-18195-00

$35.99

7

RIM 1.60X18

(94416-18018-00)

Unavailable

8

BAND, RIM (2J4)

94340-18086-00

$17.99

9

SPACER 136253170000

90560-15136-00

Unavailable

10

FLANGE, SPACER

146-25116-00-00

$8.99

11

BRG, R-B (7H4)

93306-20211-00

$25.99

12

OIL SEAL (22X35X5)

93104-22018-00

$11.49

13

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

14

O-RING (183)

93210-42101-00

Unavailable

15

DAMPER, CLUTCH

304-25364-01-00

$27.99

16

BRAKE SHOE PLT ASSEMBLY

(507-25320-10-00)

Unavailable

17

GROMMET (397)

90480-10068-00

Unavailable

18

LABEL, INDICATOR

(437-25134-00-00)

Unavailable

19

CAMSHAFT

(183-25351-00-00)

Unavailable

20

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

21

SPRING (5T9)

90506-17328-00

Unavailable

22

LEVER, CAMSHAFT

(307-25355-00-00)

Unavailable

23

BOLT, HEXAGON

97017-06025-00

Unavailable

24

NUT, HEXAGON

95380-06600-00

Unavailable

25

SHAFT, SPROCKET

183-25387-00-00

Unavailable

26

CLUTCH, HUB

58K-25366-00-00

Unavailable

27

SPROCKET, DRVN 37T

183-25437-20-00

Unavailable

27

SPROCKET, DRIVN 38T

183-25438-10-33

Unavailable

27

SPROCKET, DRIVN 39T

183-25439-20-00

Unavailable

28

BOLT(1AJ)

90101-08672-00

Unavailable

29

WASHER

4AW-25412-00-00

Unavailable

30

NUT(3KX)

90179-08639-00

Unavailable

31

AXLE, WHEEL

382-25381-00-00

Unavailable

32

PIN, COTTER

91490-30030-00

Unavailable

33

PULLER, CHAIN

248-25388-00-00

Unavailable

34

COLLAR

90387-15425-00

Unavailable

35

BEARING(3BN)

93306-00438-00

Unavailable

36

CIRCLIP(5U8)

99009-42500-00

Unavailable

37

SEAL,OIL

93106-26005-00

Unavailable

38

COLLAR 183253860000

90387-20165-00

Unavailable

39

PULLER, CHAIN 1

214-25388-00-00

Unavailable

40

NUT, HEXAGON

90170-20167-00

Unavailable

41

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

42

BOLT

90101-08060-00

Unavailable

43

. NUT

95380-08700-00

Unavailable

44

BAR, TENSION

(307-25371-00-00)

Unavailable

45

BOLT 1092537300

90109-08063-00

Unavailable

46

. NUT

95380-08700-00

Unavailable

47

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

48

CLIP (156-83525-00)

90468-10050-00

Unavailable

49

BOLT (183-25378-00)

90109-08368-00

Unavailable

50

NUT(6L2)

95333-08600-00

Unavailable

51

PIN, COTTER

91490-20025-00

Unavailable

52

428 STD 110L

(94504-28110-00)

Unavailable

53

JOINT, CHAIN(3KX)

94681-64001-00

Unavailable
