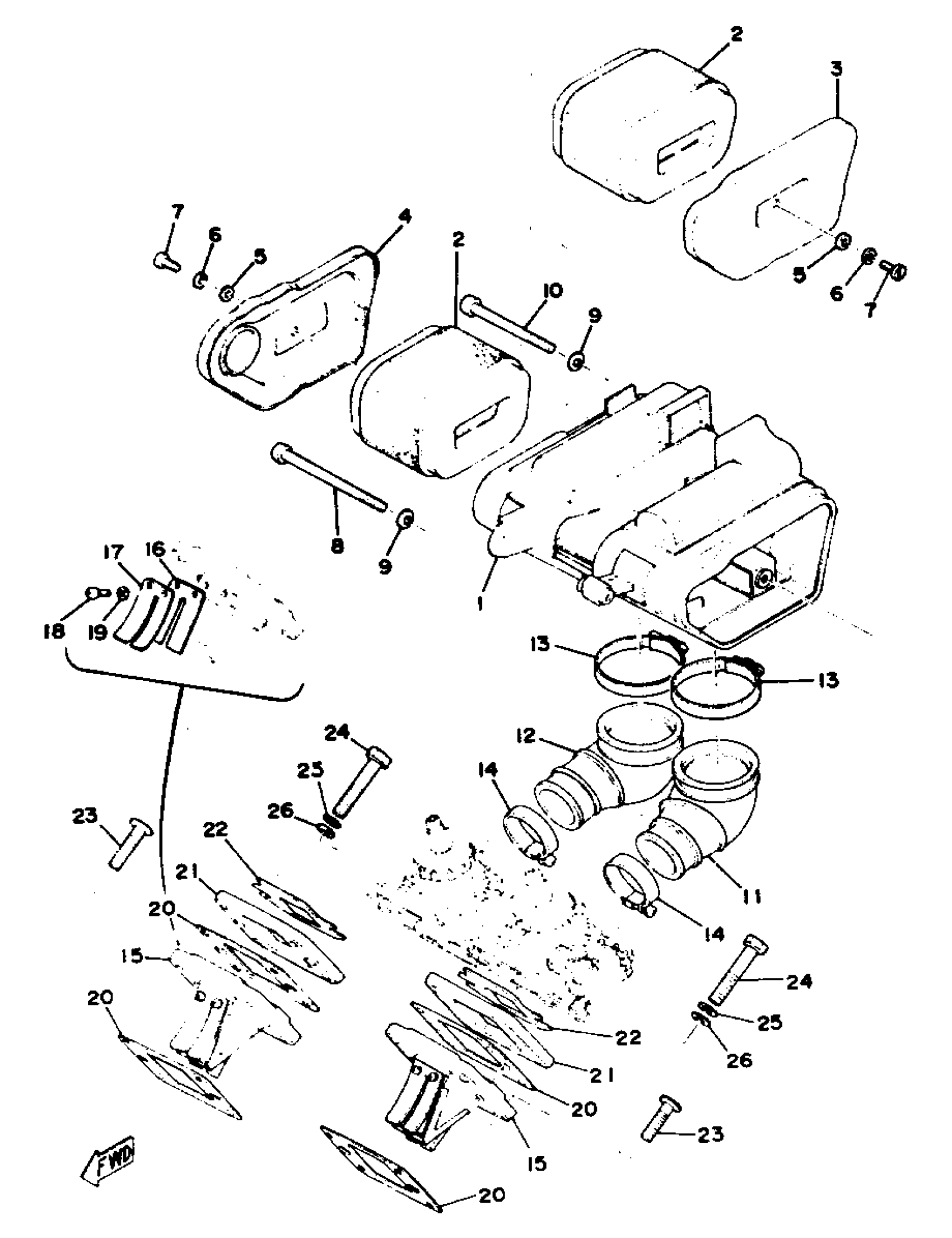

Yamaha RD125C (RD125) 1976 INTAKE Diagram

#

Description

Price

1

CASE, AIR CLEANER 1

(397-14411-00-00)

Unavailable

2

ELEMENT, AIR CLNR

396-14451-09-00

Unavailable

3

CAP, CLEANER CASE 1

(389-14412-01-00)

Unavailable

4

CAP, CLEANER CASE 2

(397-14422-00-00)

Unavailable

5

WASHER, PLATE (463)

90202-05057-00

Unavailable

6

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

7

SCREW PAN HEAD

98580-06010-00

$8.49

8

SCREW, PAN HEAD

98580-06580-00

Unavailable

9

WASHER, SPRING

92995-06100-00

Unavailable

10

SCREW PAN HEAD

98580-06570-00

$18.99

11

JOINT, AIR CLNR 1

389-14453-00-00

Unavailable

12

JOINT, AIR CLNR 2

389-14463-00-00

Unavailable

13

CLAMP HOSE 278144550000

90460-49058-00

$7.49

14

CLAMP, HOSE

90460-37130-00

Unavailable

15

REED VALVE ASSEMBLY

(389-13610-01-00)

Unavailable

16

. REED, VALVE

389-13613-00-00

Unavailable

17

STOPPER, REED VALVE

(389-13616-01-00)

Unavailable

18

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

19

WASHER, SPRING

92990-03100-00

Unavailable

20

GASKET,VALVE SEAT

389-13621-09-00

Unavailable

21

MANIFOLD, INTAKE

389-13555-00-00

Unavailable

22

GASKET, VALVE SEAT

389-13622-01-00

Unavailable

23

SCREW, FLAT

98707-06025-00

Unavailable

24

BOLT,SOCKET

91317-08040-00

Unavailable

25

WASHER(JN5)

92907-08100-00

Unavailable

26

WASHER(6TC)

92907-08200-00

Unavailable
