1976 Yamaha RD125 (RD125C) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1976 Yamaha RD125 (RD125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

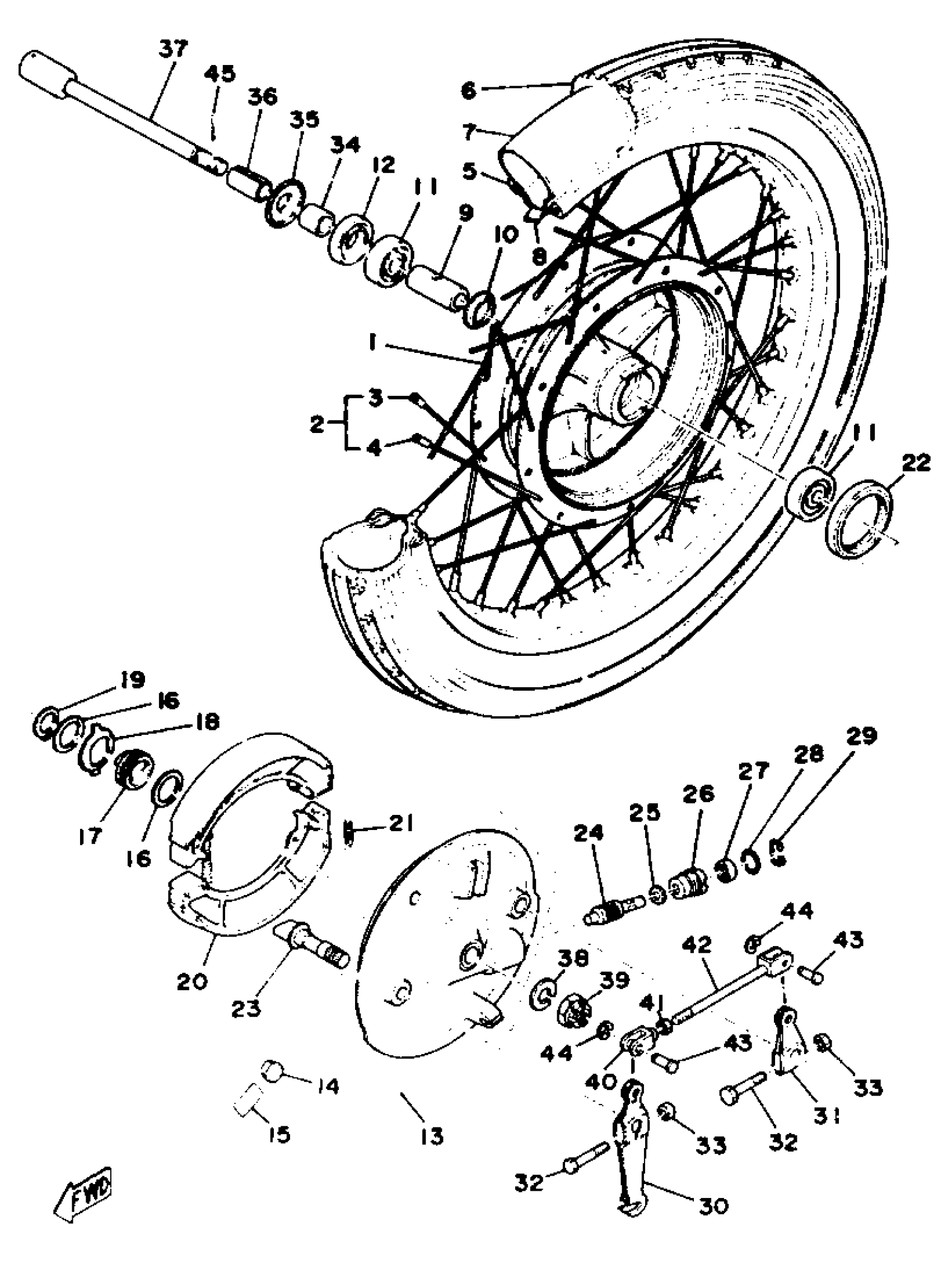

1976 Yamaha RD125 (RD125C) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(307-25111-00-00)

1
Out of stock

2

SPOKE SET, FRONT

(307-25104-00-00)

1
Out of stock

3

SPOKE SET, INNER 1

(307-25196-90-00)

1
Out of stock

4

SPOKE SET, OUTER 1

(307-25197-90-00)

1
Out of stock

5

RIM 1.40X18

(94414-18095-00)

1
Out of stock

6

275X18 YOKO Y506

(94127-18309-00)

1
Out of stock

7

TUBE

(94227-18010-00)

1
Out of stock

8

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

9

SPACER

90560-12138-00

—

$12.83

In stock

10

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

11

BEARING

93306-30102-00

1
Out of stock

12

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

13

BRAKE SHOE PLT ASSEMBLY

(507-25120-10-00)

1
Out of stock

14

GROMMET (397)

90480-10068-00

1

$6.77

In stock

15

LABEL, INDICATOR

(437-25134-00-00)

1
Out of stock

16

WASHER, PLATE 1832514700

90201-20269-00

—
Out of stock

17

GEAR, DRIVE

(307-25135-00-00)

1
Out of stock

18

CLUTCH, METER

183-25149-00-00

—
Out of stock

19

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

20

BRAKE SHOE SET

21L-W2535-00-00

1
Out of stock

21

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

22

SEAL,OIL

93105-47007-00

—
Out of stock

23

CAMSHAFT

(183-25351-00-00)

1
Out of stock

24

GEAR, METER

(307-25138-00-00)

1
Out of stock

25

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

26

BUSHING

109-25136-00-00

—

$8.78

In stock

27

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

28

O-RING (26H)

93210-14579-00

—

$5.69

In stock

29

RING, STOP

102-25137-00-00

—
Out of stock

30

LEVER, CAMSHAFT 1

(307-25155-00-00)

1
Out of stock

31

LEVER, CAMSHAFT 2

(307-25156-00-00)

1
Out of stock

32

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

33

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

34

COLLAR 1832518300

90387-12095-00

—

$4.63

In stock

35

COVER, HUB DUST

2K5-25118-00-00

—
Out of stock

36

COLLAR

90387-12099-00

1
Out of stock

37

AXLE, WHEEL

(382-25181-01-00)

1
Out of stock

38

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

39

NUT CASTLE(481)

90171-12005-00

—

$7.35

In stock

40

END, ROD 1

152-25163-00-00

1
Out of stock

41

NUT(650)

95380-06700-00

—

$6.17

In stock

42

ROD, CONNECTING

(307-25161-00-00)

1
Out of stock

43

PIN, SPEC'L SHAPE

90249-06095-00

1
Out of stock

44

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

45

PIN, COTTER

91490-30030-00

—

$7.15

In stock
