1976 Yamaha RD125 (RD125C) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1976 Yamaha RD125 (RD125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

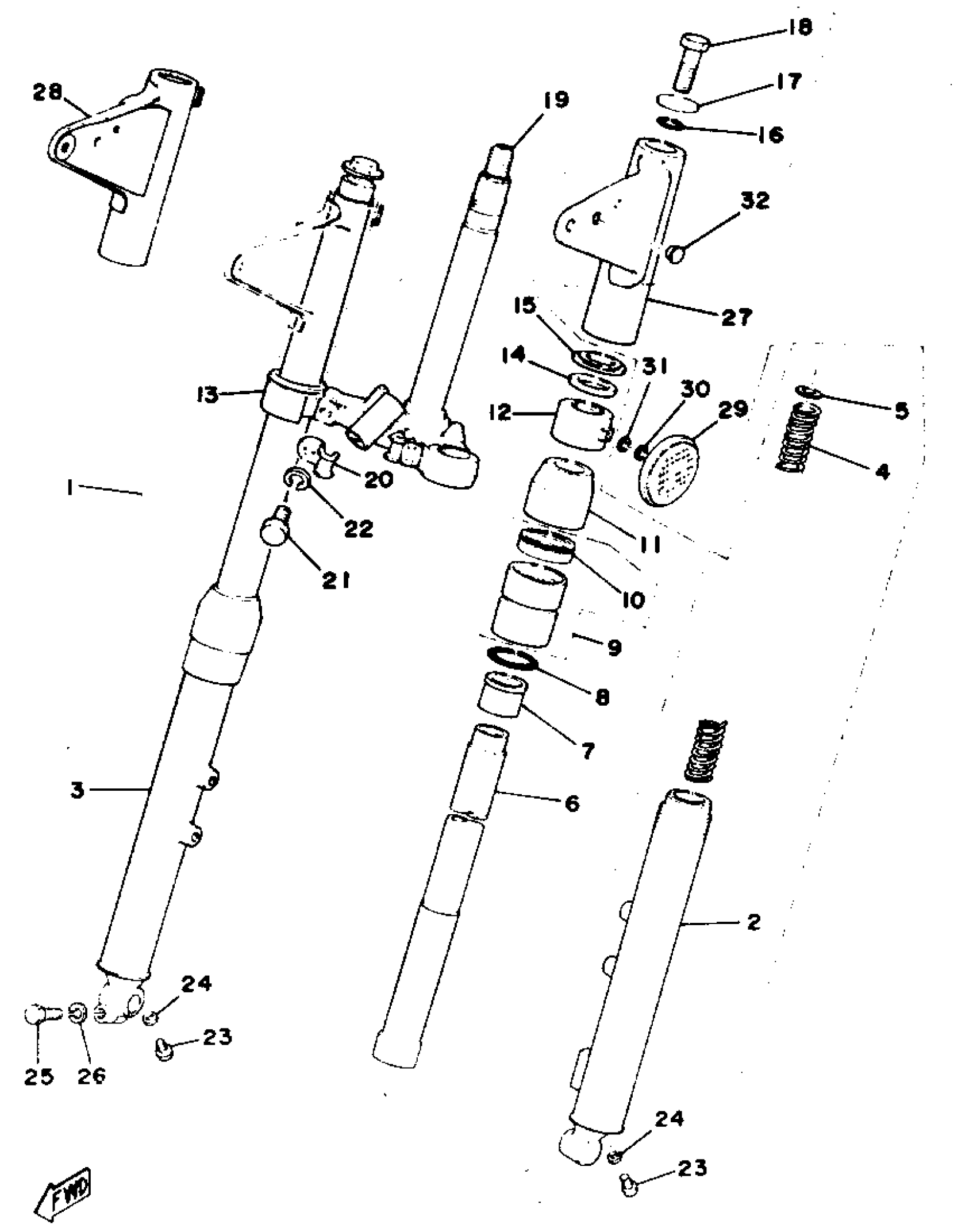

1976 Yamaha RD125 (RD125C) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(396-23101-00-00)

1
Out of stock

2

TUBE, OUTER 1

(396-23126-00-35)

1
Out of stock

3

TUBE, OUTER 2

(307-23136-00-35)

1
Out of stock

4

SPRING, FRONT FORK

(307-23141-00-00)

1
Out of stock

5

WASHER, SPRING UPR

(252-23149-00-00)

1
Out of stock

6

TUBE, INNER 1

(252-23124-00-00)

1
Out of stock

7

METAL, SLIDE 1

(164-23125-00-00)

1
Out of stock

8

O-RING

(164-23147-00-00)

1
Out of stock

9

OUTER NUT

(307-23150-01-00)

1
Out of stock

10

. OIL SEAL

164-23145-01-00

1
Out of stock

11

SEAL, DUST

(252-23144-00-00)

1
Out of stock

12

COVER, OUTER 1

(307-23122-00-93)

1
Out of stock

13

COVER, OUTER 2

(307-23132-00-93)

1
Out of stock

14

PACKING(LAMP STAY)

164-23163-00-00

1

$6.46

In stock

15

GUIDE, COVER LOWER

(252-23116-00-00)

1
Out of stock

16

GASKET

307-23114-00-00

—
Out of stock

17

WASHER, CAP

(183-23112-00-00)

1
Out of stock

18

BOLT, CAP

(307-23111-00-00)

1
Out of stock

19

UNDER BRACKET

(307-23340-00-33)

1
Out of stock

20

HOLDER, CABLE 1

(183-23318-00-00)

1
Out of stock

21

BOLT 1

122-23346-02-00

—

$6.25

In stock

22

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

23

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

24

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

25

BOLT, WITH WASHER

(90119-08010-00)

1
Out of stock

26

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

27

COVER, UPPER 1

(507-23121-00-33)

1
Out of stock

28

COVER, UPPER 2

(507-23131-00-33)

1
Out of stock

29

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

30

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

31

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

32

PLUG, SPEC''L SHAPE

(90338-09060-00)

1
Out of stock
