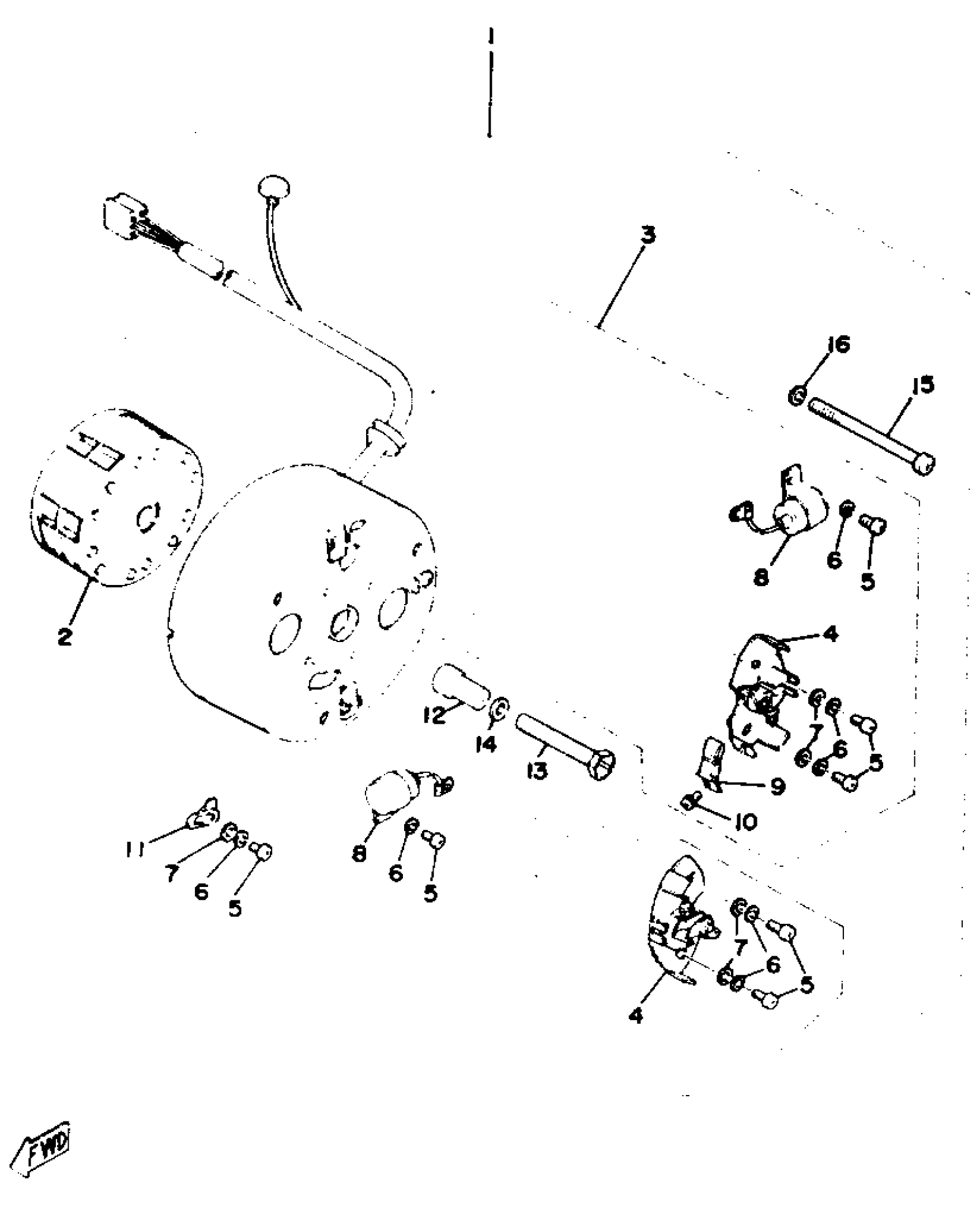

Yamaha RD125C (RD125) 1976 AC GENERATOR Diagram

#

Description
Price

1

AC MAGNET GEN ASSEMBLY

(307-81400-11-00)

Unavailable

2

ROTOR ASSEMBLY

(307-81450-10-00)

Unavailable

3

STATOR ASSEMBLY

(307-81410-11-00)

Unavailable

4

CONTACT BREAKER ASSY

183-81421-19-00

Unavailable

5

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

6

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

7

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

8

.. CONDENSER 1

183-81425-11-00

Unavailable

9

LUBRICATOR

(183-81431-10-00)

Unavailable

10

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

11

PLATE, TIMING

(183-81432-10-00)

Unavailable

12

CAM

(183-81451-13-00)

Unavailable

13

. SCREW, HEXAGON

90143-07022-00

Unavailable

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

SCREW PAN HEAD

98580-06575-00

$12.49

16

WASHER, SPRING

92995-06100-00

Unavailable
