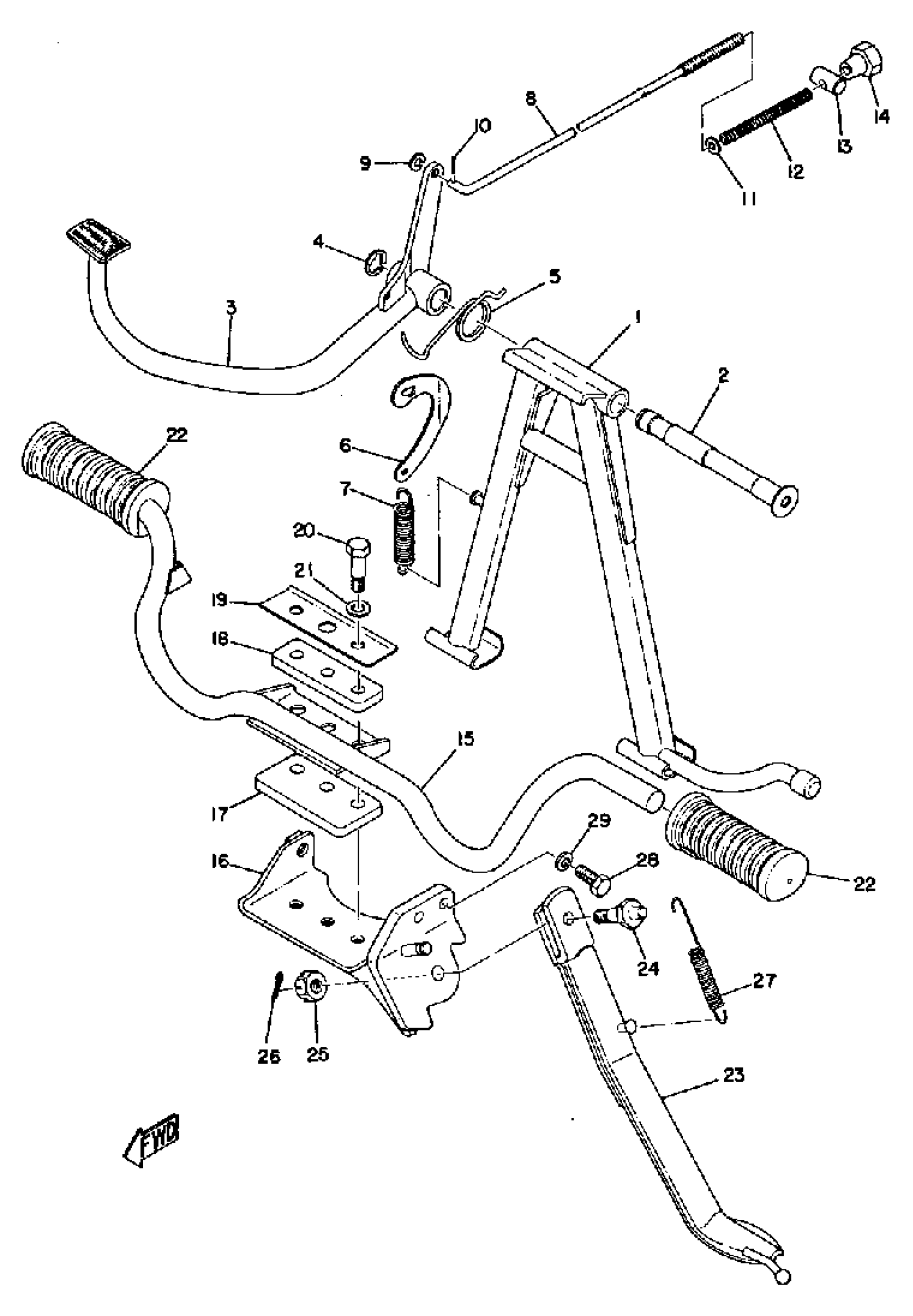

Yamaha RD125B (RD125) 1975 STAND FOOTREST BRAKE PEDAL Diagram

#

Description
Price

1

STAND, MAIN

(307-27111-00-00)

Unavailable

2

SHAFT, MAIN STAND

(122-27112-00-00)

Unavailable

3

PEDAL, BRAKE

(1E7-27211-00-93)

Unavailable

4

CIRCLIP (122)

93430-12008-00

$8.49

5

SPRING 1832721600

90508-32056-00

$7.49

6

LINK, MAIN STAND

(307-27115-00-00)

Unavailable

7

SPRING, TENSION

(90506-29054-00)

Unavailable

8

ROD, BRAKE

(307-27231-00-00)

Unavailable

9

WASHER, PLATE (371)

90201-06431-00

$5.60

10

PIN, COTTER

91490-20025-00

$1.99

11

WASHER, PLATE (371)

90201-06431-00

$5.60

12

SPRING, (180-27236-00)

90501-10245-00

$8.49

13

PIN 1562723700

90249-12008-00

$8.49

14

NUT (25K)

90179-06411-00

$8.49

15

FOOTREST 1

(396-27411-01-00)

Unavailable

16

BRACKET, FOOTREST 1

(396-27412-01-00)

Unavailable

17

DAMPER, FOOTREST 2

(132-27424-00-00)

Unavailable

18

DAMPER, FOOTREST

(132-27414-00-00)

Unavailable

19

WASHER, FOOTREST

(132-27417-00-00)

Unavailable

20

BOLT 132274160000

90109-08193-00

Unavailable

21

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

22

COVER,FOOTREST

307-27413-00-00

Unavailable

23

STAND, SIDE

(307-27311-20-33)

Unavailable

24

BOLT

90109-10399-00

Unavailable

25

NUT, CASTLE

95307-10900-00

Unavailable

26

PIN, COTTER

91490-20025-00

$1.99

27

SPRING TENSION 146273160000

90506-29052-00

Unavailable

28

BOLT, HEXAGON

97013-08020-00

Unavailable

29

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
