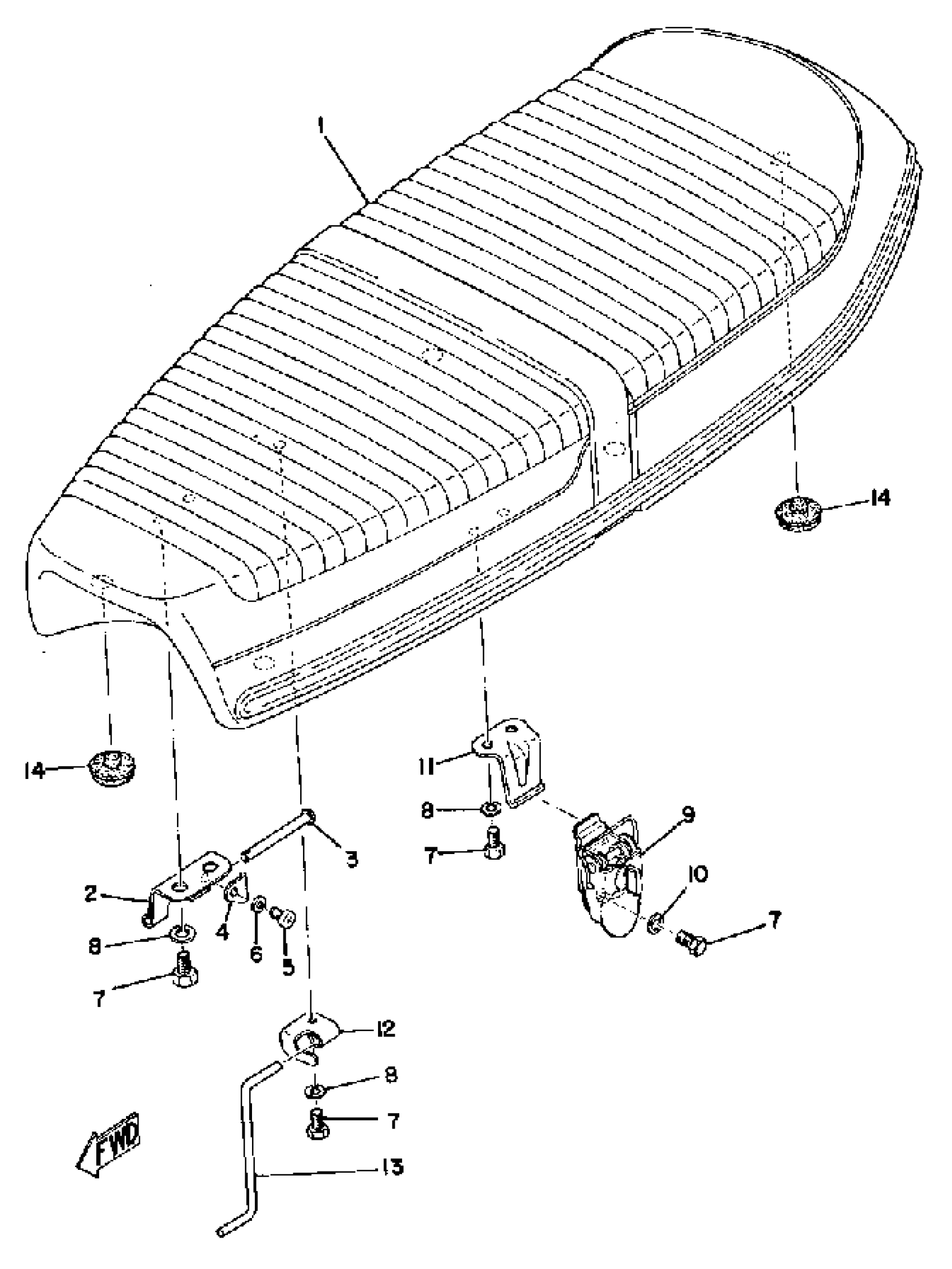

Yamaha RD125B (RD125) 1975 SEAT Diagram
#
Description
Price
1
DOUBLE SEAT ASSEMBLY
(398-24730-02-00)
Unavailable
1
COVER, DOUBLE SEAT
(398-24731-00-00)
Unavailable
2
HINGE, SEAT
389-24726-00-33
Unavailable
4
COVER, TAIL
389-24756-00-00
Unavailable
6
WASHER, SPRING
92995-06100-00
Unavailable
8
WASHER, SPRING
92995-06100-00
Unavailable
9
SEAT LOCK ASSEMBLY
526-24705-00-00
Unavailable
11
BRACKET, SEAT
278-24728-00-00
Unavailable
12
BRACKET, SEAT
(278-24748-00-00)
Unavailable
13
STOPPER
(337-24768-00-00)
Unavailable
