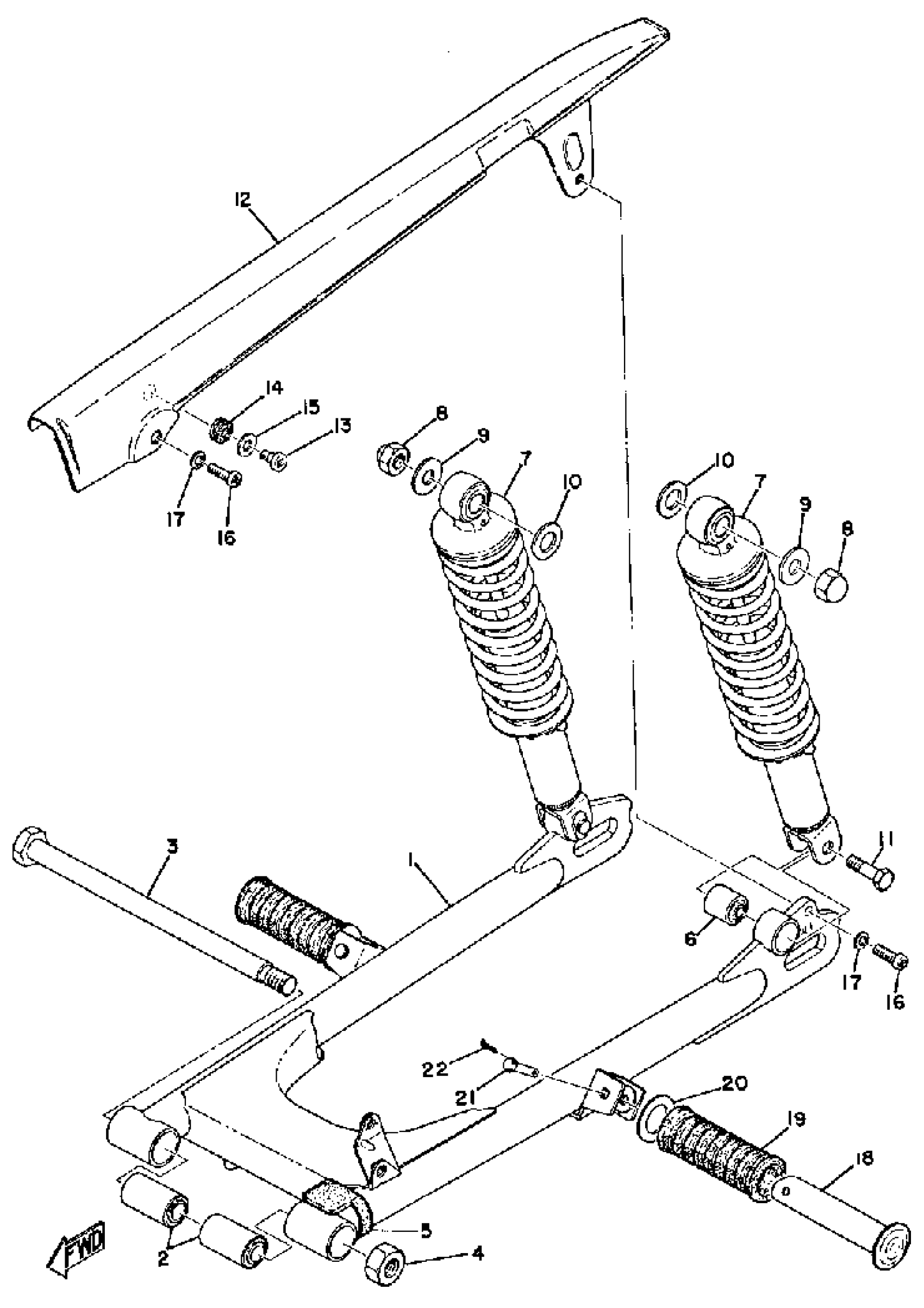

Yamaha RD125B (RD125) 1975 REAR ARM REAR CUSHION CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

(507-22110-00-33)

Unavailable

2

BUSHING,REAR ARM

307-22123-00-00

$20.99

3

SHAFT, PIVOT

(307-22141-10-00)

Unavailable

4

NUT, HEXAGON 98801-12200

90170-12175-00

$9.49

5

SEAL, GUARD

(173-22151-00-00)

Unavailable

6

BUSHING, REAR CUSHION

164-22216-00-00

$13.49

7

SHK/ABS ASSEMBLY, REAR

(396-22210-20-00)

Unavailable

8

NUT, CROWN (650)

95380-10800-00

Unavailable

9

WASHER, PLATE(3BM)

90201-105R9-00

$9.49

10

WASHER, PLATE (3X3)

90201-15797-00

$9.49

11

BOLT, DOME HEAD

(90106-08027-00)

Unavailable

12

CASE, CHAIN

(307-22311-00-93)

Unavailable

13

SCREW, SPEC''L SHAPE

(90149-06012-00)

Unavailable

14

DAMPER, CHAIN CASE

(183-22332-01-00)

Unavailable

15

WASHER, PLATE

(90201-07079-00)

Unavailable

16

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

19

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

20

WASHER, PLATE (888)

90201-20279-00

Unavailable

21

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

22

PIN, COTTER

91490-16020-00

Unavailable
