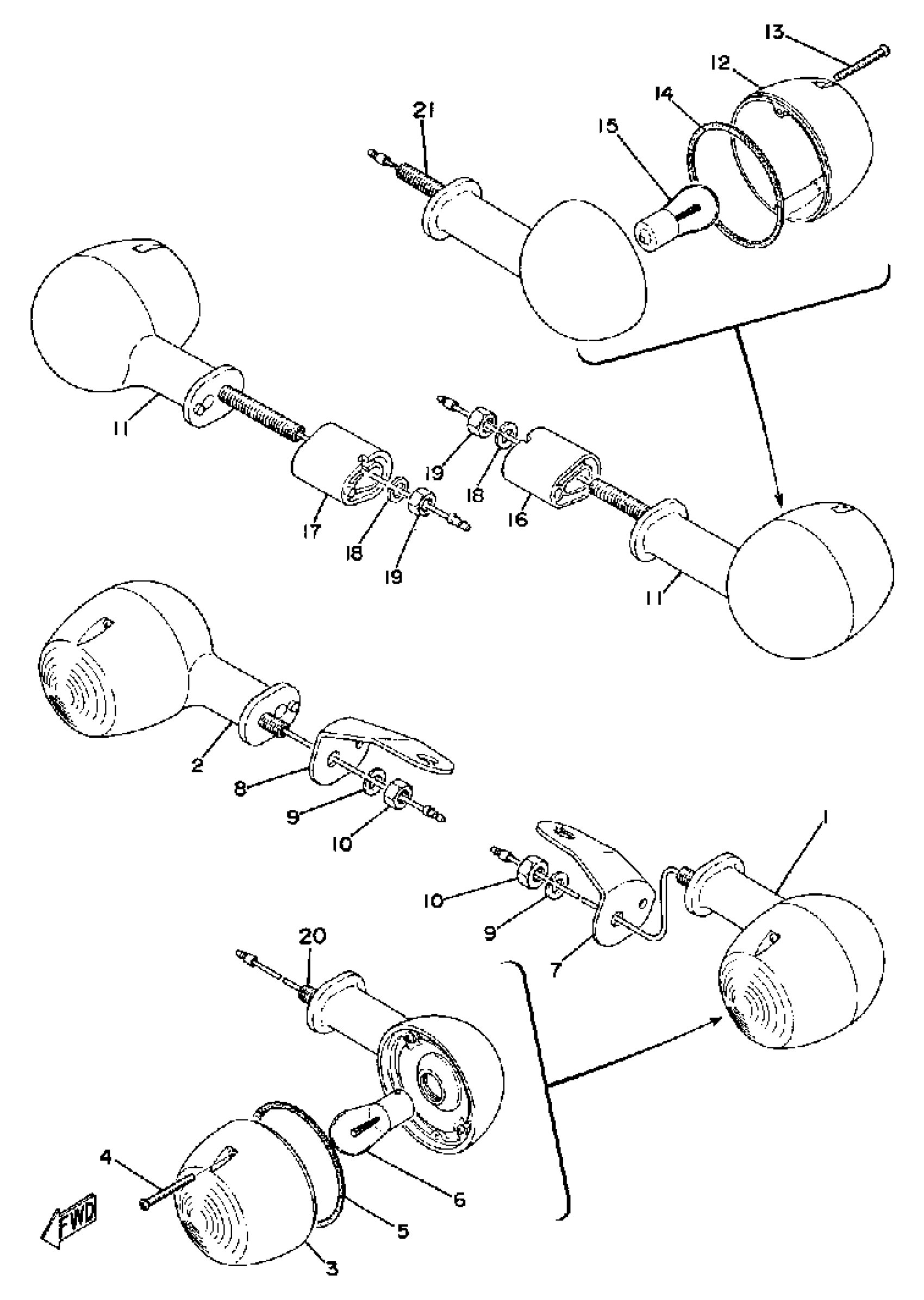

Yamaha RD125B (RD125) 1975 FLASHER LAMP Diagram

#

Description
Price

1

FRT FLSHR LITE ASSEMBLY

(137-83310-72-93)

Unavailable

2

FRT FLSHR LITE ASSEMBLY

(137-83310-72-93)

Unavailable

3

LENS, FLASHER

183-83312-70-00

Unavailable

4

SCREW, LENS FITTING (3X32)

183-83333-71-00

$8.99

5

GASKET,FLASHER LANS

183-83313-70-00

Unavailable

6

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

7

STAY, FLASHER 1

(507-83318-00-00)

Unavailable

8

STAY, FLASHER 2

(507-83328-00-00)

Unavailable

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

NUT(6L2)

95333-08600-00

$2.49

11

R FLSHR LITE ASSEMBLY

(397-83330-70-93)

Unavailable

12

. LENS, REAR RED FLASHER

211-83332-75-00

Unavailable

13

SCREW, LENS FITTING (3X32)

183-83333-71-00

$8.99

14

GASKET,FLASHER LANS

183-83313-70-00

Unavailable

15

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

16

COLLAR, FLASHER 1

260-83316-30-00

Unavailable

17

COLLAR, FLASHER 2

260-83326-30-00

Unavailable

18

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

19

NUT(6L2)

95333-08600-00

$2.49

20

. BOLT, STUD

360-83367-09-00

Unavailable

21

. BOLT, STUD

341-83367-09-00

Unavailable
