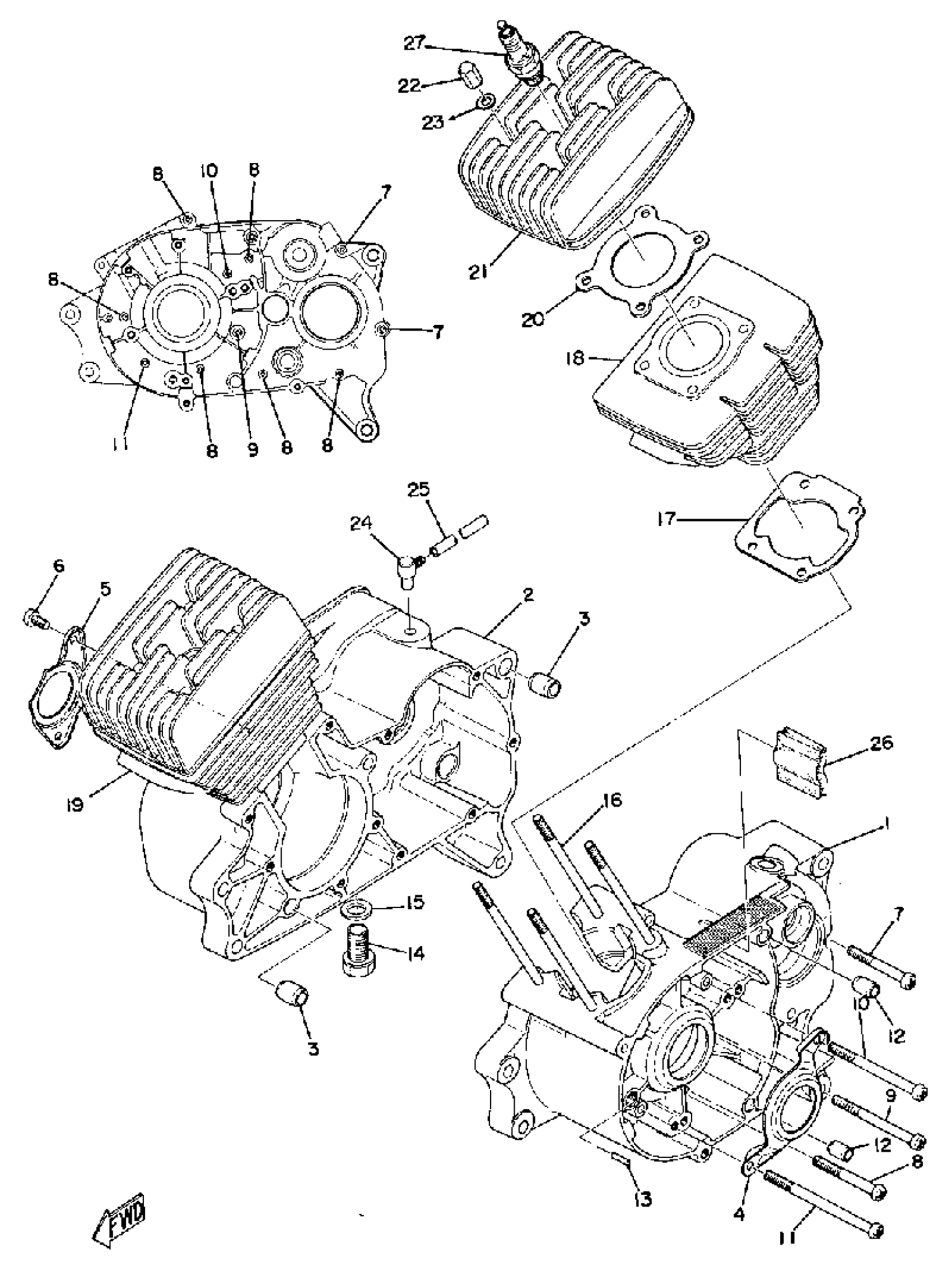

Yamaha RD125B (RD125) 1975 CRANKCASE CYLINDER Diagram

#

Description
Price

1

CRANKCASE 1

(389-15111-00-00)

Unavailable

2

CRANKCASE 2

(389-15121-00-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

HOLDER

(389-15128-00-00)

Unavailable

5

HOLDER

(389-15118-00-00)

Unavailable

6

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

7

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

8

SCREW, BIND (JH1)

98580-06560-00

Unavailable

9

SCREW, PAN HEAD

98580-06580-00

Unavailable

10

SCREW, PAN HEAD

98507-06095-00

Unavailable

11

SCREW, PAN HEAD

(92501-06105-00)

Unavailable

12

PIN, DOWEL(3VD)

99530-10114-00

$2.55

13

PIN, DOWEL

93603-14026-00

$8.49

14

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

15

GASKET (3JD1)

90430-12207-00

$7.99

16

BOLT, STUD 1221136100

90116-06100-00

Unavailable

17

GASKET, CYLINDER

396-11351-10-00

Unavailable

18

CYLINDER 1

(396-11311-03-00)

Unavailable

19

CYLINDER 2

(396-11321-03-00)

Unavailable

20

GASKET, CYLINDER HEAD 1

183-11181-00-00

Unavailable

21

HEAD, CYLINDER 1

(396-11111-01-00)

Unavailable

22

NUT CAP 126111716000

90176-06002-00

Unavailable

23

WASHER, PLATE (371)

90201-06431-00

Unavailable

24

BREATHER

583-15371-00-00

Unavailable

25

HOSE(7EG)

90446-07241-00

Unavailable

26

GROMMET

(241-15357-01-00)

Unavailable

27

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

Unavailable
