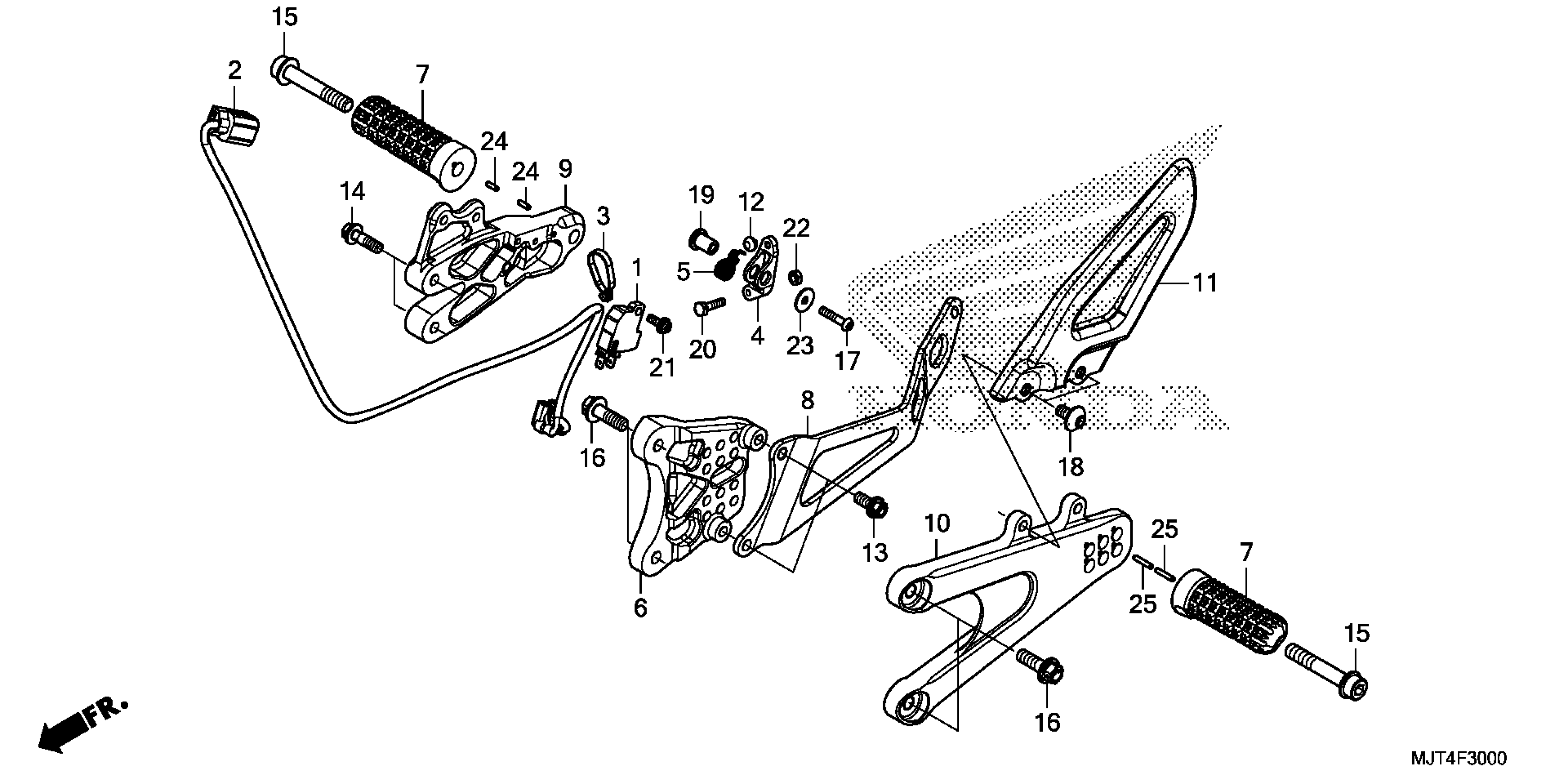

Honda RC213VSAC (16) MOTORCYCLE, JPN, VIN# JH2SC751-GK000001 STEP Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

SUB-WIRE, RR. STOP SWITCH

35351-MJT-E00

$69.82

BAND (BLACK 3.5X140)

35701-MG9-950

$1.89

LEVER, RR. STOP SWITCH

46503-MJT-E00

$491.44

SPRING, RR. STOP SWITCH LEVER

46504-MJT-E00

$8.10

HOLDER, R. STEP

50600-MJT-E00

$477.38

ARM, STEP

50610-MJT-E00

$567.84

STAY, HEAT PROTECTOR (LOWER)

50639-MJT-E00

$96.43

HOLDER, R. RR. STEP

50650-MJT-E00

$432.05

HOLDER, L. STEP

50700-MJT-E00

$425.90

GUARD, L. STEP *TCLEAR* (PAINT) (CLEAR)

50725-MJT-E00ZA

$619.10

RUBBER, FUEL LID STOPPER

60107-752-000

$3.10

BOLT, FLANGE (6X14) (SH)

90124-MJT-E00

$89.72

BOLT, FLANGE (6X20) (SH)

90127-MJT-E00

$96.77

BOLT, SOCKET (8X48)

90135-MJT-E00

$165.59

BOLT, FLANGE (7X22) (SH)

90143-MJT-E00

$106.82

BOLT, SOCKET (4X20)

90158-MJT-E00

$56.15

BOLT, SOCKET (6X12)

90161-MJT-E00

$88.16

COLLAR, STOP SWITCH LEVER

90517-MJT-E00

$26.02

BOLT. HEX. (4X16)

92101-04016-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, HEX. (4MM)

94001-04070-0S

$1.49

WASHER, PLAIN (4MM)

94103-04000

$1.49

ROLLER (2.5X7.8)

96220-25078

$1.49

ROLLER (2.5X13.8)

96220-25138

$1.49
