Description

Price

1

RUBBER, CUSHION

17622-GB7-900

$4.58

2

TAILLIGHT UNIT, AND LICENSE

33701-MJT-A01

$758.49

3

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$12.18

3

REFLECTOR, RR. REFLEX This part replaces 33741-148-872.

33741-HB9-641

$12.18

4

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.92

5

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.79

6

CUSHION, OIL TANK (NOT AVAILABLE)

55101-GZ9-000

Unavailable

7

COVER, LICENSE LIGHT TCLEAR (CLEAR)

80100-MJT-A00ZA

$6,937.24

8

BRACKET, NUMBER PLATE

80117-MJT-A00

$1,263.76

9

PLATE, LICENSE LIGHT COVER (LOWER)

80118-MJT-A00

$298.24

10

LOUVER, LICENSE STAY TCLEAR (PAINT) (CLEAR)

80120-MJT-E00ZA

$1,880.88

11

STAY, LICENSE LIGHT

80122-MJT-E00

$280.79

12

FENDER C, RR. TCLEAR (PAINT) (CLEAR)

80131-MJT-E00ZA

$2,332.76

13

FENDER D, RR. (PAINT)

80141-MJT-E00

$744.93

14

STAY, RR. FENDER D

80146-MJT-E00

$270.34

15

STAY, R. REFLECTOR

84701-MJT-A00

$117.35

16

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$3.90

17

STAY, L. REFLECTOR

84706-MJT-A00

$113.93

18

SCREW, PAN

90106-MAV-000

$2.01

19

SCREW, TRUSS (4X10)

90111-MJT-E00

$5.22

20

BOLT, FLANGE (6X20) (SH)

90127-MJT-E00

$86.81

21

BOLT, SOCKET (4X10)

90160-MJT-E00

$11.94

22

BOLT, SOCKET (6X16)

90162-MJT-E00

$88.84

23

BOLT, SOCKET (6X26)

90163-MJT-E00

$117.53

24

NUT, CLIP (6MM)

90301-KBH-000

$6.01

25

NUT, SPRING (6MM)

90320-747-000

$2.16

26

PLUG, CONE TYPE

90899-422-610

$1.84

27

NUT, FLANGE (5MM)

94050-05070

$1.28

28

NUT, FLANGE (6MM)

94050-06070

$1.44

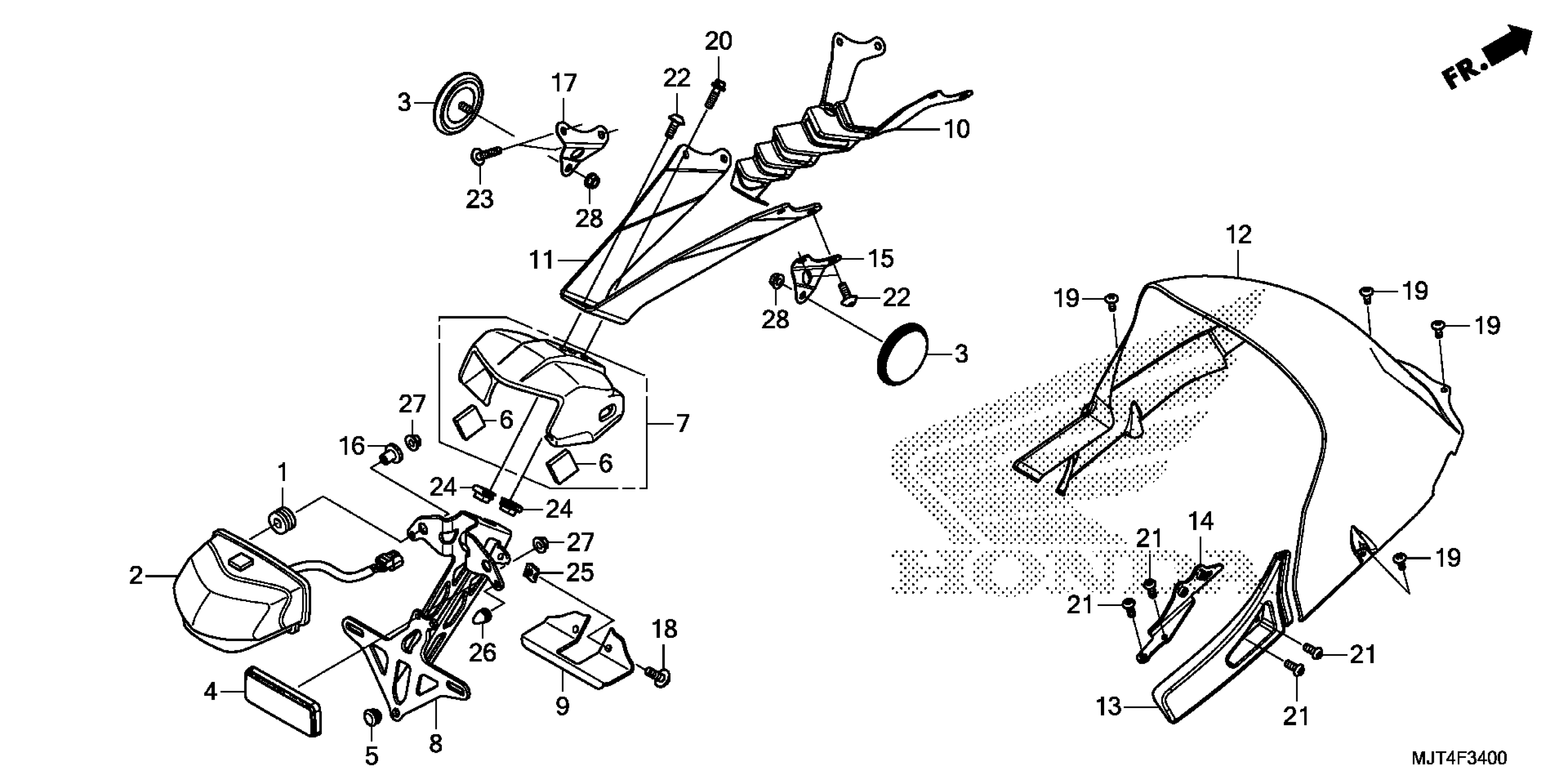

Honda RC213VSAC (16) MOTORCYCLE, JPN, VIN# JH2SC751-GK000001 REAR FENDER + LICENSE LIGHT Diagram
