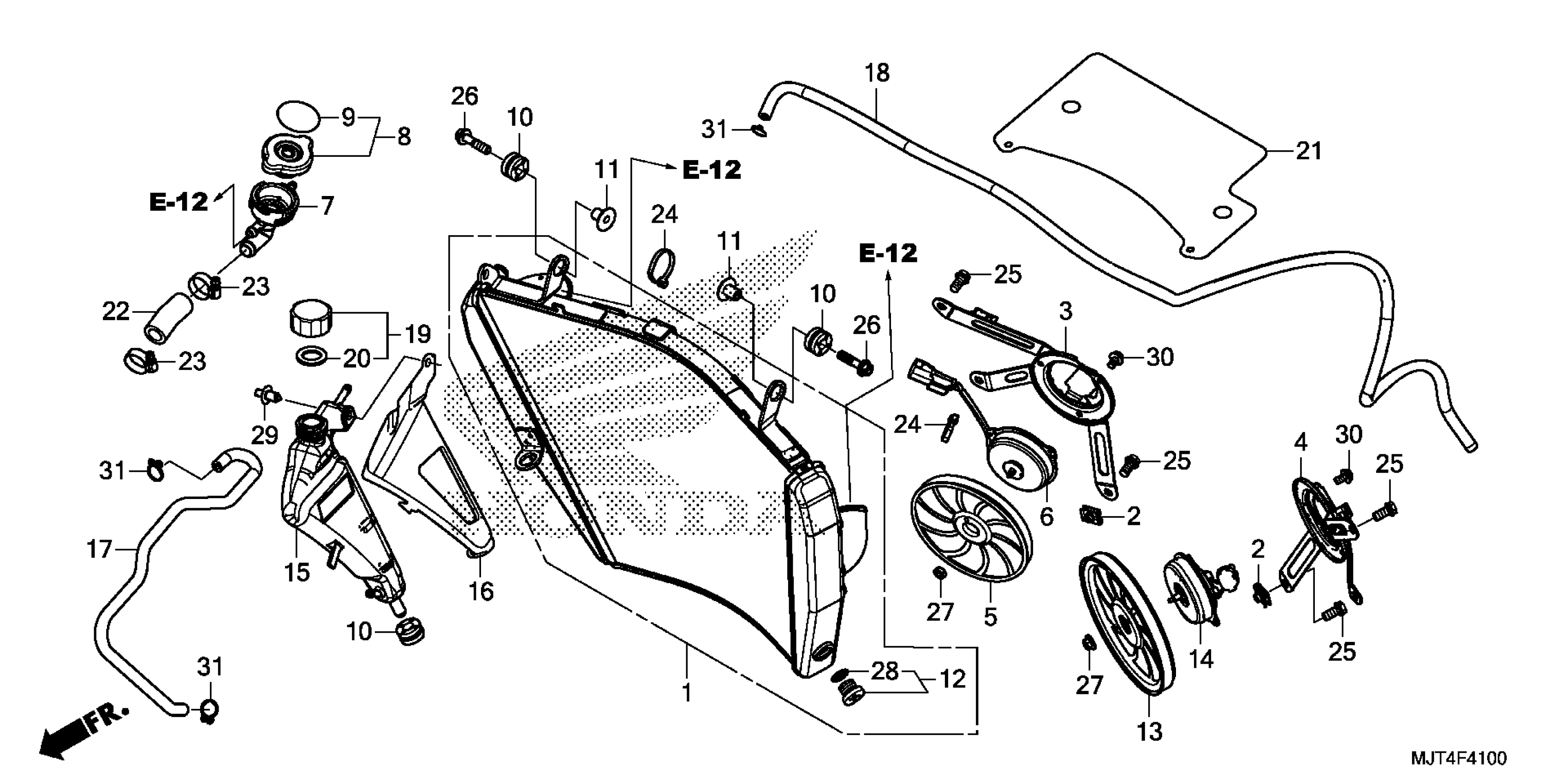

Honda RC213VSAC (16) MOTORCYCLE, JPN, VIN# JH2SC751-GK000001 RADIATOR Diagram

RADIATOR (TOYO)

19010-MJT-E01

$1,179.05

NUT, SETTING (6MM)

19014-KEA-003

$3.10

SHROUD, R.

19015-MJT-E01

$41.97

SHROUD, L.

19016-MJT-E01

$41.97

FAN, COOLING

19020-KVZ-631

$29.32

MOTOR ASSY., R. FAN

19030-MJT-E01

$223.93

NECK, FILLER

19035-MFL-003

$19.50

CAP, RADIATOR

19037-GEE-710

$30.28

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

PETCOCK ASSY., DRAIN

19070-MEC-003

$10.07

FAN, COOLING

19070-MFL-003

$33.85

MOTOR ASSY., FAN

19080-MFL-003

$196.46

TANK, RADIATOR RESERVE

19101-MJT-E00

$417.69

COVER, RESERVE TANK *TCLEAR* (PAINT) (CLEAR)

19105-MJT-E00ZA

$1,155.70

TUBE, RESERVE TANK

19103-MJT-E00

$46.49

TUBE, RESERVE TANK BREATHER

19104-MJT-E00

$17.59

CAP ASSY., RESERVE TANK

19105-MG8-000

$12.95

GASKET, RESERVE TANK

19107-MG8-000

$5.05

RUBBER, HEAT GUARD

19127-MJT-E00

$59.66

HOSE, FILLER NECK

19504-MJT-E00

$6.75

CLAMP A, WATER HOSE

19505-KS6-700

$11.06

BAND (BLACK 3.5X140)

35701-MG9-950

$1.89

BOLT (6X12)

90101-MEN-A60

$2.20

BOLT, FLANGE (6X25) (SH)

90129-MJT-E00

$101.41

NUT, FLANGE (3MM)

90315-MFL-003

$2.33

O-RING (9.8X1.9)

91353-MEC-003

$3.42

CLIP, COWL TOP *NH167L* (GRAPHITE BLACK)

91505-ST7-003ZA

$5.94

SCREW-WASHER (4X8)

93893-04008-07

$1.49

CLIP, TUBE (B10)

95002-02100

$1.90
