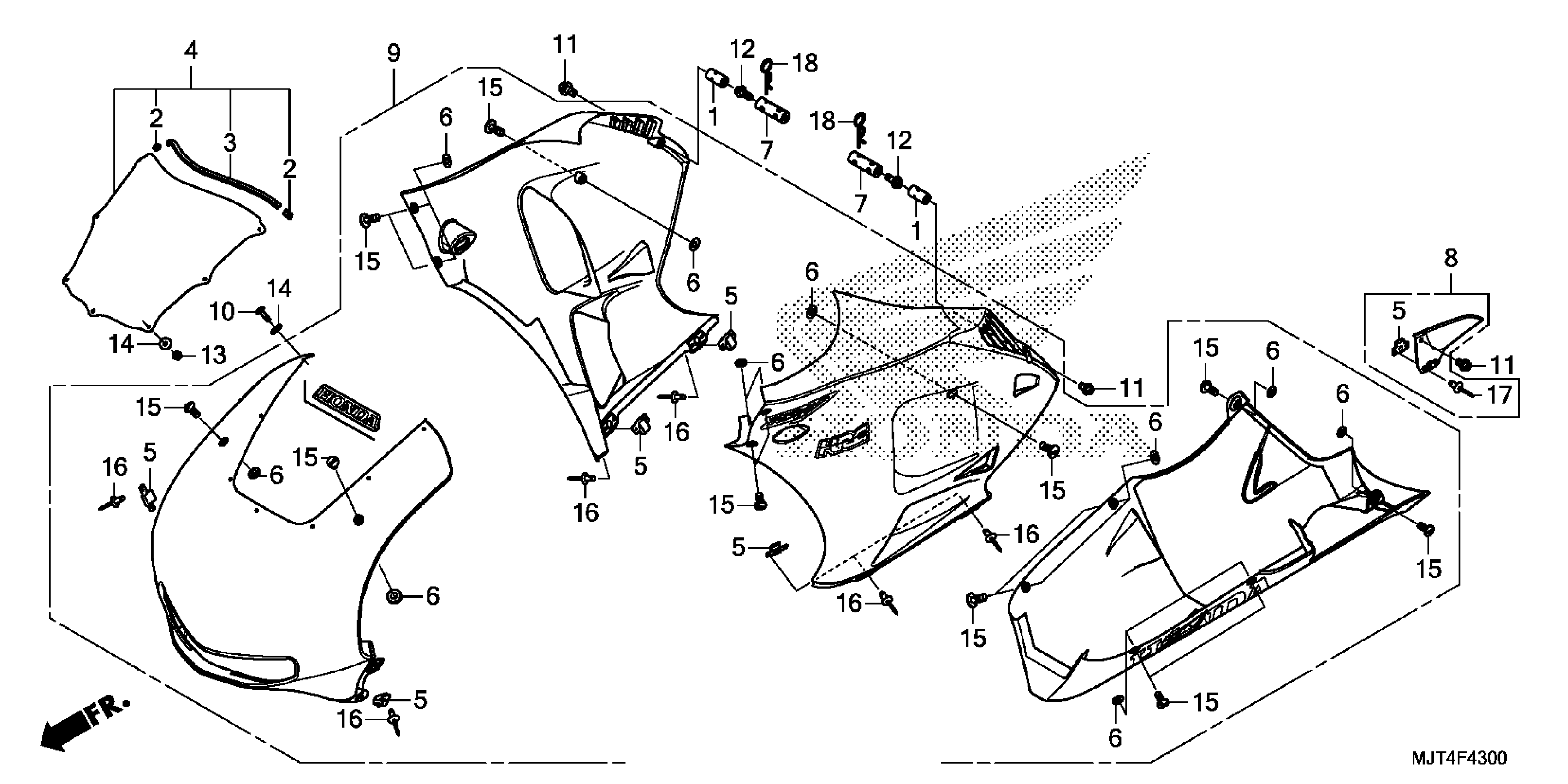

Honda RC213VSAC (16) MOTORCYCLE, JPN, VIN# JH2SC751-GK000001 FRONT COWL Diagram

NUT, COWL STAY

50803-MJT-E00

$125.84

CLIP, SCREEN MOLDING

64102-MJT-E00

$8.36

MOLDING, WINDSCREEN

64105-MJT-E00

$12.26

WINDSCREEN ASSY. (CLEAR)

64200-MJT-A00

$247.98

PLATE, RIVET

64508-MJT-E00

$18.02

RETAINER (6MM)

64509-MJT-E00

$7.72

COLLAR, COWL SIDE

64531-MJT-E00

$296.62

STAY, L. COWL (LOWER) *TCLEAR* (CLEAR)

64580-MJT-E00ZA

$708.23

COWL SET, FR. (TYPE1) (WL)(TRICOLOR)

64600-MJT-305ZA

$12,047.00

SCREW, TRUSS (3X10)

90120-MJT-E00

$1.49

BOLT, FLANGE (6X10) (SH)

90122-MJT-E00

$89.72

BOLT, FLANGE (6X14) (SH)

90124-MJT-E00

$89.72

NUT, U (3MM)

90325-MJT-E00

$6.18

WASHER, THRUST (3MM)

90505-MJT-E01

$1.49

STUD (6X10)

90651-MJT-E00

$39.34

RIVET, POP (3.2X6.4)

90851-MJT-E00

$1.49

RIVET (3.2X8)

90852-MJT-E00

$1.49

PIN, LOCK (16MM)

94252-16100

$1.49
