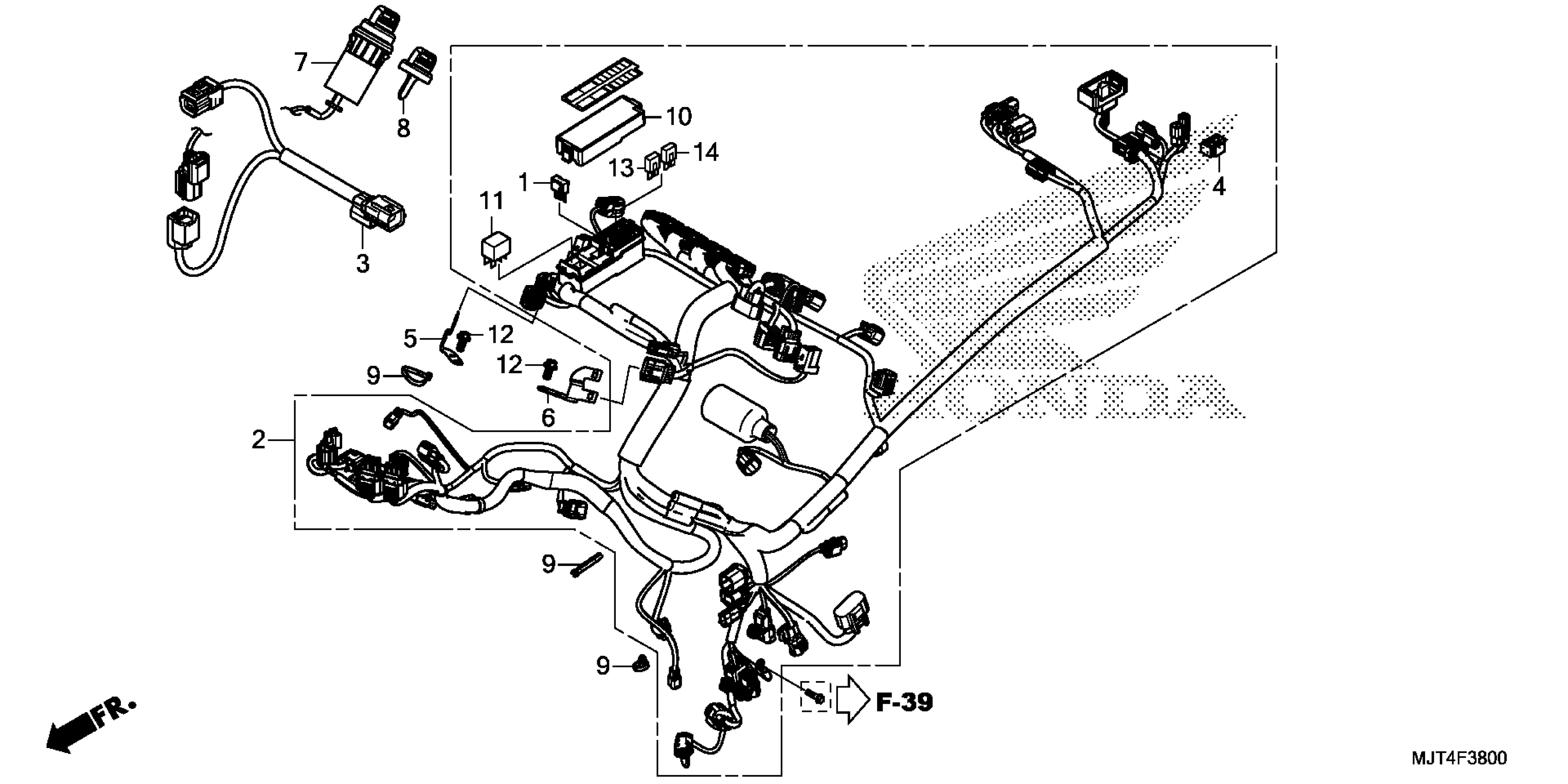

Honda RC213VS2AC (16) MOTORCYCLE, JPN, VIN# JH2SC755-GK000001 WIRE HARNESS Diagram

#

Description

Price

1

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.70

2

WIRE HARNESS

32100-MJT-A00

$1,636.80

3

SUB-HARNESS, MIDDLE

32107-MJT-A00

$1,118.75

4

SUSPENSION, CONNECTOR

32109-MJT-E00

$66.01

5

STAY, R. CONNECTOR

32140-MJT-E00

$72.26

6

STAY, L. CONNECTOR

32145-MJT-E00

$72.26

7

SWITCH ASSY., IGNITION

35100-MJT-A01

$184.84

8

KEY, BLANK (TYPE 1) (KEY NO. AXX / BXX)

35121-HF1-881

$8.61

8

KEY, BLANK (TYPE 2) (KEY NO. CXX / DXX)

35122-HF1-881

$8.61

9

BAND (BLACK 3.5X140)

35701-MG9-950

$1.81

10

COVER (UPPER)

38252-MFJ-D01

$10.09

11

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

$4.33

12

BOLT, FLANGE (6X12) (SH)

90123-MJT-E00

$79.32

13

FUSE, MINI (10A)

98200-41000

$1.20

14

FUSE, MINI (20A)

98200-42000

$1.10
