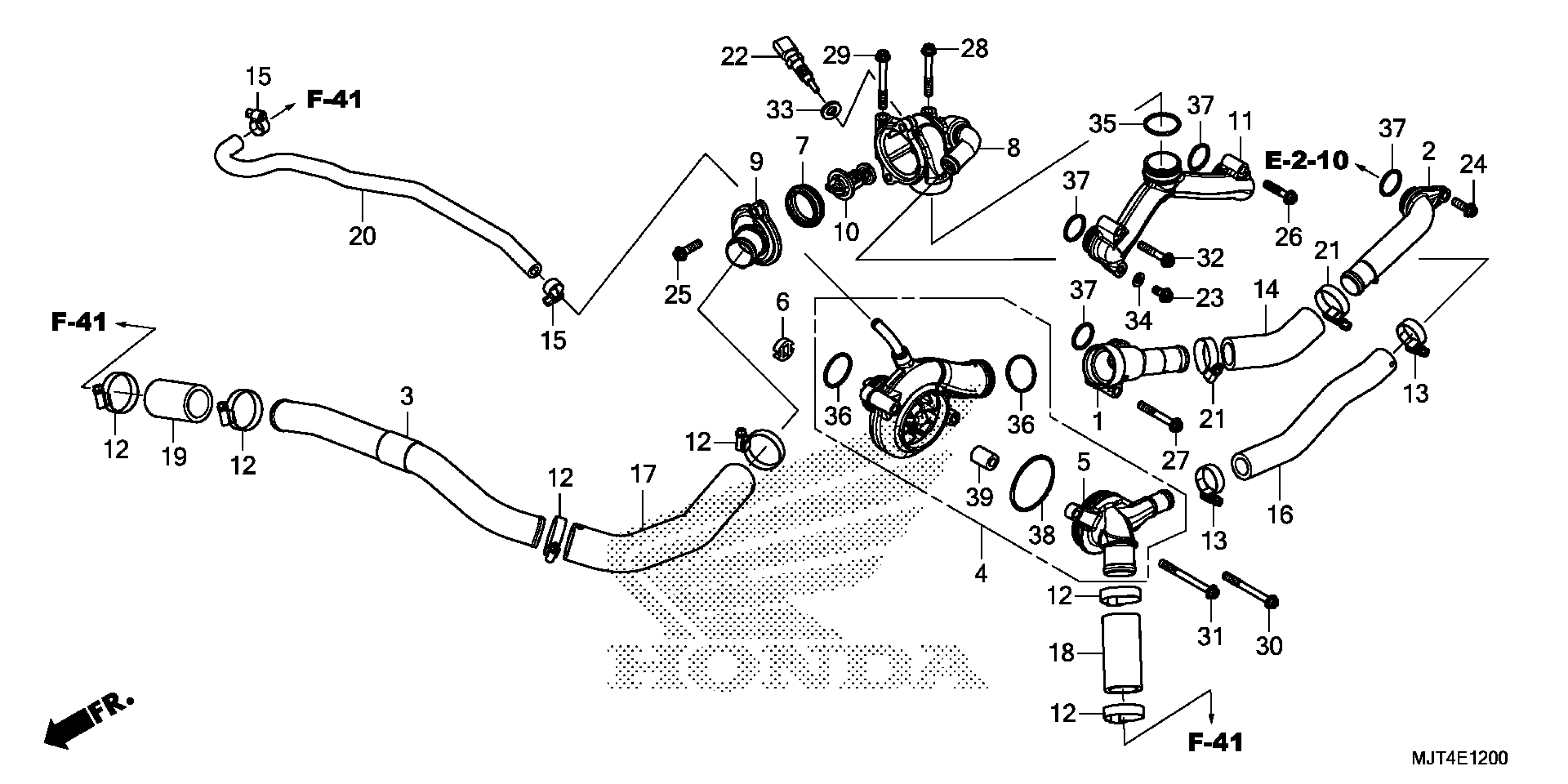

Honda RC213VS2AC (16) MOTORCYCLE, JPN, VIN# JH2SC755-GK000001 WATER PUMP Diagram

#

Description
Price

1

JOINT, FR. WATER

12511-MJT-E00

$2,279.59

2

JOINT, RR. WATER

12513-MJT-E00

$2,005.54

3

PIPE, RADIATOR

19060-MJT-E00

Unavailable

4

WATER PUMP ASSY.

19200-MJT-E00

$7,003.54

5

COVER, WATER PUMP

19221-MJT-E00

$4,255.04

6

COUPLING B, OLDHAM

19242-MJT-E00

$4,185.78

7

RUBBER, THERMOSTAT

19305-KV3-010

$5.80

8

CASE, THERMOSTAT

19310-MJT-E00

$3,325.66

9

COVER, THERMOSTAT

19315-MJT-E00

$2,180.15

10

THERMOSTAT

19320-MFJ-D01

$31.64

11

JOINT, WATER (FR/RR)

19502-MJT-E00

$2,549.90

12

CLAMP, WATER HOSE (35MM)

19504-MGP-000

$8.69

13

CLAMP A, WATER HOSE

19505-KS6-700

Unavailable

14

HOSE, WATER (FR/RR)

19505-MJT-E00

$53.07

15

CLAMP, RADIATOR HOSE

19507-MAT-000

$9.88

16

HOSE, BYPASS

19507-MJT-E00

$55.50

17

HOSE, RADIATOR (UPPER)

19511-MJT-E00

$97.43

18

HOSE, RADIATOR (LOWER)

19513-MJT-E00

$9.56

19

HOSE C, WATER

19514-MJT-E00

$9.01

20

HOSE, AIR BREATHER

19515-MJT-E00

$62.65

21

CLAMP, HOSE (22-29MM)

19517-ML7-691

$10.68

22

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$28.22

23

BOLT, FLANGE TORX (6X12)

90031-MJT-E00

$52.62

24

BOLT, FLANGE TORX (6X18)

90034-MJT-E00

$52.62

25

BOLT, FLANGE TORX (6X22)

90036-MJT-E00

$52.62

26

BOLT, FLANGE TORX (6X28)

90038-MJT-E00

$52.62

27

BOLT, FLANGE TORX (6X42)

90043-MJT-E00

$54.04

28

BOLT, FLANGE TORX (6X45)

90044-MJT-E00

$54.04

29

BOLT, FLANGE TORX (6X52)

90046-MJT-E00

$57.66

30

BOLT, FLANGE TORX (6X55)

90047-MJT-E00

$57.66

31

BOLT, FLANGE TORX (6X60)

90048-MJT-E00

$57.66

32

BOLT, FLANGE TORX (6X32)

90065-MJT-E00

$26.09

33

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.41

34

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

35

O-RING (27X2.0)

91301-028-000

$2.80

36

O-RING (27.9X1.8)

91301-PHM-003

$5.03

37

O-RING (20.6X1.9)

91304-GB0-910

$3.61

38

O-RING (47.5X2)

91311-KE8-000

$2.21

39

PIN, DOWEL (8X10)

94301-08100

$2.76
