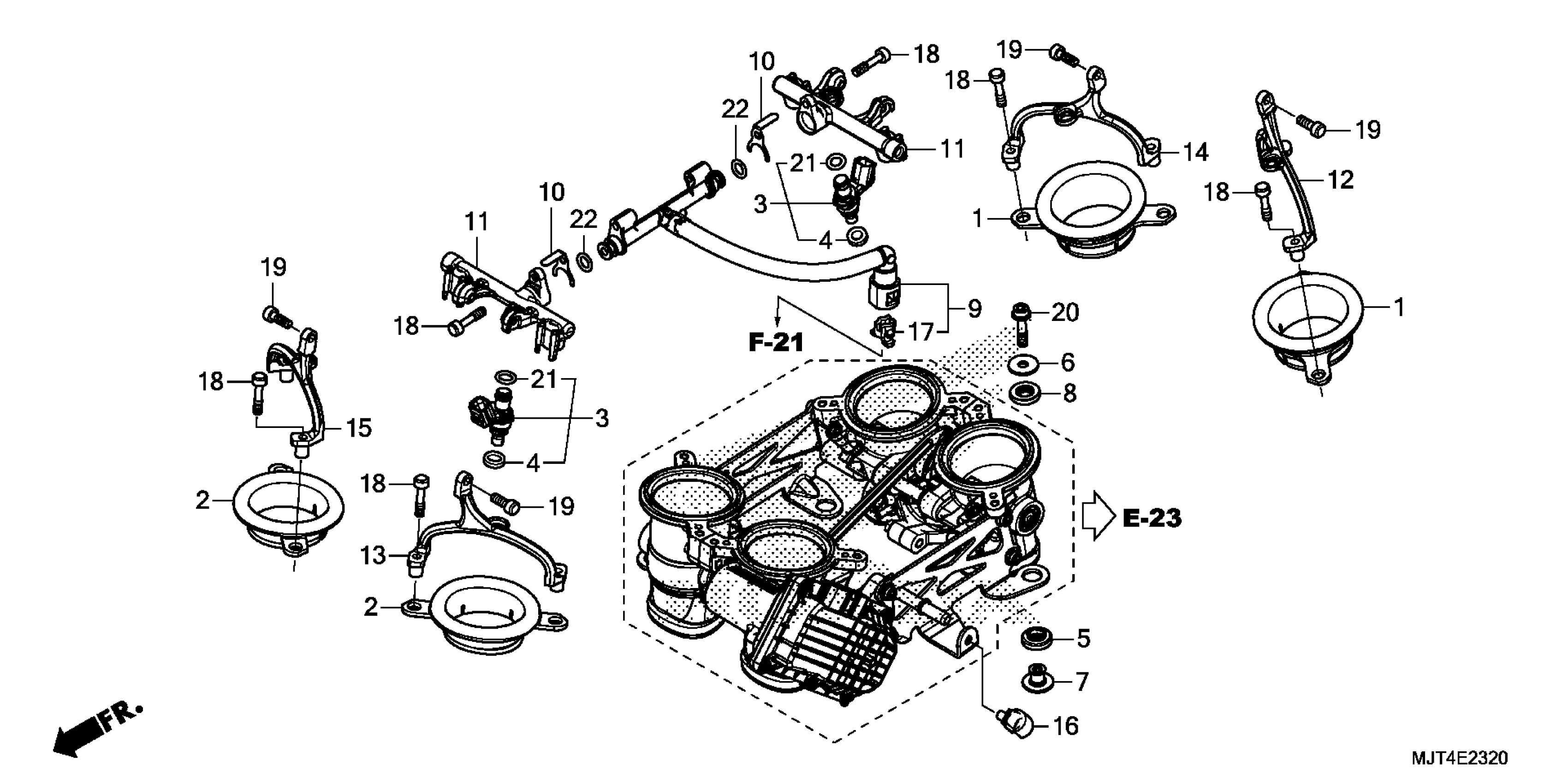

Honda RC213VS2AC (16) MOTORCYCLE, JPN, VIN# JH2SC755-GK000001 THROTTLE BODY (COMPONENT PARTS) Diagram

FUNNEL, RR. AIR

16141-MJT-E00

$856.61

FUNNEL, FR. AIR

16142-MJT-E00

$849.66

INJECTOR ASSY., FUEL (UPPER)

16460-MJT-E01

$132.92

RING, SEAL

16472-KPC-D50

$2.14

RUBBER A, MOUNTING

16481-MJT-E00

$9.46

WASHER, MOUNT

16482-MJT-E00

$36.72

COLLAR, MOUNTING

16483-MJT-E00

$100.59

RUBBER B, MOUNTING

16486-MJT-E00

$9.46

HOSE A, FUEL FEED

16527-MJT-E01

$1,436.20

WASHER, TONGUED

16631-MJT-E00

$60.38

PIPE, FUEL (UPPER)

16640-MJT-E00

$2,170.43

STAY, L. RR. INJECTOR (UPPER)

16671-MJT-E00

$436.92

STAY, L. FR. INJECTOR (UPPER)

16672-MJT-E00

$436.92

STAY, R. RR. INJECTOR (UPPER)

16673-MJT-E00

$436.92

STAY, R. FR. INJECTOR (UPPER)

16674-MJT-E00

$436.92

CLAMP B, FUEL TUBE

16896-ZY9-003

$2.78

RETAINER

17711-MGE-003

$6.34

BOLT, SOCKET (5X22)

90061-MJT-E00

$85.03

BOLT, SOCKET (5X14)

90064-MJT-E00

$35.57

BOLT, SOCKET (6X25)

90092-MJT-E00

$35.57

O-RING (6.3X2.2)

91301-GGL-J01

$10.46

O-RING (7.47X3.6)

91301-PLC-000

$3.11
