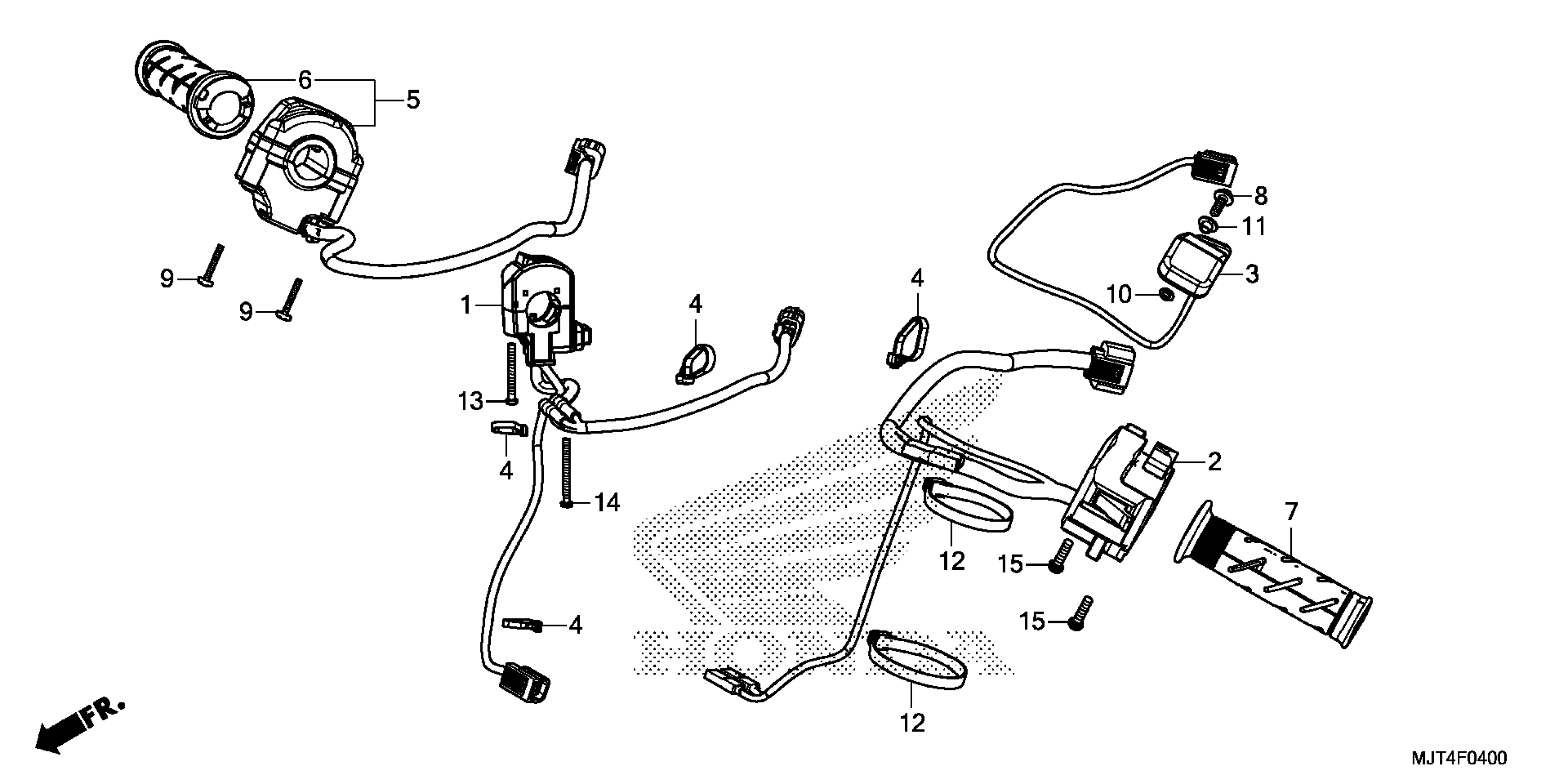

Honda RC213VS2AC (16) MOTORCYCLE, JPN, VIN# JH2SC755-GK000001 SWITCH Diagram

SWITCH ASSY., MAIN

35130-MJT-E01

$198.10

SWITCH ASSY., TURN SIGNAL

35200-MJT-E01

$209.69

SWITCH ASSY., MODE

35360-MJT-E01

$77.78

BAND (BLACK 3.5X140)

35701-MG9-950

$1.84

SENSOR ASSY., GRIP

37970-MJT-E01

$723.65

GRIP ASSY., THROTTLE

53140-MJT-E01

$436.38

GRIP, L. HANDLE This part replaces 53166-MGF-305.

53166-MY9-890

$16.22

GRIP, L. HANDLE This part replaces 53166-MY9-305.

53166-MY9-890

$16.22

GRIP, L. HANDLE

53166-MY9-890

$16.22

BOLT, SOCKET (5X14)

90153-MJT-E00

$96.54

SCREW, PAN (5X35)

90169-MJT-E00

$19.16

WASHER, THRUST (5MM)

90501-MJT-E00

$11.54

COLLAR, SWITCH

90519-MJT-E00

$25.53

BAND, TY-RAP (3.6X281)

91642-MJT-E00

$7.81

SCREW, PAN (4X32)

93500-04032-0G

$0.44

SCREW, PAN (4X45)

93500-04045-0G

$0.79

SCREW, PAN (5X20)

93500-05020-0G

$0.82
