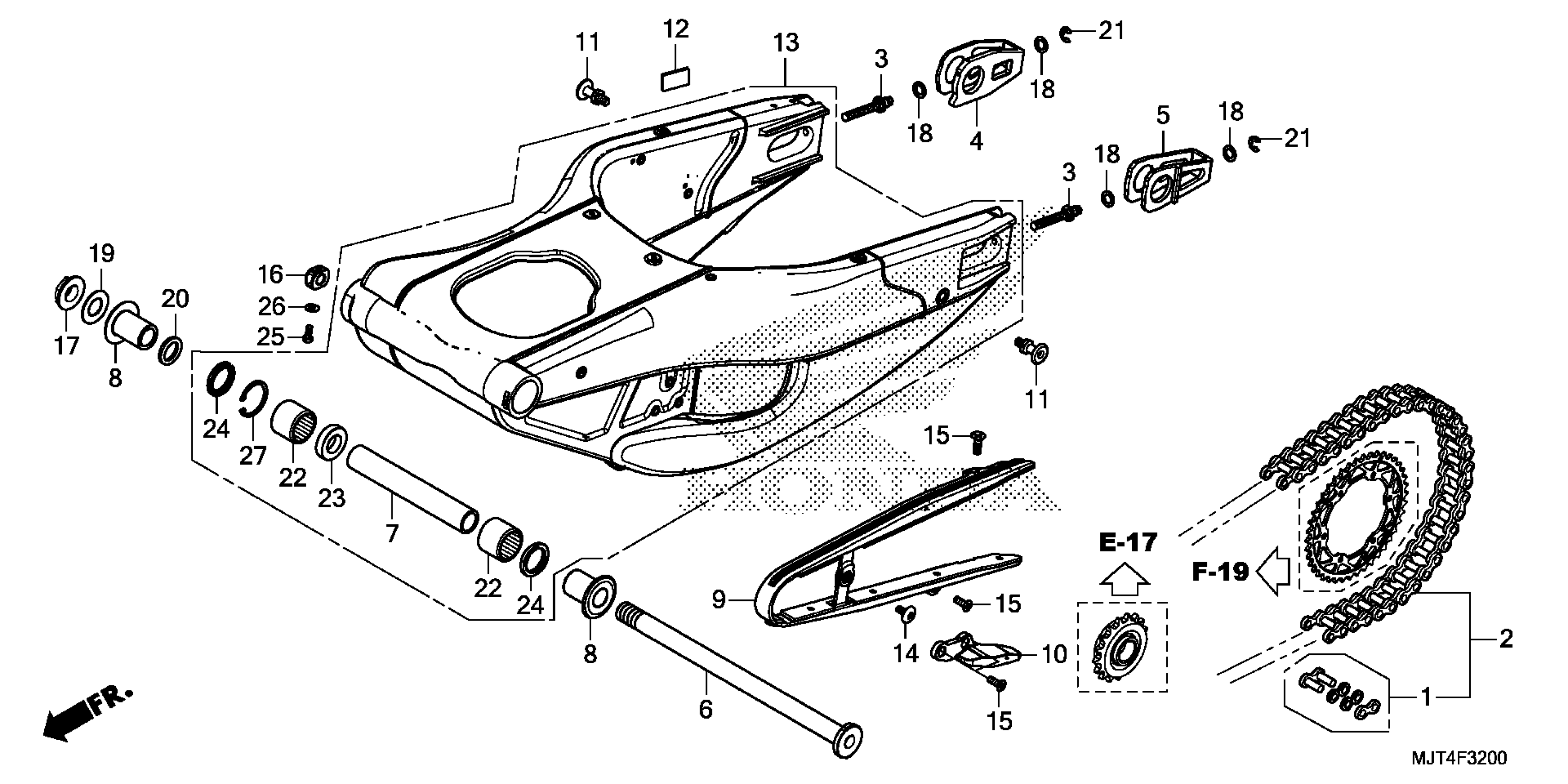

Honda RC213VS2AC (16) MOTORCYCLE, JPN, VIN# JH2SC755-GK000001 SWINGARM Diagram

#

Description
Price

1

MASTER LINK (RK)

40531-MJT-E02

$38.93

2

CHAIN, DRIVE (RKGB520RCV-130LJFZ) (RK) (STANDARD LINK 122L)

40540-MJT-E02

$632.46

3

BOLT, CHAIN ADJUSTING

40541-MJT-E00

$263.57

4

ADJUSTER, R. DRIVE CHAIN

40543-MJT-E00

$136.04

5

ADJUSTER, L. DRIVE CHAIN

40544-MJT-E00

$136.04

6

BOLT, SWINGARM PIVOT

52101-MJT-E01

$981.09

7

COLLAR, PIVOT DISTANCE

52141-MJT-E00

$80.15

8

COLLAR, PIVOT SIDE

52142-MJT-E00

$155.68

9

SLIDER, CHAIN

52170-MJT-E00

$453.69

10

SLIDER B, CHAIN

52171-MJT-E00

$44.01

11

BOLT, SWINGARM STAND

52181-MJT-E00

$355.25

12

PROTECTOR, SWINGARM

52191-MJT-E00

$7.12

13

SWINGARM SUB-ASSY.

52200-MJT-E00

$20,552.66

14

SCREW, SPECIAL (6X15)

90113-MJT-E00

$206.34

15

SCREW, FLAT (5X14)

90119-MJT-E00

$13.51

16

NUT C, SWINGARM

90304-MJT-E00

$149.32

17

NUT, SWINGARM PIVOT

90309-MJT-E00

$80.85

18

WASHER, CHAIN ADJUSTER

90508-MJT-E00

$203.87

19

WASHER (20X37X1.6)

90514-MJT-E00

$118.40

20

SHIM A, SWINGARM PIVOT (0.1)

90521-MJT-E00

$162.76

20

SHIM B, SWINGARM PIVOT (0.2)

90522-MJT-E00

$162.76

20

SHIM C, SWINGARM PIVOT (0.3)

90523-MJT-E00

$162.76

20

SHIM D, SWINGARM PIVOT (0.4)

90524-MJT-E00

$162.76

20

SHIM E, SWINGARM PIVOT (0.5)

90525-MJT-E00

$162.76

20

SHIM F, SWINGARM PIVOT (0.6)

90526-MJT-E00

$162.76

21

E-RING (8MM)

90601-148-000

$1.72

22

BEARING, NEEDLE (28X37X30)

91071-MJT-E01

$25.50

23

BEARING, RADIAL BALL (20X37X9)

91072-MR7-003

$16.53

24

DUST SEAL (28X37X4)

91202-MR7-003

$6.06

25

SCREW-WASHER (3X8)

93892-03008-00

$0.56

26

WASHER, PLAIN (3MM)

94101-03000

$0.60

27

CIRCLIP (INNER) (37MM)

94520-37000

$2.57
