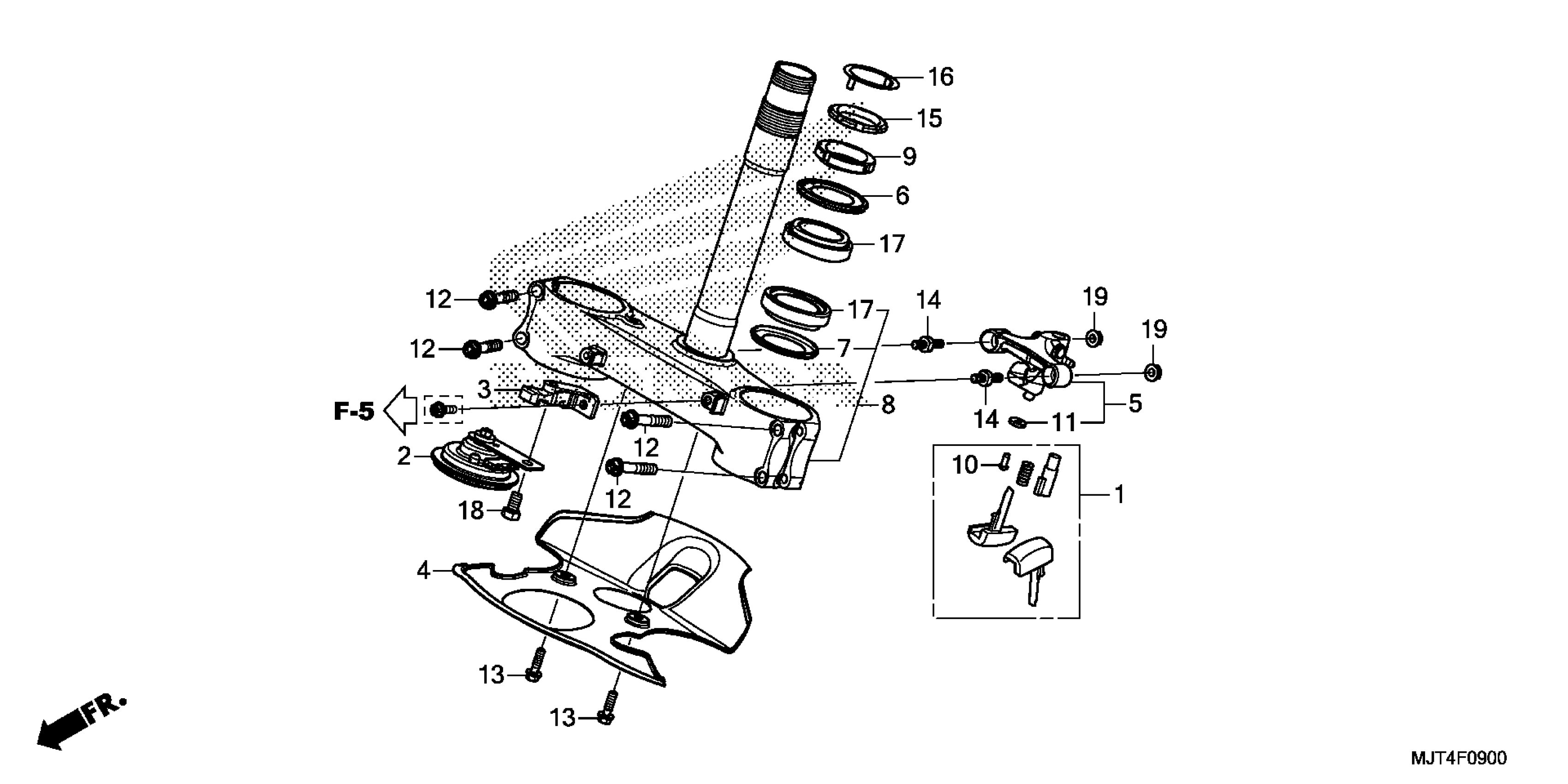

Honda RC213VS2AC (16) MOTORCYCLE, JPN, VIN# JH2SC755-GK000001 STEERING STEM + HORN Diagram

KEY, HANDLEBAR LOCK

35115-MJT-E01

$317.23

HORN (HIGH)

38110-MFL-003

$60.18

STAY, HORN

38115-MJT-E00

$846.74

COVER, COWL (LOWER)

50820-MJT-E00

$992.23

HOLDER ASSY., HANDLE LOCK

53210-MJT-E00

$2,454.16

DUST SEAL

53214-MJT-E01

$137.31

DUST SEAL, STEERING HEAD (ARAI)

53214-MR7-003

$5.81

STEM SUB-ASSY., STEERING

53219-MJT-E00

$5,650.87

THREAD, STEERING HEAD TOP

53221-MJT-E00

$123.77

RIVET This part replaces 53603-051-000.

53603-MFR-AC1

$2.54

WASHER (4.5MM) This part replaces 53604-098-940.

53604-098-941

$2.38

BOLT, FLANGE (8X38)

90112-MJT-E00

$119.39

BOLT, FLANGE (6X20) (SH)

90127-MJT-E00

$96.77

BOLT, HANDLE LOCK

90172-MJT-E00

$194.41

THREAD B, STEERING HEAD TOP

90302-MR7-000

$25.84

WASHER, LOCK

90506-MJT-E00

$190.59

BEARING, HEAD PIPE (NTN)

91016-MR7-003

$46.29

BOLT, HEX. (8X14)

92101-08014-0G

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49
