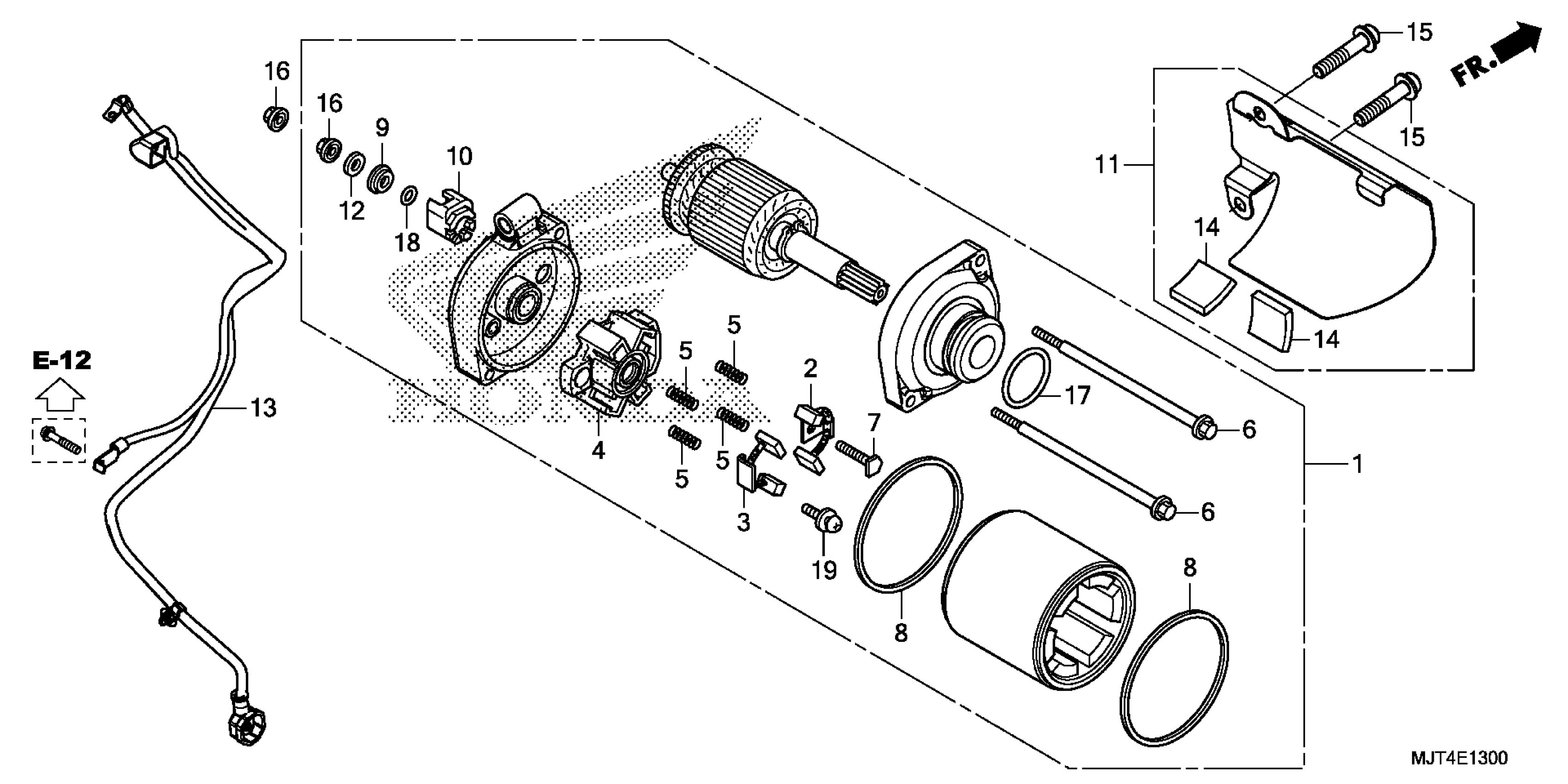

Honda RC213VS2AC (16) MOTORCYCLE, JPN, VIN# JH2SC755-GK000001 STARTING MOTOR Diagram

Description

Price

STARTER MOTOR ASSY.

31200-MJT-E01

$405.06

BRUSH SET A, CARBON

31201-MEW-921

$7.43

BRUSH SET B, CARBON

31202-MEW-921

$12.01

HOLDER, BRUSH

31203-MEW-921

$7.14

SPRING, CARBON BRUSH

31204-MEW-921

$11.58

BOLT, SETTING

31205-MFJ-D01

$3.41

BOLT, TERMINAL

31206-MEW-921

$2.71

RING

31207-HP5-601

$1.99

INSULATOR

31208-MEW-921

$7.07

STOPPER, TERMINAL

31209-MEW-921

$10.50

GUARD, STARTER MOTOR

31209-MJT-E00

$211.90

WASHER

31210-MEW-921

$1.68

CABLE, STARTER & GROUND

32405-MJT-E00

$472.81

RUBBER, BATTERY

50328-HP1-600

$1.50

BOLT, FLANGE TORX (6X28)

90067-MJT-E00

$31.41

NUT-WASHER (6MM)

90071-MB0-000

$1.91

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$5.80

O-RING (24.4X3.1)

91312-MG7-003

$5.80

O-RING (4X2)

91320-MB0-000

$2.24

SCREW-WASHER (5X12)

93892-05012-08

$1.13
