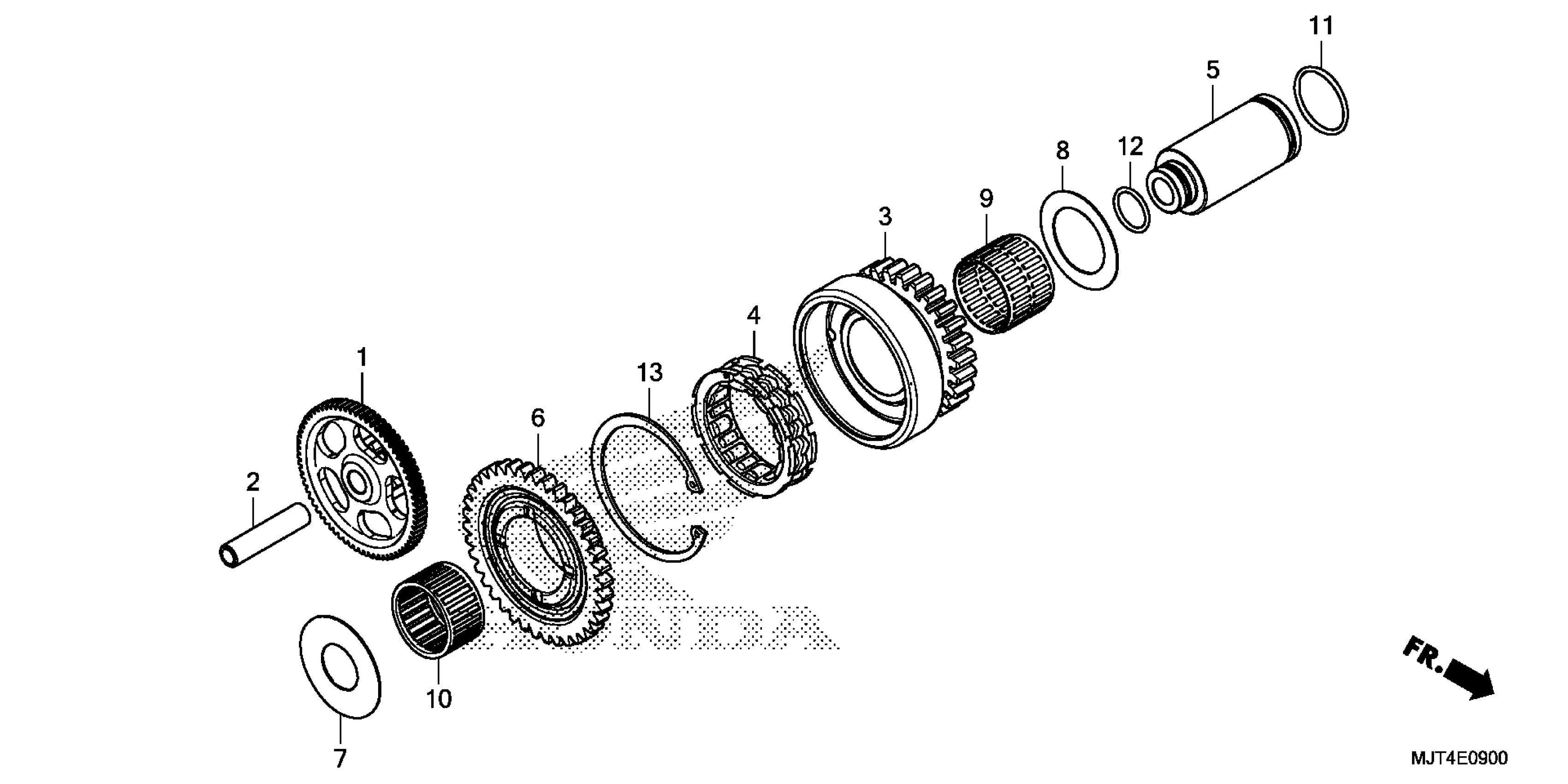

Honda RC213VS2AC (16) MOTORCYCLE, JPN, VIN# JH2SC755-GK000001 STARTING CLUTCH Diagram

#

Description

Price

1

GEAR A, STARTER REDUCTION (11T/70T)

28101-MJT-E00

$816.41

2

PIN (10X44)

28102-ME9-000

$9.51

3

GEAR C, STARTER REDUCTION (26T)

28111-MJT-E00

$1,304.18

4

CLUTCH, ONE-WAY

28126-MEL-000

$81.47

5

SHAFT B, STARTER REDUCTION

28132-MJT-E00

$151.34

6

GEAR B, STARTER REDUCTION (38T)

28140-MJT-E00

$352.90

7

WASHER (21X46.5X0.7)

90408-MJT-E00

$36.16

8

WASHER (30X45X0.7)

90414-MJT-E00

$34.50

9

BEARING, NEEDLE (30X35X26) (NTN CORP.)

91022-MT7-003

$24.86

9

BEARING, NEEDLE (30X35X26) (NTN CORP.) This part replaces 91061-KL8-711.

91022-MT7-003

$24.86

10

BEARING, NEEDLE (30X35X20)

91101-MFJ-D01

$15.31

11

O-RING (27X2.0)

91301-GFG-003

$2.03

12

O-RING (16.8X1.9)

91336-PR9-000

$3.15

13

CIRCLIP, INNER (63MM)

94520-63150

$3.40
