Description

Price

1

CUSHION ASSY., RR. (OHLINS)

52400-MJT-E01

$6,814.56

2

COLLAR A, RR. SHOCK ABSORBER (UPPER)

52431-MJT-E00

$102.38

3

COLLAR B, RR. SHOCK ABSORBER (UPPER)

52432-MJT-E00

$463.72

4

COLLAR D, CUSHION ARM

52462-KSE-000

$7.16

5

COLLAR, CUSHION ARM

52462-MJT-E00

$872.22

6

CAP, LINK COLLAR

52463-MJT-E00

$113.19

7

ARM SUB-ASSY., CUSHION

52465-MJT-E00

$3,041.35

8

ROD SUB-ASSY., CUSHION CONNECTING

52475-MJT-E00

$1,367.68

9

RING, STOPPER

52487-KA4-831

$3.74

10

BOLT, CUSHION (UPPER) (10X72)

90114-MJT-E00

$372.56

11

BOLT, FLANGE (10X38)

90115-MJT-E00

$167.91

12

BOLT, FLANGE (10X83)

90116-MJT-E00

$245.49

13

BOLT, FLANGE (10X54)

90117-MJT-E00

$189.90

14

NUT A, LINK

90306-MJT-E00

$175.99

15

BEARING, NEEDLE (15X21X16)

91051-MJT-E01

$19.54

16

BEARING, NEEDLE (19X26X13)

91074-KRN-711

$7.84

17

BEARING, SPHERICAL (10)

91075-MBR-721

$24.01

18

DUST SEAL (15X21X3)

91251-MJT-E01

$11.01

19

DUST SEAL (19X26X3)

91351-KSE-003

$2.80

20

DUST SEAL, RR. CUSHION PIVOT

91351-KZ3-731

$4.66

21

DUST SEAL (16X26X3)

91351-MAC-671

$5.16

22

SCREW-WASHER (3X12)

93892-03012-00

$0.66

23

WASHER, PLAIN (3MM)

94101-03000

$0.60

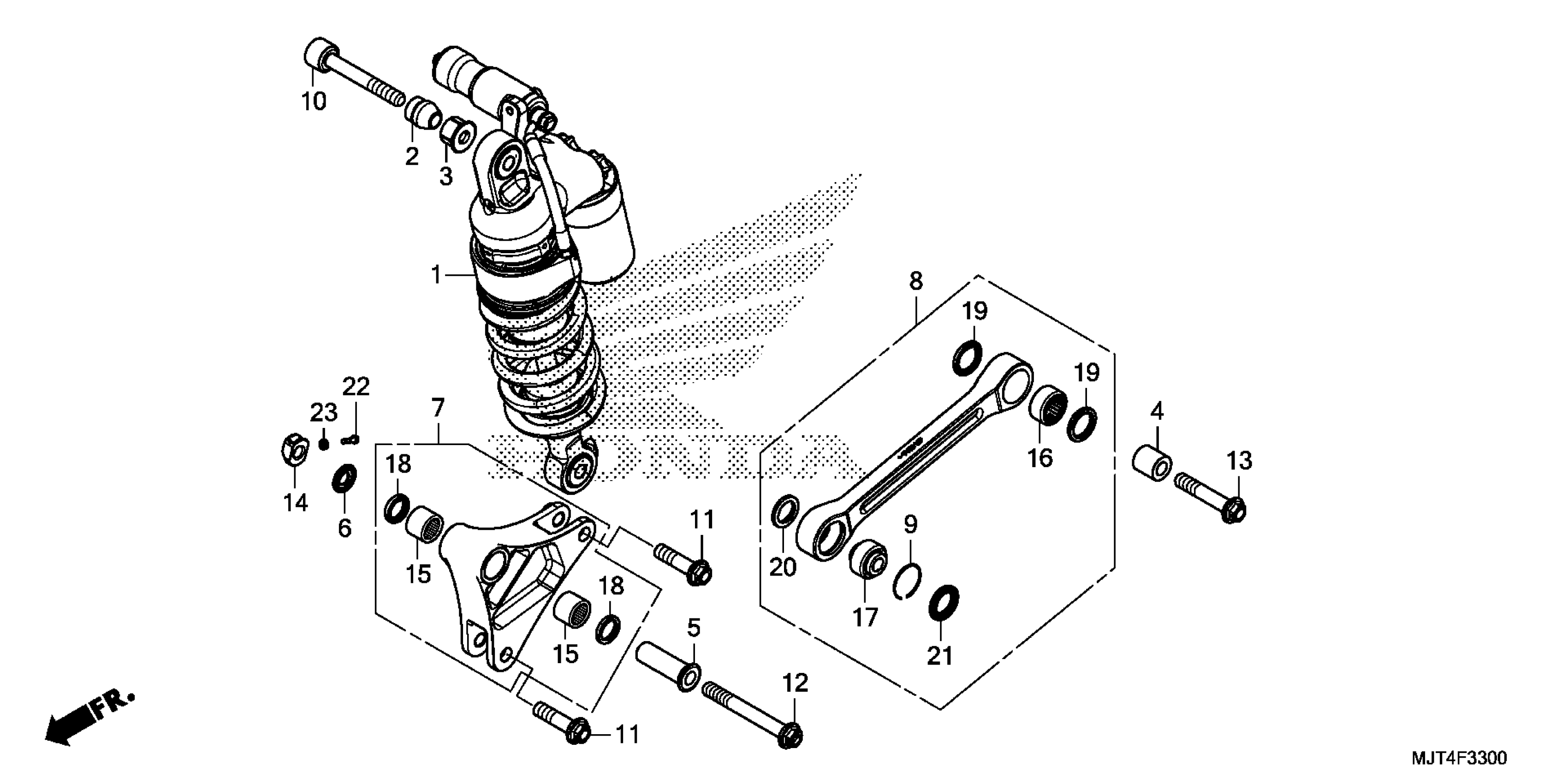

Honda RC213VS2AC (16) MOTORCYCLE, JPN, VIN# JH2SC755-GK000001 REAR SHOCK ABSORBER Diagram
