Description

Price

1

COLLAR, CHANGE PIVOT

24703-MJT-E00

$576.13

2

SPRING, CHANGE PEDAL RETURN

24704-MJT-E00

$51.18

3

BAR, CHANGE PEDAL

24706-MJT-E00

$605.34

4

PIN, CHANGE PEDAL

24707-MJT-E00

$58.51

5

ARM, GEARSHIFT

24710-MJT-E00

$60.56

6

PEDAL, GEARSHIFT

24720-MJT-E00

$1,919.78

7

SENSOR ASSY., GEARSHIFT

24730-MJT-E00

$2,518.37

8

BAND (BLACK 3.5X140)

35701-MG9-950

$1.84

9

BUSH, BRAKE PANEL SLEEVE

45140-GK4-762

$7.49

10

NUT, HEX. (6MM) (LEFT HAND THREAD)

45423-KA4-700

$1.50

11

PEDAL, BRAKE

46500-MJT-E00

$696.99

12

RUBBER, PEDAL

46502-MJT-E00

$43.81

13

COLLAR, BRAKE PIVOT

46520-MJT-E00

$88.07

14

BOLT, FLANGE (6X20) (SH)

90127-MJT-E00

$86.81

15

BOLT, FLANGE (6X34)

90149-MJT-E00

$118.94

16

BAR, CHANGE (220MM)

90165-MJT-E00

$52.13

16

BAR, CHANGE (204MM) | (Optional).

90166-MJT-E00

$49.72

17

WASHER, SPECIAL (8MM)

90443-GC8-000

$2.46

18

COLLAR, SENSOR

90502-MGP-D90

$4.51

19

NUT, HEX. (6MM)

94002-06020-0S

$1.01

20

NUT, FLANGE (6MM)

94050-06000

$0.60

21

E-RING

94540-06010

$2.22

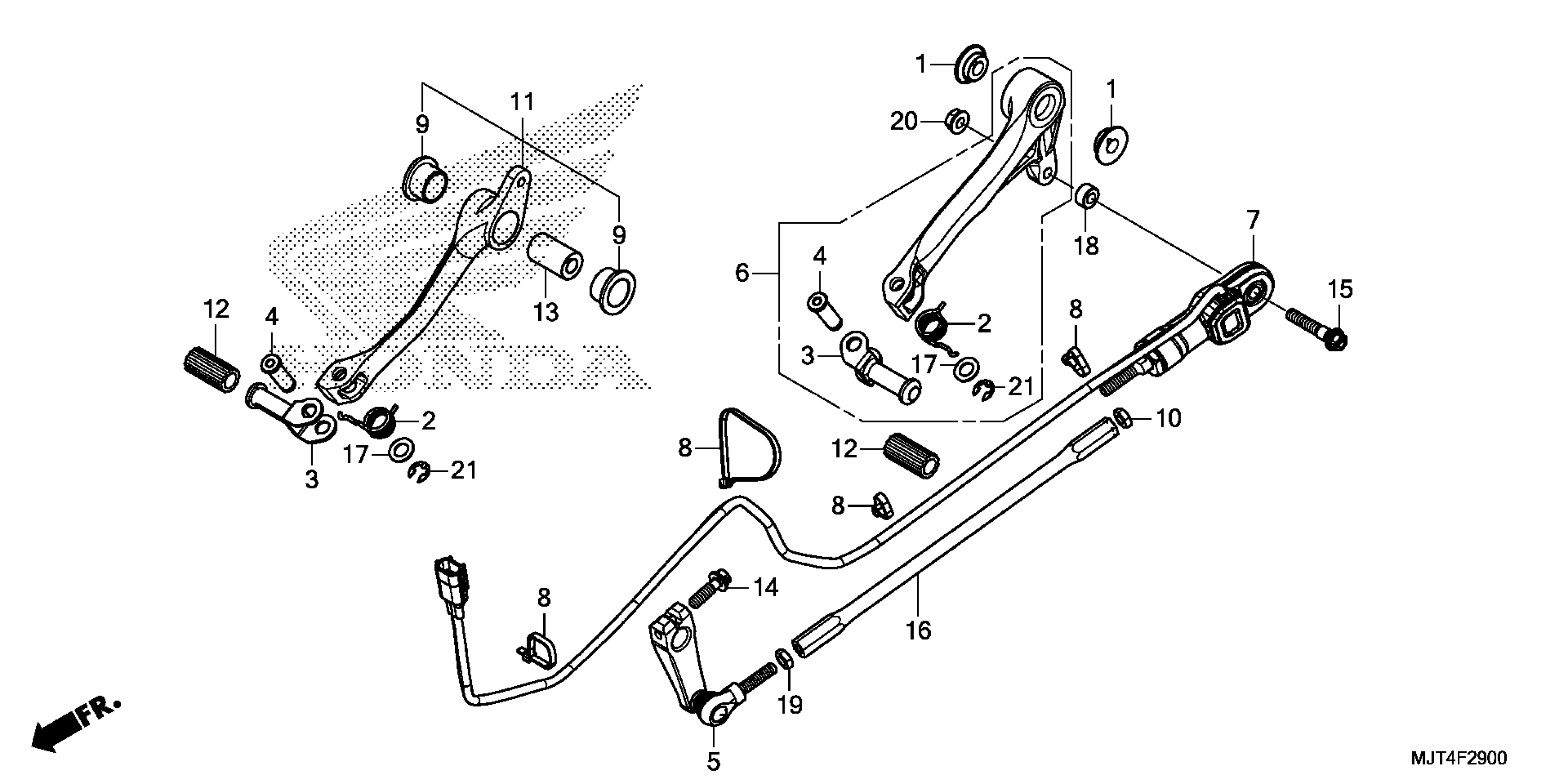

Honda RC213VS2AC (16) MOTORCYCLE, JPN, VIN# JH2SC755-GK000001 PEDAL Diagram
