Description

Price

1

PAN, OIL

11211-MJT-E00

$6,609.59

2

PUMP ASSY., OIL

15100-MJT-E00

$8,224.07

3

GEAR, OIL PUMP DRIVEN (26T)

15133-MJT-E00

$912.53

4

O-RING, OIL PUMP

15147-MJT-E00

$20.32

5

STRAINER, OIL

15150-MJT-E01

$1,373.34

6

GEAR, OIL PUMP REDUCTION (63T/29T)

15170-MJT-E00

$1,755.79

7

SHAFT, OIL PUMP REDUCTION GEAR

15175-MJT-E00

$83.49

8

ELEMENT, OIL FILTER

15410-MJT-E01

$298.78

9

O-RING A, OIL FILTER

15415-MJT-E00

$19.34

10

ELEMENT, OIL FILTER (P2)

15420-MJT-E01

$298.78

11

COVER, OIL FILTER

15421-MJT-E00

$3,415.69

12

SPACER, OIL FILTER

15422-MJT-E00

$1,791.01

13

O-RING B, OIL FILTER

15425-MJT-E00

$28.38

14

FINDER, OIL LEVEL

15661-MJT-E00

$66.26

15

OIL SEAL, LEVEL FINDER SPECIAL

15662-MJT-E00

$30.00

16

STAY, CLIP

32157-MJT-E00

$222.03

17

SENSOR, OIL PRESSURE

37260-MGE-641

$158.16

18

SENSOR ASSY., THERMOSTAT OIL (PANASONIC)

37750-KPH-701

$46.23

19

BOLT, FLANGE (6X12)

90023-MJT-E00

$14.24

20

BOLT, FLANGE TORX (6X25)

90037-MJT-E00

$52.62

21

BOLT, FLANGE TORX (6X28)

90038-MJT-E00

$52.62

22

BOLT, FLANGE TORX (6X32)

90039-MJT-E00

$52.90

23

BOLT, FLANGE TORX (6X35)

90040-MJT-E00

$52.90

24

BOLT, DRAIN PLUG (12MM)

90061-KYJ-900

$0.88

25

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.80

26

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

27

O-RING (13X1.5)

91301-MEH-003

$1.50

28

O-RING (17MM)

91305-MJT-E00

$64.68

29

O-RING (19.8X2.4)

91310-PH7-000

$2.96

30

D-RING (24X29X1.5)

91315-MJT-E00

$78.29

31

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.13

32

PIN, DOWEL (8X10)

94301-08100

$2.76

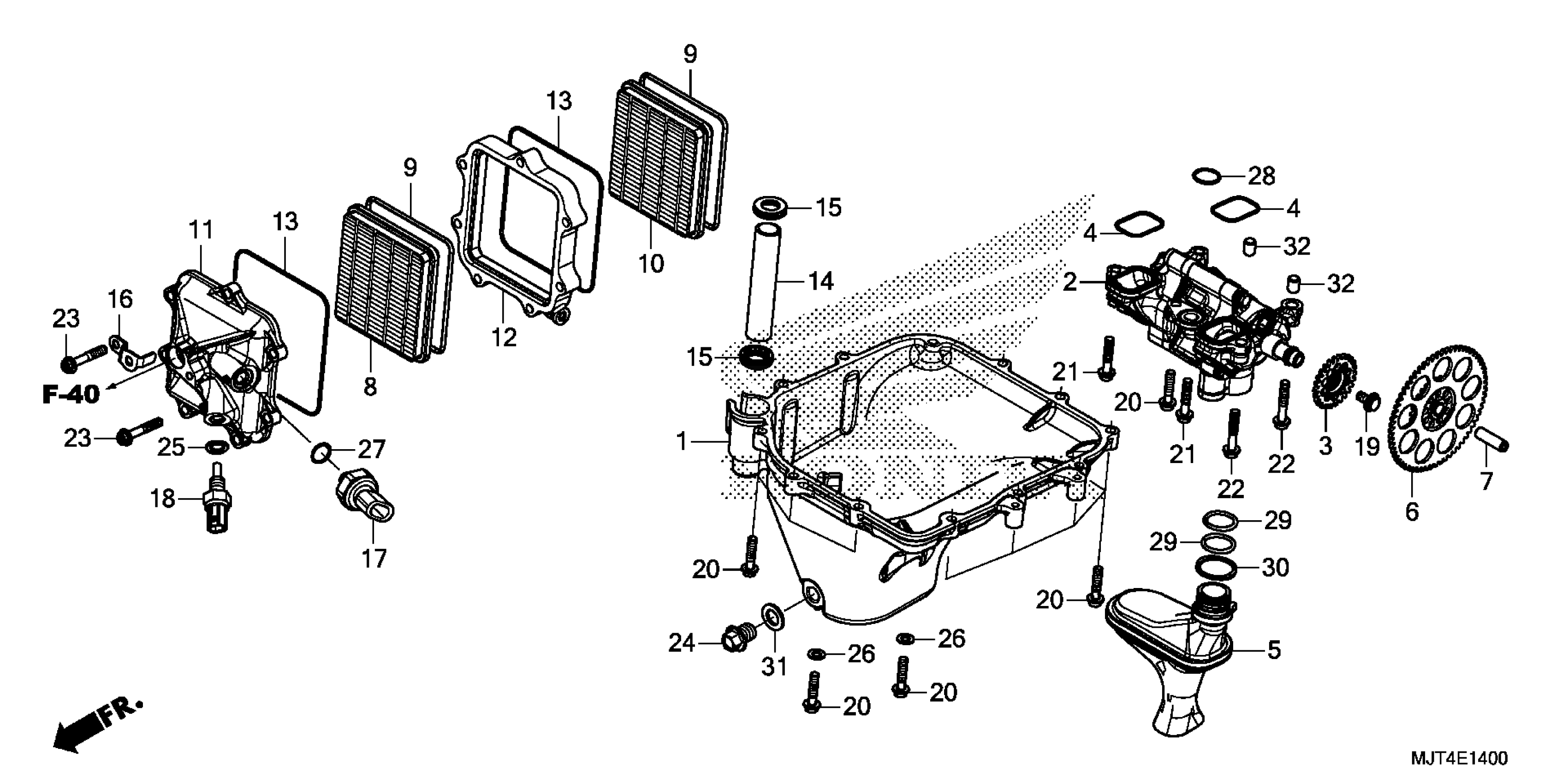

Honda RC213VS2AC (16) MOTORCYCLE, JPN, VIN# JH2SC755-GK000001 OIL PAN + OIL PUMP Diagram
