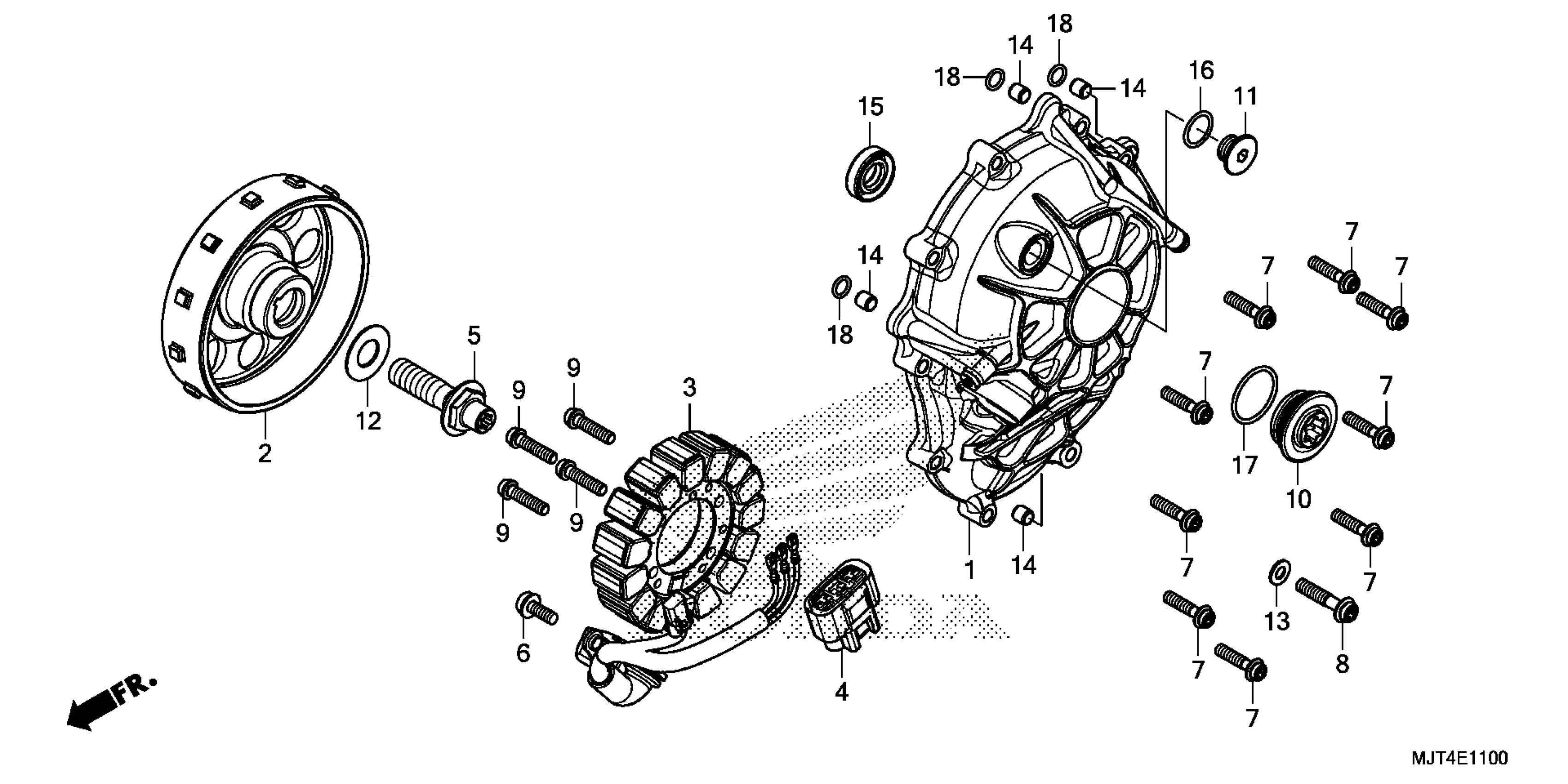

Honda RC213VS2AC (16) MOTORCYCLE, JPN, VIN# JH2SC755-GK000001 GENERATOR Diagram

COVER, ALTERNATOR

11640-MJT-E00

$9,599.11

FLYWHEEL

31110-MJT-E01

$1,831.10

STATOR

31120-MJT-E01

$1,040.46

CONNECTOR, WATERPROOF (3P 250 F)

32636-MJT-E00

$12.20

BOLT, FLANGE (14X47) (LEFT HAND THREAD)

90002-MJT-E01

$331.25

BOLT, FLANGE SOCKET (6X16)

90010-MJ6-000

$2.99

BOLT, FLANGE TORX (6X25)

90037-MJT-E00

$56.95

BOLT, FLANGE TORX (6X28)

90038-MJT-E00

$56.95

BOLT, SOCKET (6X25)

90066-MJT-E00

$15.38

CAP (30MM)

90082-MJT-E00

$331.25

CAP (14MM)

90084-MEN-670

$11.93

WASHER (14.5X30.5)

90402-MJT-E00

$60.93

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

PIN, DOWEL (8X8)

90702-MB0-000

$3.80

OIL SEAL (14X28X7)

91202-MJT-E01

$63.16

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (30.8X1.9)

91307-MJT-E00

$37.18

O-RING (7.8X1.6)

91313-MJT-E00

$19.23
