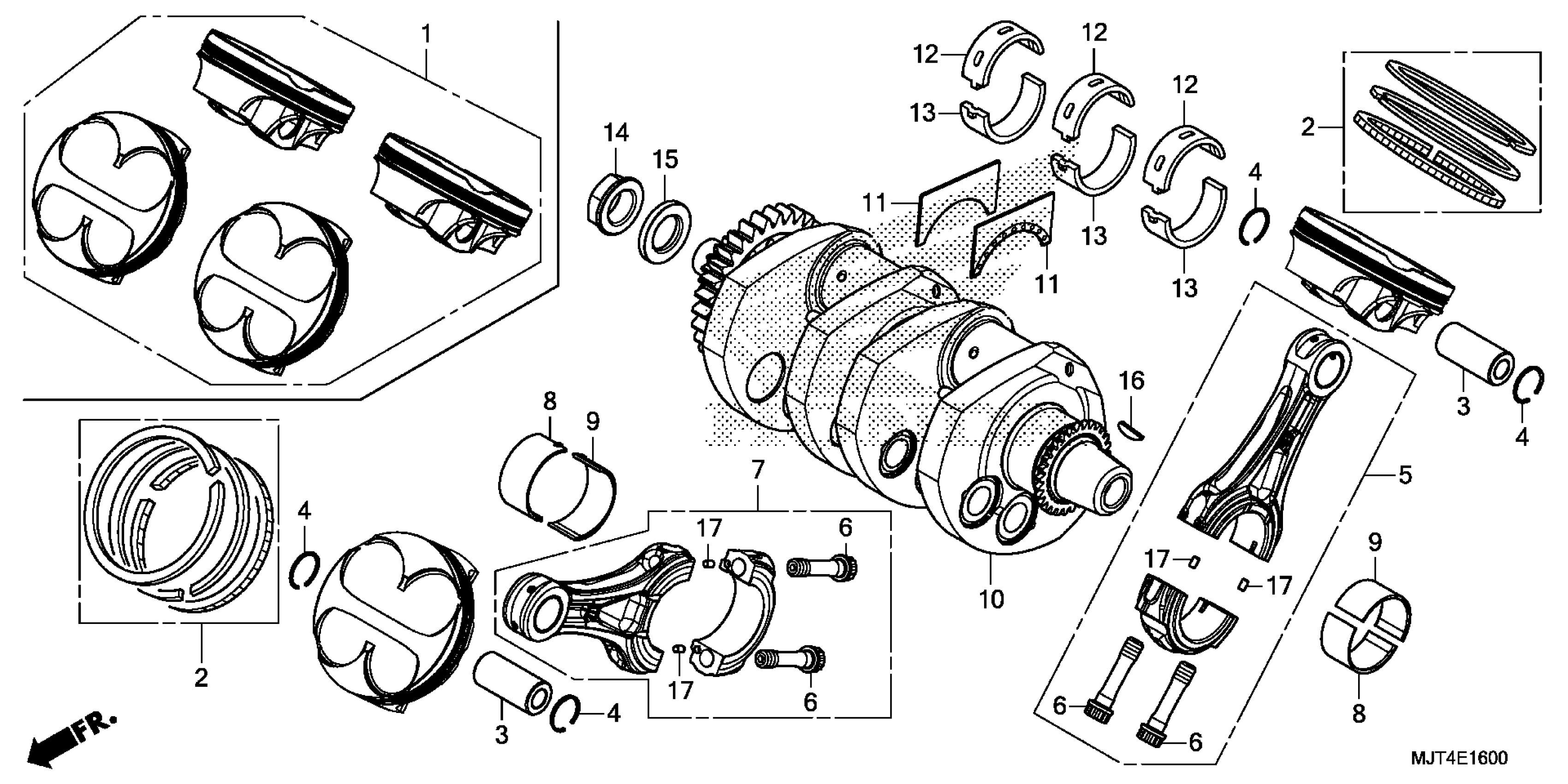

Honda RC213VS2AC (16) MOTORCYCLE, JPN, VIN# JH2SC755-GK000001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

PISTON SET (STD) (F.P.JAPAN)

06131-MJT-E00

$11,900.90

1

PISTON SET (STD) (HONDA FOUNDRY)

06132-MJT-E00

$11,900.90

2

RING SET, PISTON (STD)

13011-MJT-E00

$521.33

3

PIN, PISTON

13111-MJT-E00

$903.92

4

CLIP, PISTON PIN (17MM)

13112-MJT-E00

$5.75

5

ROD ASSY., CONNECTING (#1,3)

13210-MJT-E00

$7,314.02

6

BOLT, CONNECTING ROD

13213-MJT-E01

$30.57

7

ROD ASSY., CONNECTING (#2,4)

13220-MJT-E00

$7,314.02

8

BEARING A, CONNECTING ROD (SIDE A)

13224-MJT-E01

$382.39

8

BEARING B, CONNECTING ROD (SIDE A)

13225-MJT-E01

$382.39

8

BEARING C, CONNECTING ROD (SIDE A)

13226-MJT-E01

$382.39

8

BEARING D, CONNECTING ROD (SIDE A)

13227-MJT-E01

$382.39

8

BEARING E, CONNECTING ROD (SIDE A)

13228-MJT-E01

$382.39

8

BEARING F, CONNECTING ROD (SIDE A)

13229-MJT-E01

$382.39

9

BEARING A, CONNECTING ROD (SIDE B)

13234-MJT-E01

$382.39

9

BEARING B, CONNECTING ROD (SIDE B)

13235-MJT-E01

$382.39

9

BEARING C, CONNECTING ROD (SIDE B)

13236-MJT-E01

$382.39

9

BEARING D, CONNECTING ROD (SIDE B)

13237-MJT-E01

$382.39

9

BEARING E, CONNECTING ROD (SIDE B)

13238-MJT-E01

$382.39

9

BEARING F, CONNECTING ROD (SIDE B)

13239-MJT-E01

$382.39

10

CRANKSHAFT

13300-MJT-E00

$12,815.90

11

WASHER, CRANKSHAFT (A)

13331-MJT-E00

$431.98

11

WASHER, CRANKSHAFT (B)

13332-MJT-E00

$431.98

11

WASHER, CRANKSHAFT (C)

13333-MJT-E00

$431.98

12

BEARING A, CRANKSHAFT (UPPER)

13334-MJT-E01

$266.69

12

BEARING B, CRANKSHAFT (UPPER)

13335-MJT-E01

$266.69

12

BEARING C, CRANKSHAFT (UPPER)

13336-MJT-E01

$266.69

12

BEARING D, CRANKSHAFT (UPPER)

13337-MJT-E01

$266.69

12

BEARING E, CRANKSHAFT (UPPER)

13338-MJT-E01

$266.69

12

BEARING, CRANKSHAFT (UPPER) (F)

13339-MJT-E01

$266.69

12

BEARING G, CRANKSHAFT (UPPER)

13340-MJT-E01

$266.69

12

BEARING H, CRANKSHAFT (UPPER)

13341-MJT-E01

$266.69

13

BEARING A, CRANKSHAFT

13344-MJT-E01

$265.02

13

BEARING B, CRANKSHAFT

13345-MJT-E01

$265.02

13

BEARING C, CRANKSHAFT

13346-MJT-E01

$265.02

13

BEARING D, CRANKSHAFT

13347-MJT-E01

$265.02

13

BEARING E, CRANKSHAFT

13348-MJT-E01

$265.02

13

BEARING F, CRANKSHAFT

13349-MJT-E01

$265.02

13

BEARING G, CRANKSHAFT

13350-MJT-E01

$265.02

13

BEARING H, CRANKSHAFT

13351-MJT-E01

$265.02

14

NUT, FLANGE (18MM) (LEFT HAND THREAD)

90024-MJT-E00

$24.51

15

WASHER (18.1X31)

90401-MJT-E00

$20.49

16

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

17

PIN, DOWEL (3X5)

94303-03050

$2.25
