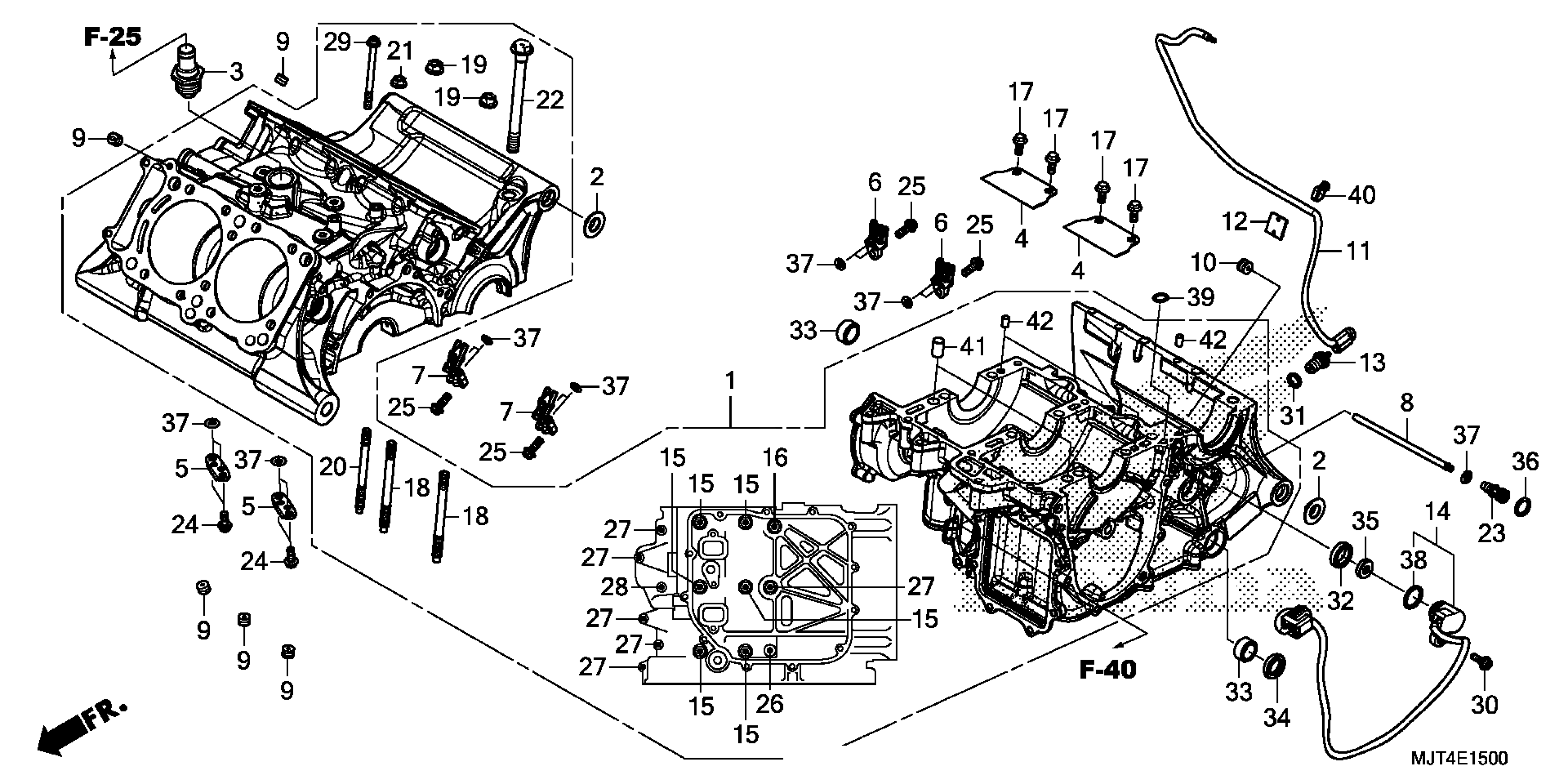

Honda RC213VS2AC (16) MOTORCYCLE, JPN, VIN# JH2SC755-GK000001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11000-MJT-E00

$57,983.49

2

COLLAR D, ENGINE HANGER

11104-MJT-E00

$65.46

3

JOINT, BREATHER

11106-MJT-E00

$151.01

4

PLATE, OIL SEPARATE

11203-MJT-E00

$156.99

5

PLUG, INLET PISTON JET

15520-MJT-E00

$736.24

6

JET, FR. EX. PISTON

15530-MJT-E00

$1,337.07

7

JET, RR. EX. PISTON

15540-MJT-E00

$1,356.57

8

PIPE, TRANSMISSION JET

15550-MJT-E00

$1,919.96

9

ORIFICE (1MM)

15564-MJT-E00

$24.51

10

ORIFICE (2MM)

15571-MJT-E00

$26.09

11

SUB-WIRE, NEUTRAL

32101-MJT-E00

$48.76

12

BASE, MOUNT

32114-MJT-E00

$49.99

13

SWITCH ASSY., NEUTRAL

35600-MFJ-D01

$19.43

14

SENSOR ASSY., ANGLE (350DEGREE)

38800-MJT-E01

$180.19

15

BOLT, FLANGE (9X93)

90001-MJT-E00

$147.28

16

BOLT, FLANGE (9X114)

90003-MJT-E00

$79.78

17

BOLT, FLANGE (6X12) (NSHF)

90004-GHB-610

$2.83

18

BOLT, STUD (8X96.5)

90004-MJT-E00

$57.07

19

NUT, FLANGE (8MM)

90005-MJT-E00

$13.51

20

BOLT, STUD (7X90)

90006-MJT-E00

$63.01

21

NUT, FLANGE (7MM)

90007-MJT-E00

$8.62

22

BOLT, FLANGE (10X110)

90008-MJT-E00

$237.66

23

BOLT, SPECIAL OIL LINE

90027-MJT-E00

$142.10

24

BOLT, FLANGE TORX (6X14)

90032-MJT-E00

$52.62

25

BOLT, FLANGE TORX (6X16)

90033-MJT-E00

$52.62

26

BOLT, FLANGE TORX (6X36)

90041-MJT-E00

$52.90

27

BOLT, FLANGE TORX (6X40)

90042-MJT-E00

$54.04

28

BOLT, FLANGE TORX (6X45)

90044-MJT-E00

$54.04

29

BOLT, FLANGE TORX (6X70)

90050-MJT-E00

$57.66

30

BOLT, KNOCK TORX (5X16)

90093-MJT-E00

$201.53

31

WASHER, NEUTRAL

90443-MJ6-000

$1.78

32

BEARING, BALL (6802C3)

91001-MJT-E01

$24.35

33

BEARING, NEEDLE (15X21X10)

91026-MJT-E01

$13.07

34

OIL SEAL (15X24X5) This part replaces 91201-GG0-003.

91204-GK8-003

$4.65

34

OIL SEAL (15X24X5) This part replaces 91201-812-013.

91204-GK8-003

$4.65

34

OIL SEAL (15X24X5) This part replaces 91201-812-015.

91204-GK8-003

$4.65

34

OIL SEAL (15X24X5)

91204-GK8-003

$4.65

35

OIL SEAL (7X18X5) (ARAI)

91220-MG8-003

$4.13

36

O-RING (1.5X9.5)

91306-MG3-000

$2.15

37

O-RING (2.8X1.2)

91308-MJT-E00

$6.26

38

O-RING (16.5X2.5)

91310-MGE-D01

$4.44

39

O-RING, CRANKCASE

91317-MJT-E00

$71.75

40

BAND, TY-RAP (2.4X92)

91641-MJT-E00

$10.37

41

PIN B, DOWEL (10X16)

94302-10160

$1.63

42

PIN, DOWEL (6X10)

94303-06100

$2.23
