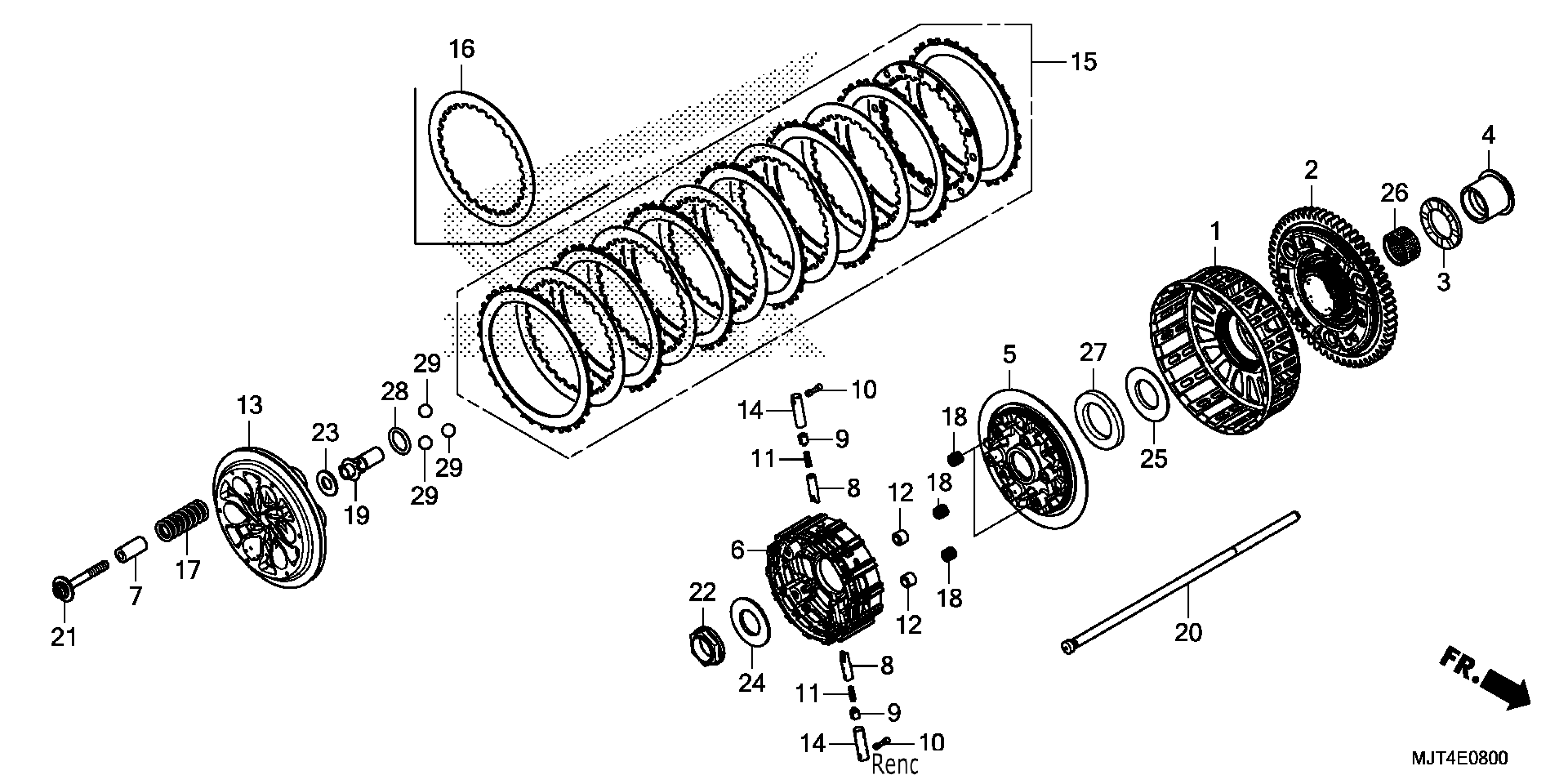

Honda RC213VS2AC (16) MOTORCYCLE, JPN, VIN# JH2SC755-GK000001 CLUTCH Diagram

#

Description
Price

1

CLUTCH OUTER

22101-MJT-E00

$4,585.76

2

GEAR, PRIMARY DRIVEN (58T)

22110-MJT-E00

$9,885.56

3

COLLAR B, PRIMARY DRIVEN PLATE

22117-MJT-E00

$933.15

4

COLLAR, PRIMARY DRIVEN PLATE

22119-MJT-E00

$2,199.65

5

CENTER A, CLUTCH

22121-MJT-E00

$8,430.59

6

CENTER B, CLUTCH

22122-MJT-E00

$9,145.57

7

BOSS, CLUTCH CENTER

22123-MJT-E00

$24.82

8

PLUNGER, CLUTCH

22125-MJT-E00

$1,269.15

9

STOPPER, PLUNGER

22126-MJT-E00

$44.25

10

PIN, STOPPER

22127-MJT-E00

$34.59

11

SPRING, PLUNGER

22128-MJT-E00

$65.90

12

COLLAR, SUB-SPRING

22129-MJT-E00

$35.46

13

PLATE, CLUTCH PRESSURE

22131-MJT-E00

$614.75

14

COLLAR, CLUTCH CENTER (B)

22141-MJT-E00

$339.34

15

DISK SET, CLUTCH (1.6MM)

22210-MJT-305

$546.44

16

PLATE, CLUTCH (1.7MM)

22314-MJT-E00

$98.71

16

PLATE, CLUTCH (1.8MM)

22315-MJT-E00

$103.74

16

PLATE, CLUTCH (1.9MM)

22316-MJT-E00

$103.74

16

PLATE, CLUTCH (2.0MM)

22317-MJT-E00

$103.74

17

SPRING, CLUTCH (233N)

22401-MJT-E00

$7.49

18

SPRING, CLUTCH SUB

22402-MJT-E00

$6.41

19

PIECE, CLUTCH LIFTER

22841-MJT-E00

$258.21

20

ROD, LIFTER

22850-MJT-E00

$917.59

21

BOLT, FLANGE TORX (6X45)

90025-MJT-E00

$8.18

22

NUT, FLANGE (24MM)

90208-MJT-E00

$181.22

23

WASHER, THRUST (11.7X23X2)

90407-MJT-E00

$19.79

24

WASHER B, SPECIAL (24.1X46X3)

90411-MJT-E00

$278.60

25

WASHER (28MM)

90497-MJT-E00

Unavailable

26

BEARING, NEEDLE (34MM)

91021-MJT-E01

$7.22

27

OIL SEAL (35X54X5.5)

91223-MJT-E01

$53.22

28

O-RING (10.6X1.3)

91312-MJT-E00

$43.35

29

BALL, STEEL (#7) (7/32)

96211-07000

$1.18
