Description

Price

1

JOINT, FUEL TUBE

16958-GJ6-000

$4.53

2

CANISTER

17410-MJT-A01

$280.75

3

TUBE A, PURGE

17411-MJT-A00

$77.56

4

TUBE B, PURGE

17412-MJT-A00

$63.10

5

TUBE C, PURGE

17413-MJT-A00

$77.56

6

TUBE, CANISTER DRAIN

17415-MJT-A00

$60.75

7

STAY, CANISTER

17440-MJT-A00

$222.54

8

TUBE A, CHARGE

17544-MJT-A00

$22.57

9

TUBE B, CHARGE

17545-MJT-A00

$118.28

10

CUSHION, FUEL TANK

17558-MEE-300

$17.21

11

RUBBER, RADIATOR SHROUD

19036-GS2-600

$2.92

12

JOINT, TUBE

19103-MB9-000

$6.34

13

VALVE, PURGE CONTROL SOLENOID

36162-KZL-931

$57.85

14

CLAMP, BREATHER TUBE

41936-P6R-003

$6.90

15

GROMMET, OIL TUBE

55204-GJ2-000

$3.51

16

MAT, DUCT COVER

64352-MFL-000

$2.05

17

STAY, CONNECTOR

64514-MJT-E00

$35.59

18

BOLT, FLANGE (5X10)

90002-892-000

$1.49

19

BOLT, FLANGE (6X14) (SH)

90124-MJT-E00

$89.72

20

RIVET, POP (3.2X6.4)

90851-MJT-E00

$1.49

21

WASHER, PLAIN (3MM)

94101-03700

$1.49

22

BAND B2, BATTERY

95012-13001

$5.28

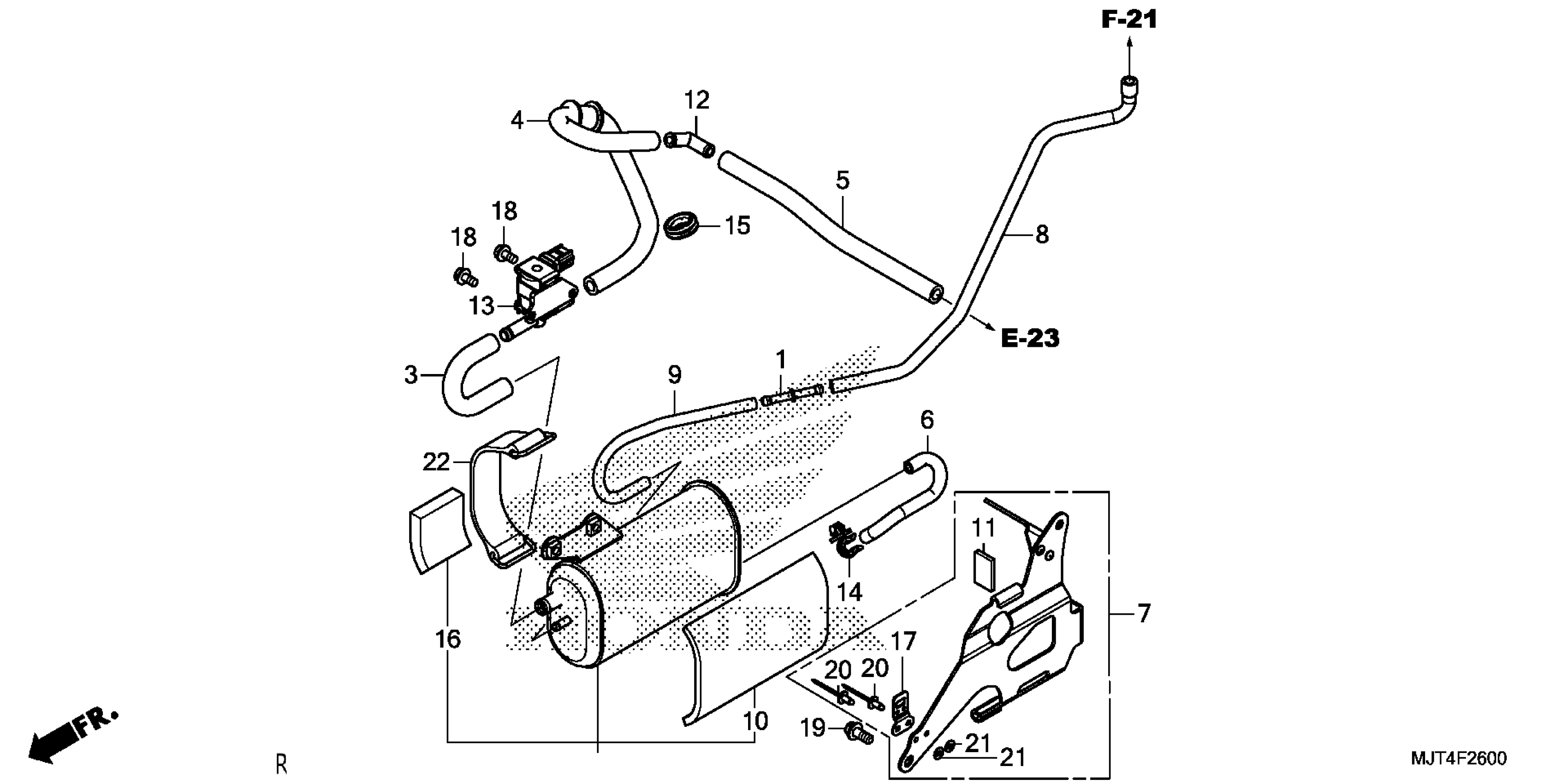

Honda RC213VS2AC (16) MOTORCYCLE, JPN, VIN# JH2SC755-GK000001 CANISTER Diagram

JOINT, FUEL TUBE

CANISTER

TUBE A, PURGE

TUBE B, PURGE

TUBE C, PURGE

TUBE, CANISTER DRAIN

STAY, CANISTER

TUBE A, CHARGE

TUBE B, CHARGE

CUSHION, FUEL TANK

RUBBER, RADIATOR SHROUD

JOINT, TUBE

VALVE, PURGE CONTROL SOLENOID

CLAMP, BREATHER TUBE

GROMMET, OIL TUBE

MAT, DUCT COVER

STAY, CONNECTOR

BOLT, FLANGE (5X10)

BOLT, FLANGE (6X14) (SH)

RIVET, POP (3.2X6.4)

WASHER, PLAIN (3MM)

BAND B2, BATTERY
