Description

Price

1

PLATE, PORT (AI)

12341-MAT-750

$12.74

2

BOLT, SOCKET (4X10)

17294-MJT-E00

$3.87

3

CLIP B, TUBE

17366-MJ0-000

$2.04

4

TUBE, AIR CLEANER SUCTION

17461-MJT-E00

$26.52

5

TUBE, FR. AIR SUCTION

17462-MJT-E00

$36.94

6

TUBE, RR. AIR SUCTION

17464-MJT-E00

$37.25

7

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

8

COLLECTOR, THERMAL

18555-MJT-E00

$1,638.61

9

VALVE, REED

18601-MCH-003

$24.15

10

CASE, FR. REED VALVE

18610-MJT-E00

$257.12

11

COVER, FR. REED VALVE

18612-MJT-E00

$300.58

12

CASE, RR. REED VALVE

18620-MJT-E00

$1,467.26

13

COVER, RR. REED VALVE

18622-MJT-E00

$1,877.06

14

STAY, RR. REED VALVE

18629-MJT-E00

$61.41

15

PIPE, AIR INJECTION (#1-A)

18640-MJT-E00

$606.09

16

TUBE, AIR INJECTION (#1)

18641-MJT-E00

$76.07

17

PIPE, AIR INJECTION (#1-B)

18645-MJT-E00

$278.39

18

GASKET, AIR FEED PIPE

18645-MT4-730

$2.64

19

PIPE, AIR INJECTION (#2)

18650-MJT-E00

$507.59

20

TUBE, AIR INJECTION (#2)

18651-MJT-E00

$102.49

21

PIPE, AIR INJECTION (#3-A)

18660-MJT-E00

$598.57

22

TUBE, AIR INJECTION (#3)

18661-MJT-E00

$86.42

23

PIPE, AIR INJECTION (#3-B)

18665-MJT-E00

$535.93

24

PIPE, AIR INJECTION (#4)

18670-MJT-E00

$589.06

25

TUBE, AIR INJECTION (#4)

18671-MJT-E00

$76.07

26

SUSPENSION, SOLENOID VALVE

36172-MFJ-D00

$3.65

27

VALVE ASSY., EX. AIR INJECTION

36450-MJT-E00

$66.42

28

BOLT, SPECIAL FLANGE TORX (6X13)

90020-MJT-E00

$187.14

29

BOLT, FLANGE TORX (6X18)

90034-MJT-E00

$51.86

30

BOLT, FLANGE TORX (6X22)

90036-MJT-E00

$51.86

31

BOLT, FLANGE TORX (6X32)

90039-MJT-E00

$52.13

32

BOLT, FLANGE (6X10) (SH)

90122-MJT-E00

$79.32

33

BOLT, FLANGE (6X18) (SH)

90126-MJT-E00

$84.87

34

WASHER, SEALING (6MM)

90488-425-000

$2.07

35

CLIP, FUEL HOSE

90678-MN5-000

$2.48

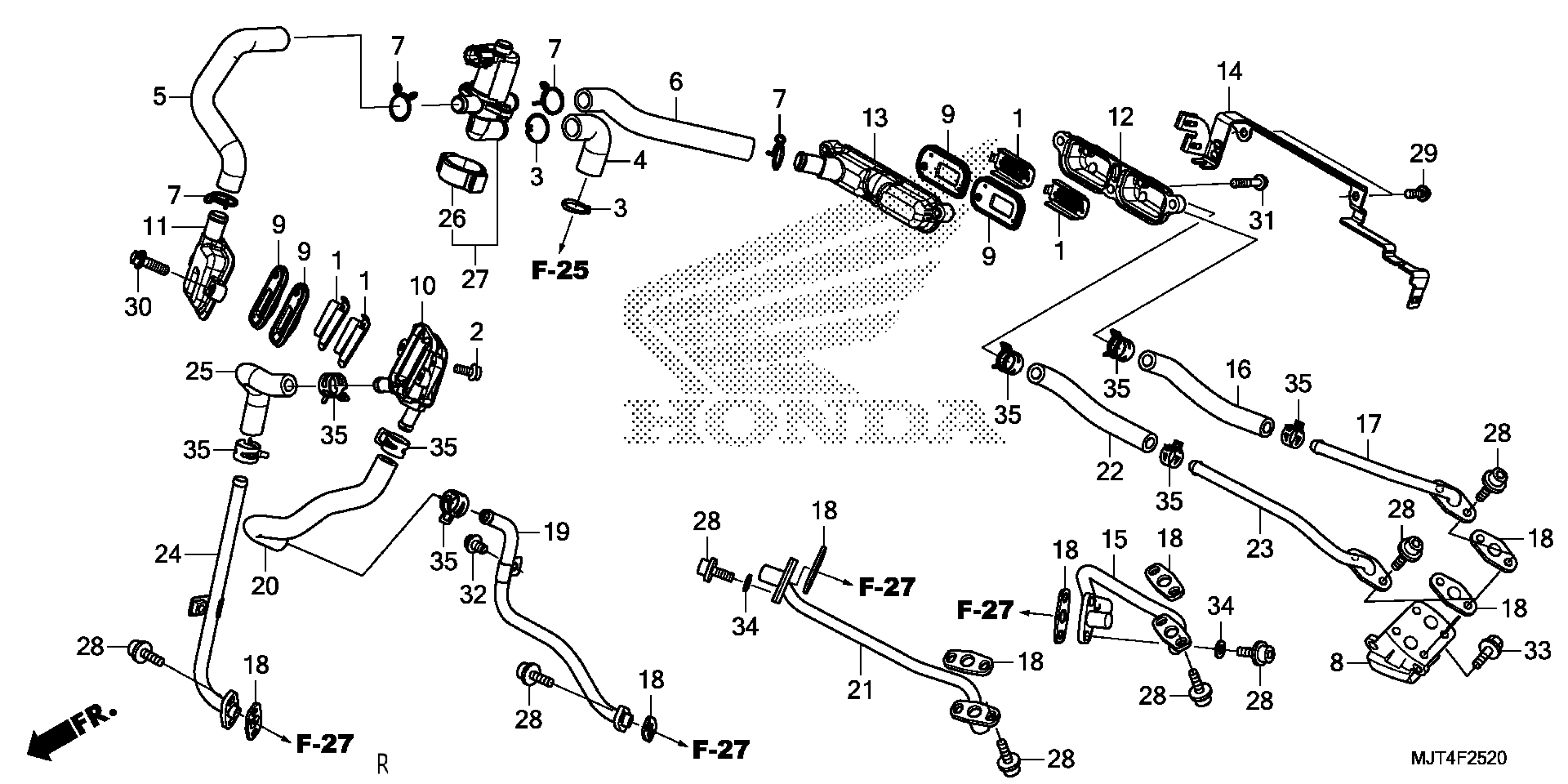

Honda RC213VS2AC (16) MOTORCYCLE, JPN, VIN# JH2SC755-GK000001 AIR INJECTION CONTROL VALVE Diagram
