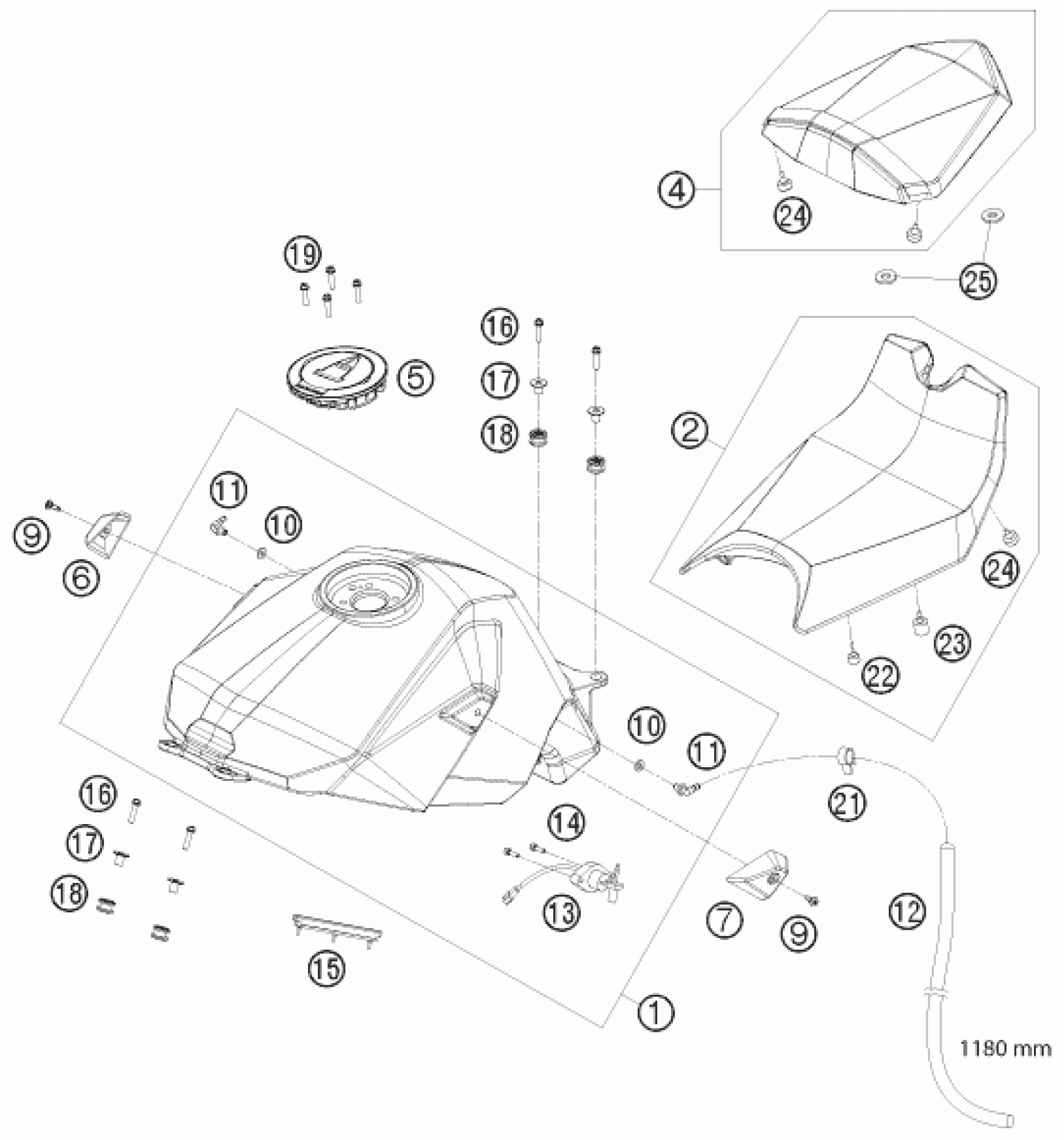

KTM RC 8 ORANGE 08 / PS 09 <2008> TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. ORG MATT RC8

6900701304475A

Unavailable

2

RIDER´S SEAT

69007040000

$135.72

4

PASSENGER SEAT

69007047000

$188.77

5

TANK CAP

69007008000

Unavailable

6

TANK PROT. R/S BLACK MATT 08

6900702600033

$4.35

7

TANK PROT. L/S BLACK MATT 08

6900702500033

$4.52

9

SPECIAL SCREW M5X12 ISA30 ALU

69007025050

$5.23

10

GASKET FOR CONNECTING PIECE 03

60007024050

$2.05

11

CONNECT.PIECE F.OVERFLOW M7 03

60007024000

$2.05

12

HOSE NBR 5,4X9,4 PER METER

60007026001

Unavailable

13

GAS-LEVEL SENSOR ADV. 2006

58207080100

$80.31

14

AH collar screw DIN 912 M5x16

0912050163

$1.49

15

TANK REST RUBBER 08

69007014000

$13.64

16

HH collar screw M6x30 TX30

0025060306

$3.08

17

COLLAR BUSH. 6,2X10X21X14MM 08

69007028000

$5.23

18

rubber grommet, tank mounting

69007027000

$3.08

19

AH SCREW DIN0912-M 5X12

0912050123

$2.05

22

DISTANCE RUBBER 14X8

69007040010

$6.18

23

DISTANCE RUBBER 17,8X16

69007040020

$5.92

24

DISTANCE RUBBER 18X8

69007040030

$7.38

25

WASHER RC8

69008026060

$3.08

21

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable
