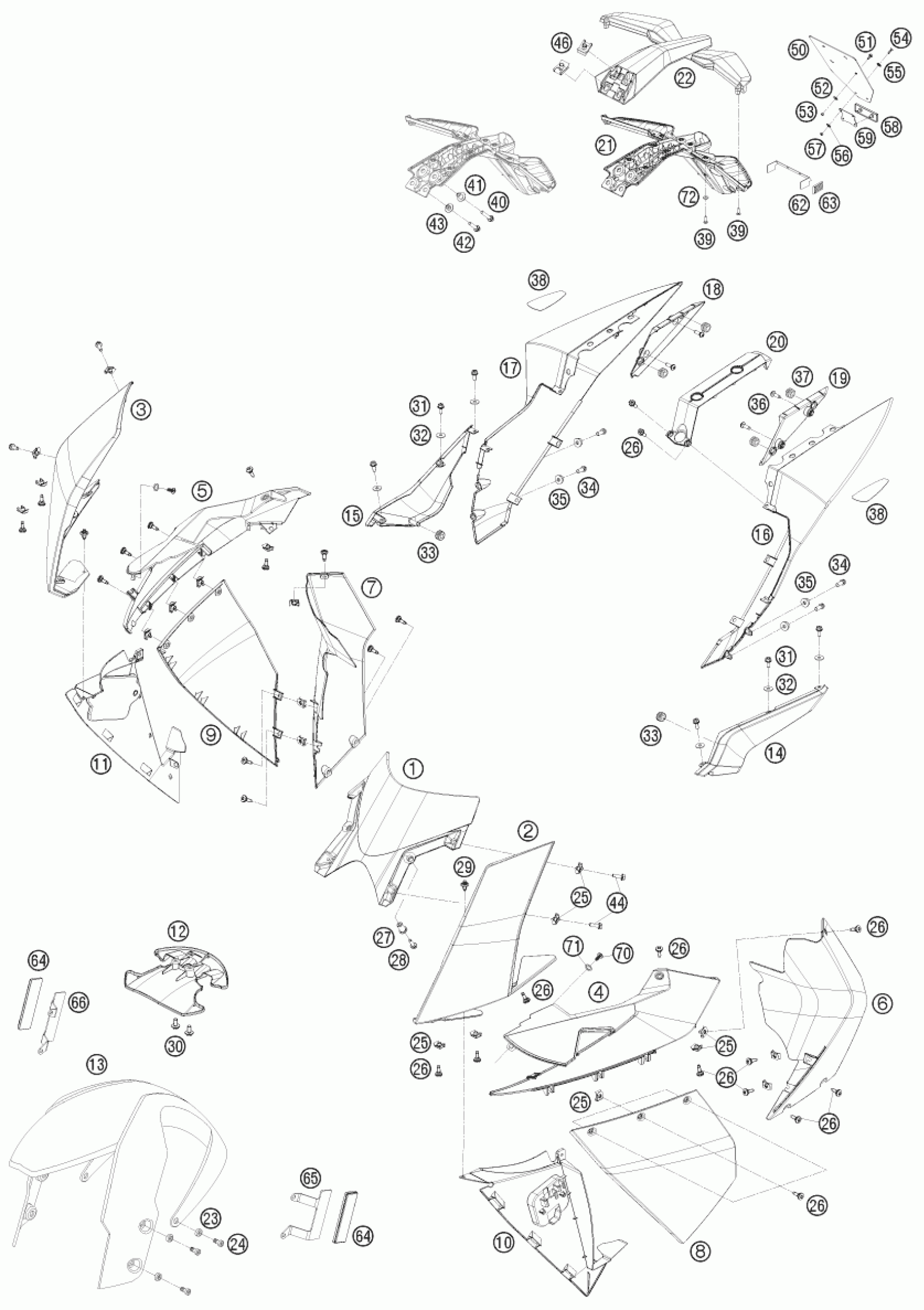

KTM RC 8 ORANGE 08 / PS 09 <2008> MASK, FENDERS Diagram

#

Description
Price

2

FR.FAIR.UP.PART L/S ORBR RC8

6900800100077A

Unavailable

3

FR.FAIR.UP.PART R/S OR.BRRC8

6900800200077A

Unavailable

4

FR.FAIR.LO.PART L/S OR.MA. RC8

6900800300075A

Unavailable

5

FR.FAIR.LO.PART R/S OR.MA. RC8

6900800400075A

Unavailable

6

EXIT-AIR SHAFT L/S BL.MATT RC8

6900805200033A

Unavailable

7

EXIT-AIR SHAFT R/S BL.MATT RC8

6900805300033A

Unavailable

8

COOLER FAIRING L/S OR. BR. RC8

6900805000077A

Unavailable

9

COOLER FAIRING R/S OR. BR. RC8

6900805100077A

Unavailable

10

FRESH-AIR SHAFT L/S BL. MA.08

6900802200033

Unavailable

11

FRESH-AIR SHAFT R/SBL. MA.08

6900802300033

Unavailable

12

UP. FRESH-AIR SHAFT BL. MA. 08

6900802100033

Unavailable

13

FRONT FENDER OR. MATT 08

6110801000075A

Unavailable

14

SIDE COVER L/S BL. BR. RC8

6900804300030A

Unavailable

15

SIDE COVER R/S BL. GL. RC8

6900804400030A

Unavailable

16

REAR FAIRING L/S BL. BR. RC8

6900804100030A

Unavailable

17

REAR FAIRING R/S BL. BR. RC8

6900804200030A

Unavailable

18

REAR LIGHT ADAPTER R/S

69008039000

Unavailable

19

REAR LIGHT ADAPTER L/S

69008038000

Unavailable

20

UPPER REAR END PANEL

6900803100033

Unavailable

21

LICENSE PLATE BRACKET LO.PART

69008016000

Unavailable

22

LICENSE PLATE BRACKET UP.PART

69008015000

Unavailable

23

SPECIAL WASHER

61108045000

Unavailable

24

Cap head bold ISO 14580 M6x16

014580060166

Unavailable

25

clip nut M5

69008021080

Unavailable

26

special screw M5x17

69008021060

Unavailable

27

blind plug nut M5 WN16A

60008008050

Unavailable

28

HH collar screw M5x16 TX30

0025050166

Unavailable

29

Spread rivet cmpl. 6.2mm

76503075000

Unavailable

30

HH collar screw M6x13 TX30

0024060136

Unavailable

31

SCREW TORX M5X10 05

58605083010

Unavailable

32

Washer tail section UT D=14mm

75008023000

Unavailable

33

rubber grommet D=8mm open

31008060000

Unavailable

34

HH collar screw M8x20

0025080206

Unavailable

35

WASHER MOUNT. REAR FAIRING

69003004050

Unavailable

36

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

37

RUBBER SLEEVE 10X14X20 08

69014078000

Unavailable

38

PASSENGER´S SEAT PLATE KIT

69007047050

Unavailable

65

BRACKET F. SIDE REFLECTOR L/S

69012080050

Unavailable

66

BRACKET F. SIDE REFLECTOR R/S

69012080060

Unavailable

70

EJOT PT SCREW K60X12 1451

0081060121

Unavailable

71

WASHER PA 8,3X12X5

69008003050

Unavailable

39

SCREW FOR PLASTIC K40X16 T20

0081040161

Unavailable

40

HH collar screw M6x25 TX30

0025060256

Unavailable

41

COLLAR BUSH. 6,2X10X21X14MM 08

69007028000

Unavailable

42

HH collar screw M6x20 TX30

0025060206

Unavailable

43

BUSHING LICENSE PLATE BRACKET

69008020000

Unavailable

44

HH collar screw M5x20 TX30

0025050206

Unavailable

50

license plate mouning plate

60012081200

Unavailable

51

HH collar screw M6x15 TX30

0024060156

Unavailable

52

Washer DIN9021-A 6.4

0021060003

Unavailable

53

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

54

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

55

WASHER 6MM

40006006000

Unavailable

56

WASHER DIN0125-A 5,3

0125050003

Unavailable

57

Self locking nut DIN 985 M5

0985050003

Unavailable

58

REFLECTOR RED

58412080000

Unavailable

59

BRACKET FOR REFLECTOR

58412080050

Unavailable

62

BRACKET SIDE REFLECTOR 06

62512081000

Unavailable

63

SIDE REFLECTOR RED REAR

16512180100

Unavailable

64

SIDE REFLECTOR YELLOW 03

60012080000

Unavailable

1

FAIRING SCREEN HIGH 08

69008008000

Unavailable

46

clip nut M6

54603048100

Unavailable

72

WASHER DIN9021-A 4,3

0021040003

Unavailable
