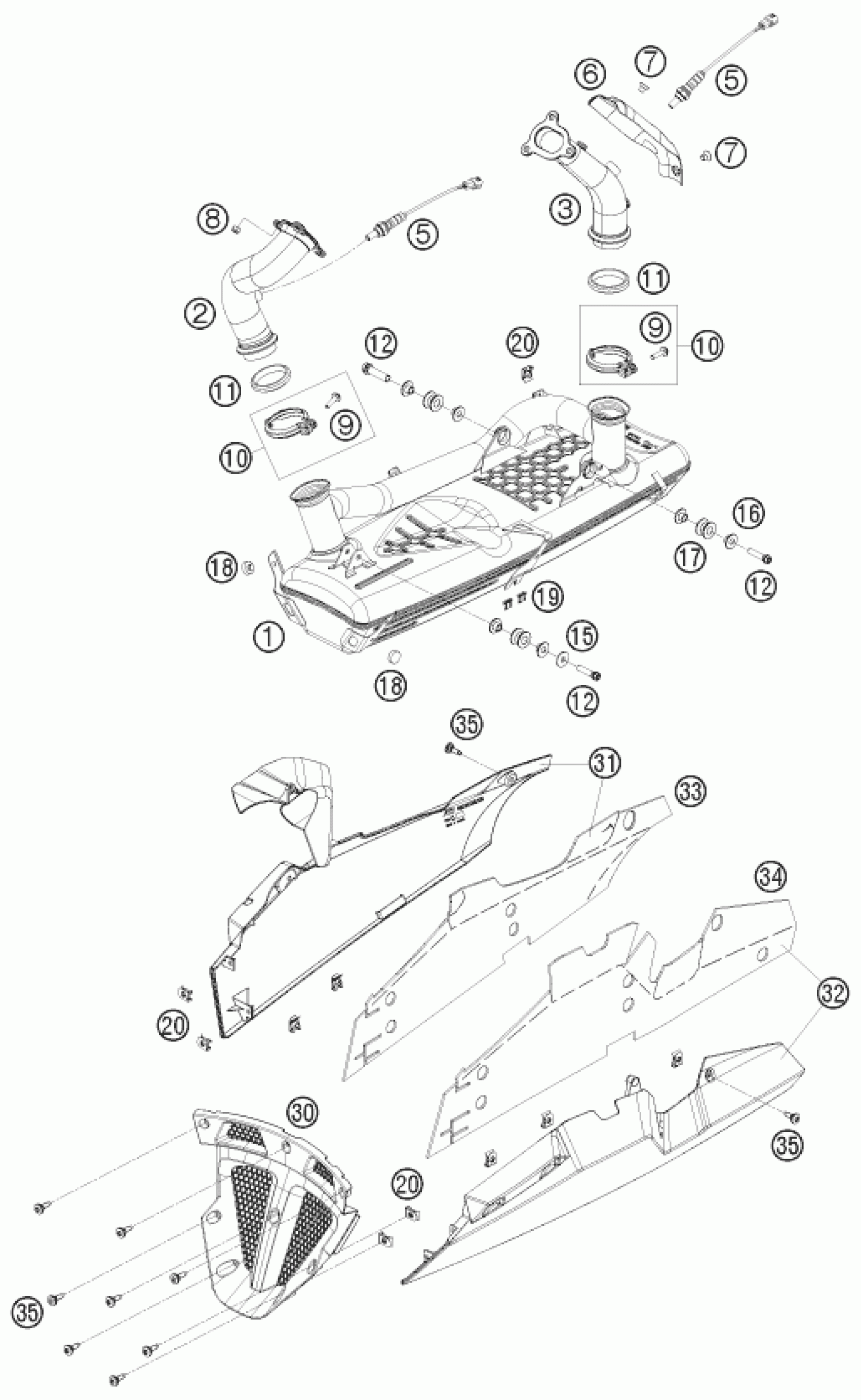

KTM RC 8 ORANGE 08 / PS 09 <2008> EXHAUST SYSTEM Diagram

#

Description
Price

3

EXHAUST PIPE REAR CPL.

69005008000

Unavailable

7

FLAT H.SCREW M6X8 DIN7991 NIRO

0991060082

Unavailable

8

self-locking nut M8 Cu

51010086100

Unavailable

9

HH COLLAR SCREW M6X25 TX30

0024060256

Unavailable

10

CLAMP CPL.

69005050000

Unavailable

5

LAMBDA SENSOR 05

61041090000

Unavailable

6

HEAT SHIELD REAR

69005011000

Unavailable

11

MANIFOLD GASKET

69005005005

Unavailable

31

EXH. COV. R/S CPL. BL. BR. RC8

6900805603330A

Unavailable

32

EXH. COV. L/S CPL. BL. BR. RC8

6900805503330A

Unavailable

12

HH COLLAR SCREW M8X35 TX40

0025080356S

Unavailable

1

SILENCER CPL. RC8 USA 08

69005183000

Unavailable

33

HEAT SHIELD F. EXH. COVER R/S

69005083092

Unavailable

34

HEAT SHIELD F. EXH. COVER L/S

69005083093

Unavailable

35

special screw M5x17

69008021060

Unavailable

2

EXHAUST PIPE FRONT CPL.

69005007000

Unavailable

15

WASHER DIN9021-A 8,4

0021080003

Unavailable

16

collar bushing 8.5x12x23.5x10

58405050065

Unavailable

17

damp. component silicone grey

54305068100

Unavailable

18

RUBBER BUFFER

54308042000

Unavailable

19

DAMP. COMPON. SILICONE GREY 05

61005091000

Unavailable

20

clip nut M5

69008021080

Unavailable

30

KEEL COVER

6900806000033

Unavailable
