Description

Price

41

AXLE CLAMP CPL. WITH PIPE L/S

90101006144

$351.18

1

FORK LEG L/S CPL.

90801001100

$669.08

40

WHEEL CLAMP CPL. WITH PIPE R/S

90101007044

$289.00

22

AH SCREW M8X1.25X30

90501045000

$1.49

4

Lower triple clamp cpl.

9010103210033

$434.11

5

STEERING HEAD BEARING-KIT

90101080044

Unavailable

6

protection cap

90101086000

$3.08

7

adjusting ring steering head

90101036000

$5.88

8

steering head screw

90501044000

$13.92

9

HOSE CLAMP

90113055000

$7.28

10

sleeve for hose clamp

90113055010

$1.49

11

AH SCREW M6X15 10.9

J021060156

$1.49

18

Dirt scarper SKF 43mm black

43570624

$16.73

19

Shaft seal SKF 43x52,9x11,4 bl

43570623

$16.63

20

Guide bushing 43x47x12

43570618

$11.68

21

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

98

REP. KIT FORK KPL.

90101000010

Unavailable

12

BRACKET SIDE REFLECTOR FR R/S

90512181000

$4.11

13

BRACKET SIDE REFLECTOR FR L/S

90512081000

$5.23

2

FORK LEG R/S CPL.

90801002100

$600.73

14

SIDE REFLECTOR FRONT

90512082000

$5.23

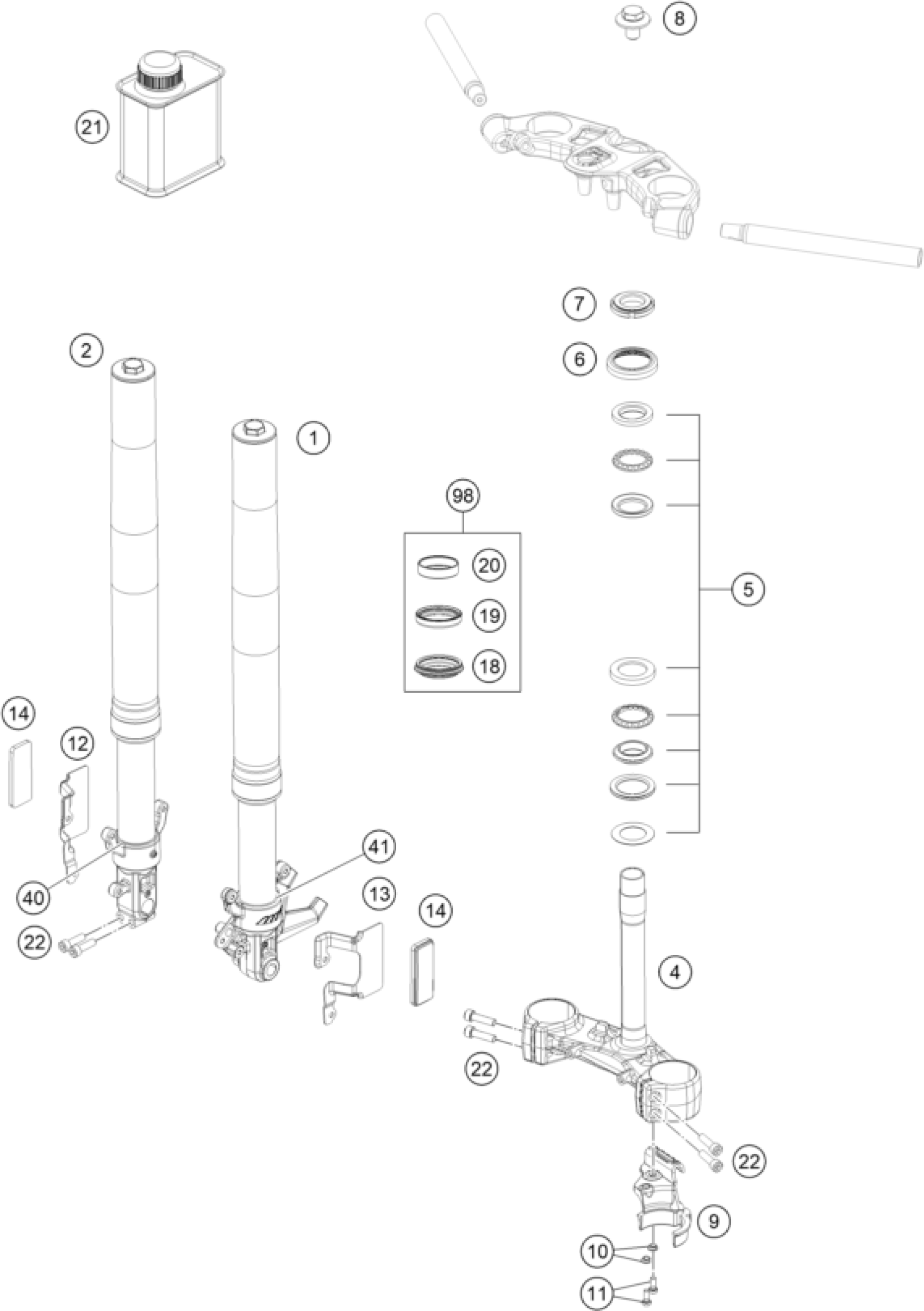

KTM RC 390 WHITE ABS B.D. 16 <2016 FRONT FORK, TRIPLE CLAMP Diagram

AXLE CLAMP CPL. WITH PIPE L/S

FORK LEG L/S CPL.

WHEEL CLAMP CPL. WITH PIPE R/S

AH SCREW M8X1.25X30

Lower triple clamp cpl.

STEERING HEAD BEARING-KIT

protection cap

adjusting ring steering head

steering head screw

HOSE CLAMP

sleeve for hose clamp

AH SCREW M6X15 10.9

Dirt scarper SKF 43mm black

Shaft seal SKF 43x52,9x11,4 bl

Guide bushing 43x47x12

Fork Fluid Viscosity 4.0 5L

REP. KIT FORK KPL.

BRACKET SIDE REFLECTOR FR R/S

BRACKET SIDE REFLECTOR FR L/S

FORK LEG R/S CPL.

SIDE REFLECTOR FRONT
