LIGHTING SYSTEM

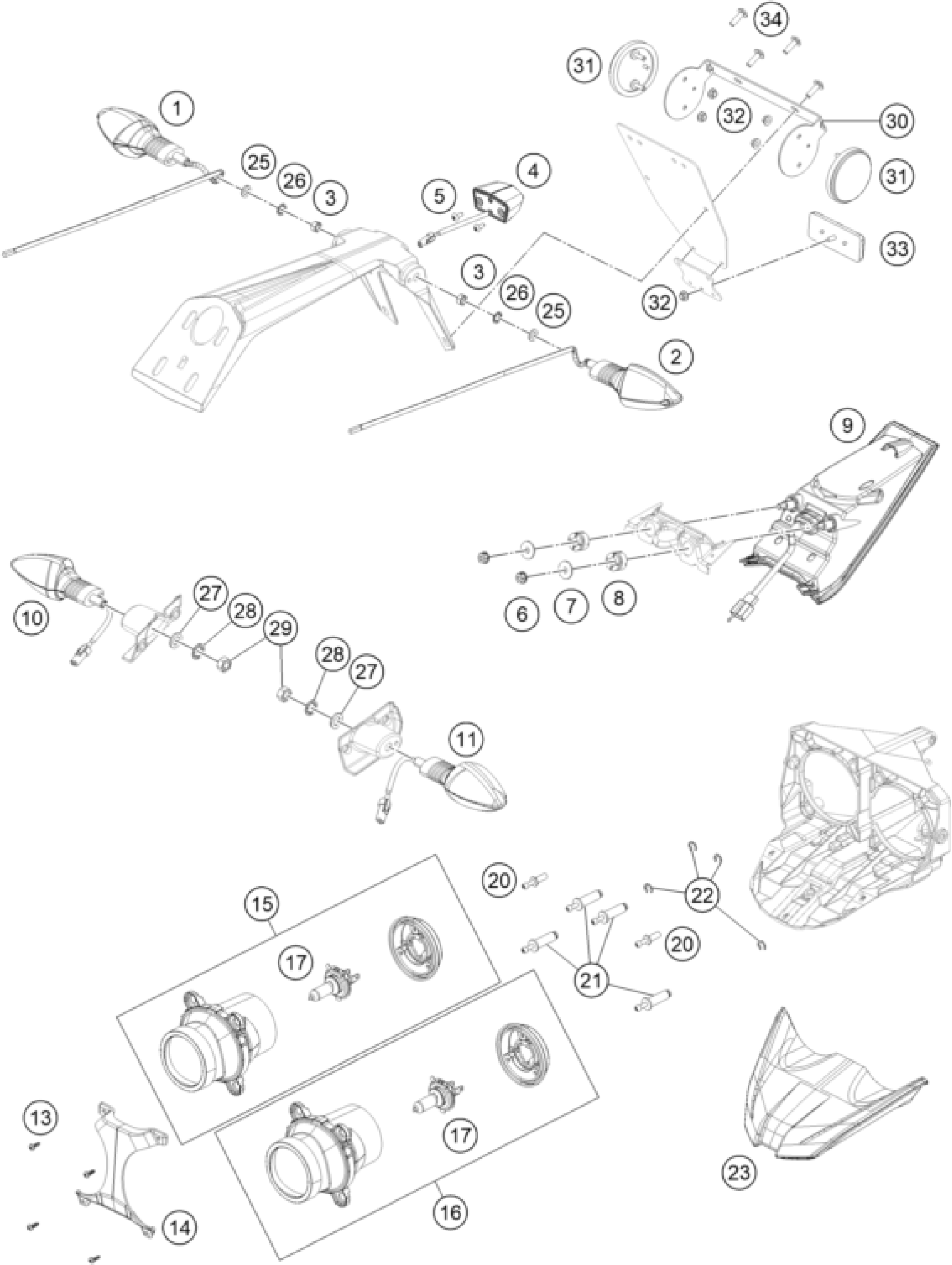

KTM RC 390 WHITE ABS B.D. 15 <2015> LIGHTING SYSTEM Diagram
#
Description
Price
2
INDICATOR CPL. RR L/S USA
90514525044
Unavailable
3
FLANGED NUT M10X1.25 WS14
90103038002
Unavailable
4
LICENSE PLATE ILLUMINATION
90114047000
Unavailable
5
SHEET MET.SCR. DIN 7981 3,5X13
J981350133
Unavailable
6
FLANGED NUT M6 WS10 SELF LOCK.
J926060000
Unavailable
1
INDICATOR CPL. RR R/S USA
90514526044
Unavailable
7
PLAIN WASHER
90814044000
Unavailable
8
GROMMET TOP COVER
90107013004
Unavailable
9
REAR LIGHT CPL.
90814040000
Unavailable
10
LAMP SIGNAL FRONT R/S USA
90514526000
Unavailable
11
LAMP SIGNAL FRONT L/S USA
90514525000
Unavailable
13
SHEET MET.SCR. DIN 7981 3,5X13
J981350133
Unavailable
14
COVER POSITION LAMP
90514007000
Unavailable
15
HEADLIGHT HIGH BEAM
90514502044
Unavailable
16
HEADLIGHT LOW BEAM
90514001100
Unavailable
17
BULB H11 55W
90514003050
Unavailable
20
FASTENING BOLT HEADLAMP
90514013010
Unavailable
21
adjuster screw projector
90514019000
Unavailable
22
CIRCLIP D=6
90514013030
Unavailable
23
LAMP PARKING LIGHT
90514004000
Unavailable
25
WASHER PLAIN 10,5
J125100003
Unavailable
26
TOOTHED WASHER M10
J797100003
Unavailable
27
WASHER PLAIN 10,5
J125100003
Unavailable
29
HEX NUT M10X1,25
90114030000
Unavailable
30
BRACKET SIDE REFLECTOR REAR
90212581000
Unavailable
31
SIDE REFLECTOR REAR
90212582000
Unavailable
32
HH COLLAR NUT
90204060001
Unavailable
33
REFLECTOR
90514045000
Unavailable
34
AH SCREW M6X1X20
90508006003
Unavailable
28
TOOTHED WASHER M10
J797100003
Unavailable
