Description

Price

1

FORK LEG R/S CPL.

90801002000

$610.36

2

AH SCREW M8X1.25X30

90501045000

$1.49

12

HOSE CLAMP

90113055000

$7.28

13

sleeve for hose clamp

90113055010

$1.49

14

AH SCREW M6X15 10.9

J021060156

$1.49

40

WHEEL CLAMP CPL. WITH PIPE R/S

90101007044

$289.00

41

AXLE CLAMP CPL. WITH PIPE L/S

90101006144

$351.18

5

STEERING HEAD BEARING-KIT

90101080044

Unavailable

6

protection cap

90101086000

$3.08

7

adjusting ring steering head

90101036000

$5.88

1

FORK LEG L/S CPL.

90801001000

$674.87

4

Lower triple clamp cpl.

9010103210033

$434.11

8

steering head screw

90501044000

$13.92

21

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

98

REP. KIT FORK KPL.

90101000010

Unavailable

9

BRACKET SIDE REFLECTOR FR L/S

90512081000

$5.23

10

BRACKET SIDE REFLECTOR FR R/S

90512181000

$4.11

11

SIDE REFLECTOR FRONT

90512082000

$5.23

18

Dirt scarper SKF 43mm black

43570624

$16.73

19

Shaft seal SKF 43x52,9x11,4 bl

43570623

$16.63

20

Guide bushing 43x47x12

43570618

$11.68

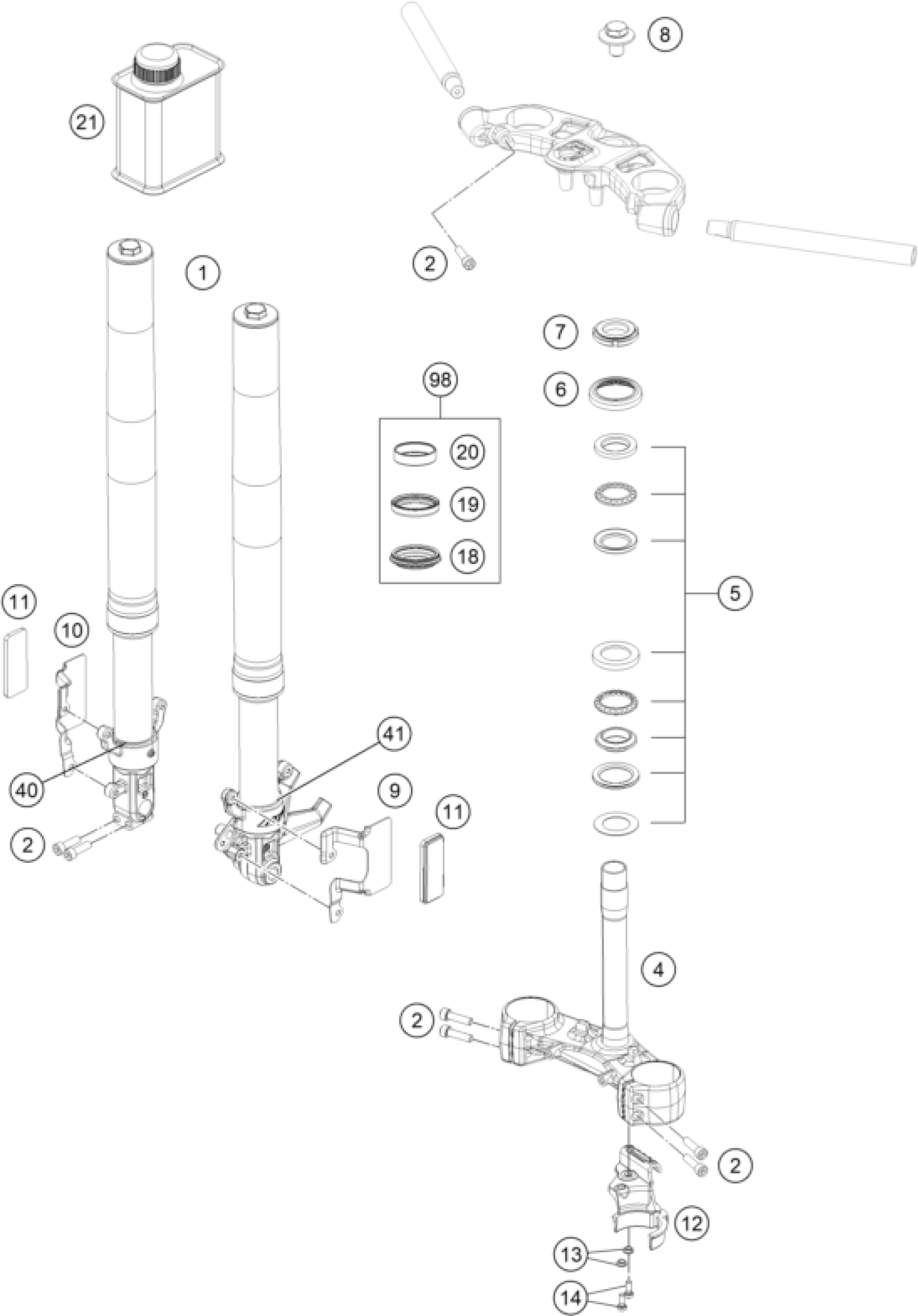

KTM RC 390 WHITE ABS B.D. 15 <2015 FRONT FORK, TRIPLE CLAMP Diagram

FORK LEG R/S CPL.

AH SCREW M8X1.25X30

HOSE CLAMP

sleeve for hose clamp

AH SCREW M6X15 10.9

WHEEL CLAMP CPL. WITH PIPE R/S

AXLE CLAMP CPL. WITH PIPE L/S

STEERING HEAD BEARING-KIT

protection cap

adjusting ring steering head

FORK LEG L/S CPL.

Lower triple clamp cpl.

steering head screw

Fork Fluid Viscosity 4.0 5L

REP. KIT FORK KPL.

BRACKET SIDE REFLECTOR FR L/S

BRACKET SIDE REFLECTOR FR R/S

SIDE REFLECTOR FRONT

Dirt scarper SKF 43mm black

Shaft seal SKF 43x52,9x11,4 bl

Guide bushing 43x47x12
