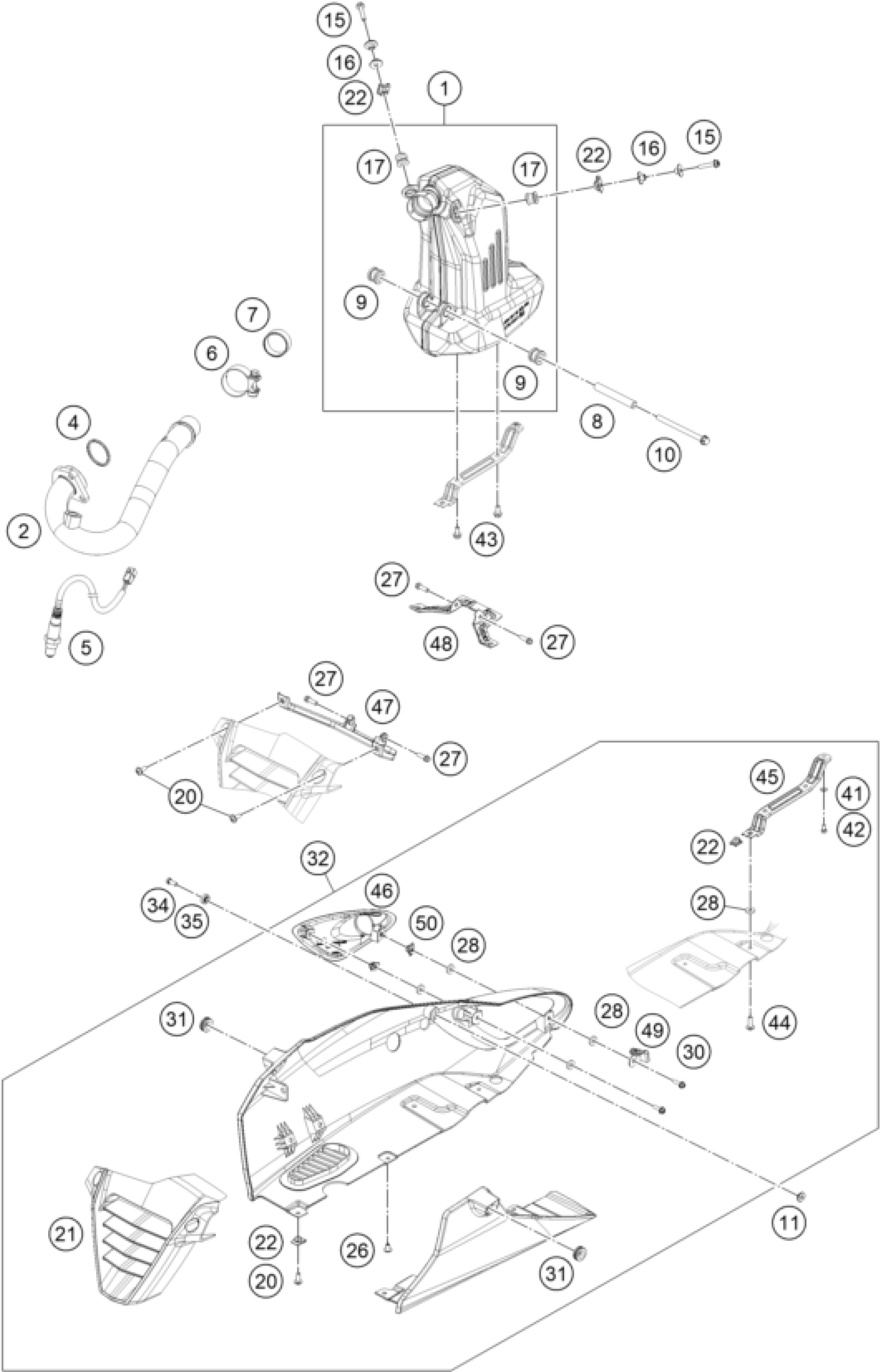

KTM RC 390 WHITE ABS B.D. 15 <2015> EXHAUST SYSTEM Diagram

#

Description
Price

28

WASHER ASBESTOS

90505090050

Unavailable

30

HH COLLAR SCREW M5X20

J025050203

Unavailable

34

BOLT SOCKET M6X1XL

90808043001

Unavailable

43

HH COLLAR SCREW M6X14 SW10

J025060146

Unavailable

26

EXPANDING RIVET

90114062001

Unavailable

4

exhaust flange gasket

90105004000

Unavailable

5

oxygen sensor

90141090000

Unavailable

6

MUFFLER CLAMP

90205050000

Unavailable

7

GASKET MUFFLER

90205005005

Unavailable

8

muffler mounting tube

90105084000

Unavailable

9

damper, bottom

90105068100

Unavailable

10

HH COLLAR SCREW M8X110 SW12

J027081103

Unavailable

15

HH COLLAR SCREW M6X35 SW10

J026060356

Unavailable

16

muffler mounting spacer bushin

90205086001

Unavailable

17

damper, bottom

90205068000

Unavailable

21

RADIATOR SHROUD LOWER BLACK

9050802000033

Unavailable

27

HH COLLAR SCREW M6X20 SW10

J025060203

Unavailable

31

GROMMET SIDE FAIRING

90508055010

Unavailable

32

LOWER FAIRING CPL.

908081204428

Unavailable

35

SPECIAL WASHER

90508046000

Unavailable

44

AH SCREW M6X1X20

90508006003

Unavailable

22

clip nut

90103097000

Unavailable

46

HEAT PROTECTOR CPL.

90805090033

Unavailable

45

BRACKET BELLY PAN MOUNTING

90508028000

Unavailable

41

WASHER D=5,5

90508015010

Unavailable

42

ALLEN SCREW M5X10

J912050103

Unavailable

47

BRACKET BELLY PAN FRONT

90808026001

Unavailable

48

BRACKET BELLY PAN REAR

90808027001

Unavailable

49

BRACKET END CAP

90805092000

Unavailable

50

CLIP NUT M5

90108050001

Unavailable

11

COLLAR BELLY PAN

90508029000

Unavailable

20

SPECIAL SCREW M6X1X16

90808043000

Unavailable

1

SILENCER

90805083400

Unavailable

2

MUFFLER CPL.

90205007000

Unavailable
