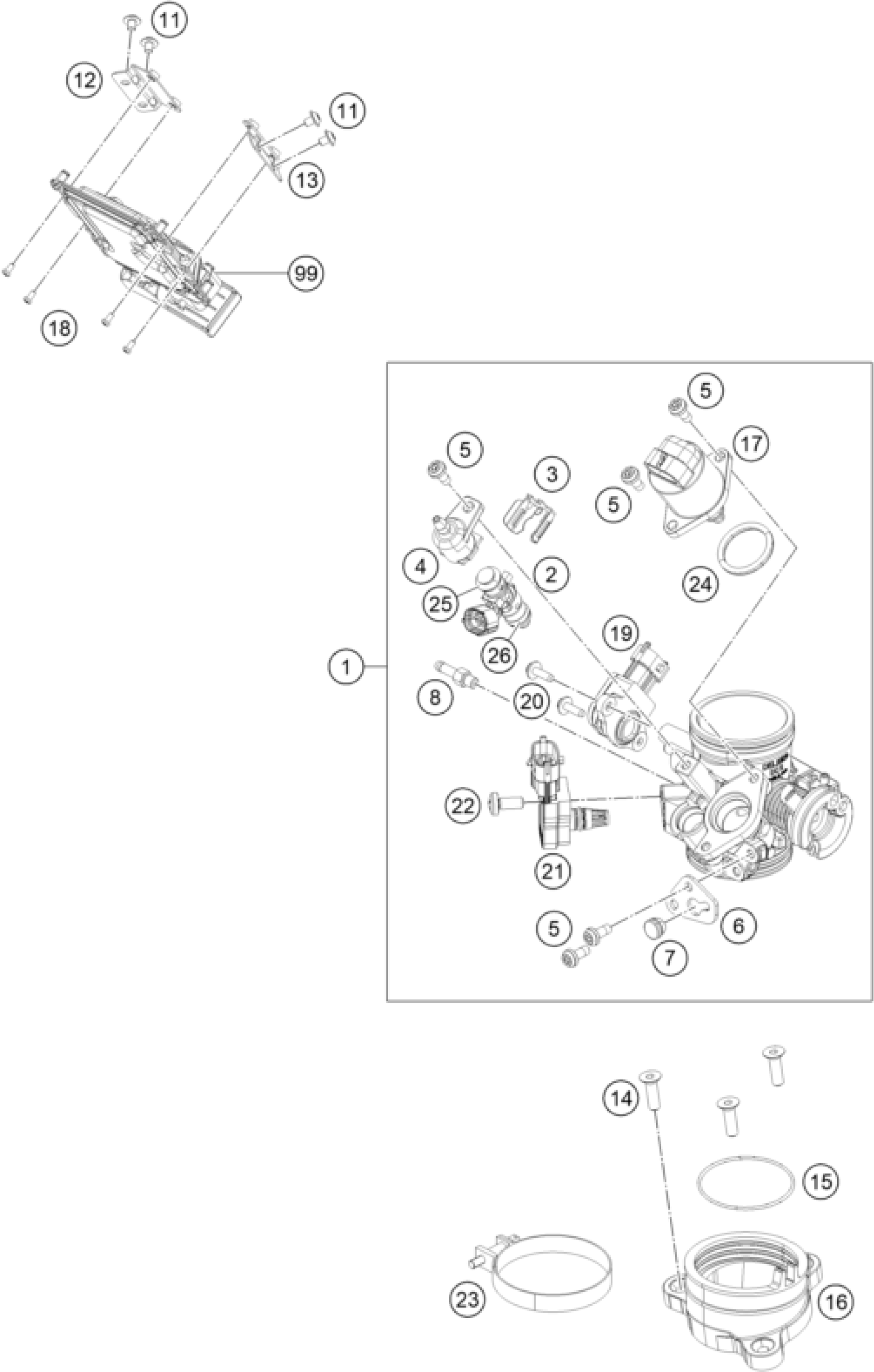

KTM RC 390 WHITE ABS B.D. 15 <2015> THROTTLE BODY Diagram

#

Description

Price

11

SOCKET HEAD BOLT M6X1X8

90508006004

Unavailable

1

THROTTLE BODY CPL.

90241001100

Unavailable

2

FUEL INJECTOR

90241023000

Unavailable

3

INJECTOR CLIP

90141001001

Unavailable

4

CONNECTOR FUEL RAIL

90141023004

Unavailable

5

SPECIAL SCREW M5X12

90141023005

Unavailable

6

CABLE SUPPORT

90141023002

Unavailable

7

GROMMET

90141023003

Unavailable

8

NOZZLE EVAP

90641801001

Unavailable

12

BRACKET ECU R/S

90514030000

Unavailable

13

BRACKET ECU L/S

90514029000

Unavailable

14

COUNTERSUNK SCREW M6X20

J991060203S

Unavailable

15

O-RING 53X2,4

J770053024

Unavailable

16

PIPE INTAKE

90241002000

Unavailable

17

IDLE ADJUSTER

90641072000

Unavailable

19

THROTTLE POSITION SENSOR

90141070000

Unavailable

20

SPECIAL SCREW M4X13

90141070001

Unavailable

21

TMAP-SENSOR

90141071000

Unavailable

22

SPECIAL SCREW M6X14

90141071001

Unavailable

23

hose clamp

90241002010

Unavailable

18

FLAT HEAD SCREW M4X8 PH

J005040081

Unavailable

24

O-RING

90141072001

Unavailable

99

ECU RAW PART

90141031100

Unavailable

25

O-ring

55641023020

Unavailable

26

O-ring

55641023010

Unavailable
