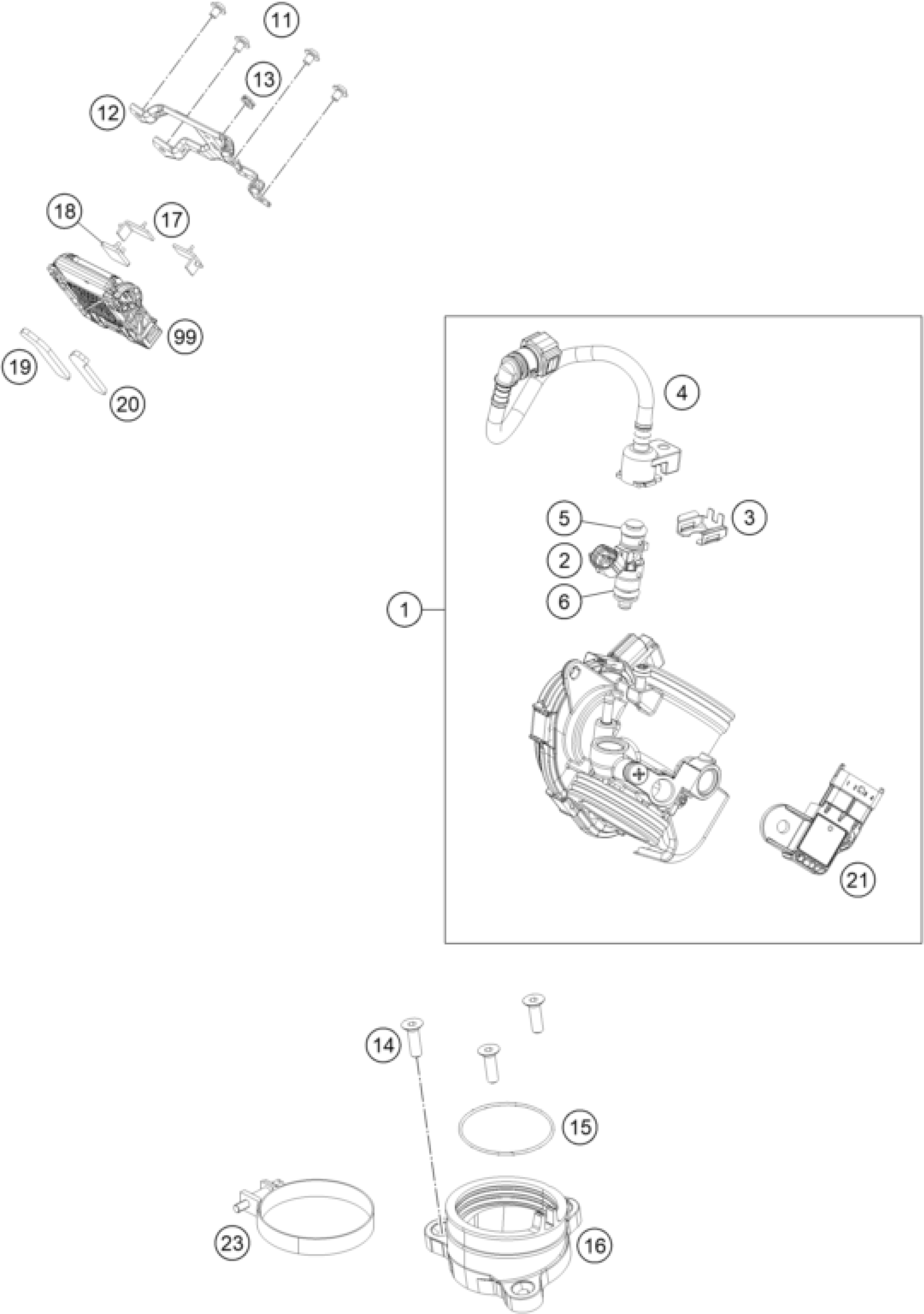

KTM RC 390 WHITE / ABS 2016 THROTTLE BODY Diagram

#

Description
Price

1

THROTTLE BODY

93841001000

$688.34

2

FUEL INJECTOR

90241023000

$130.52

3

INJECTOR CLIP

90141001001

$3.08

17

rubber band, ECU

93841036000

$22.99

18

rubber band, ECU, top

93841032000

$22.99

19

rubber band, ECU, right

93841035000

$2.05

20

rubber band, ECU, left

93841030000

$2.05

11

SOCKET HEAD BOLT M6X1X8

90508006004

$1.49

12

BRACKET ECU MTG TOP

93807017001

$22.43

14

COUNTERSUNK SCREW M6X20

J991060203S

$1.49

15

O-RING 53X2,4

J770053024

$4.11

16

PIPE INTAKE

90241002000

$29.35

21

TMAP-SENSOR

90141071000

$79.19

23

hose clamp

90241002010

$5.23

4

FUEL HOSE CPL.

93841034000

$27.57

13

DAMPER ECU

93541034000

$11.49

99

Control unit

93841031000

$438.51

5

O-ring

55641023020

$10.56

6

O-ring

55641023010

$7.66
