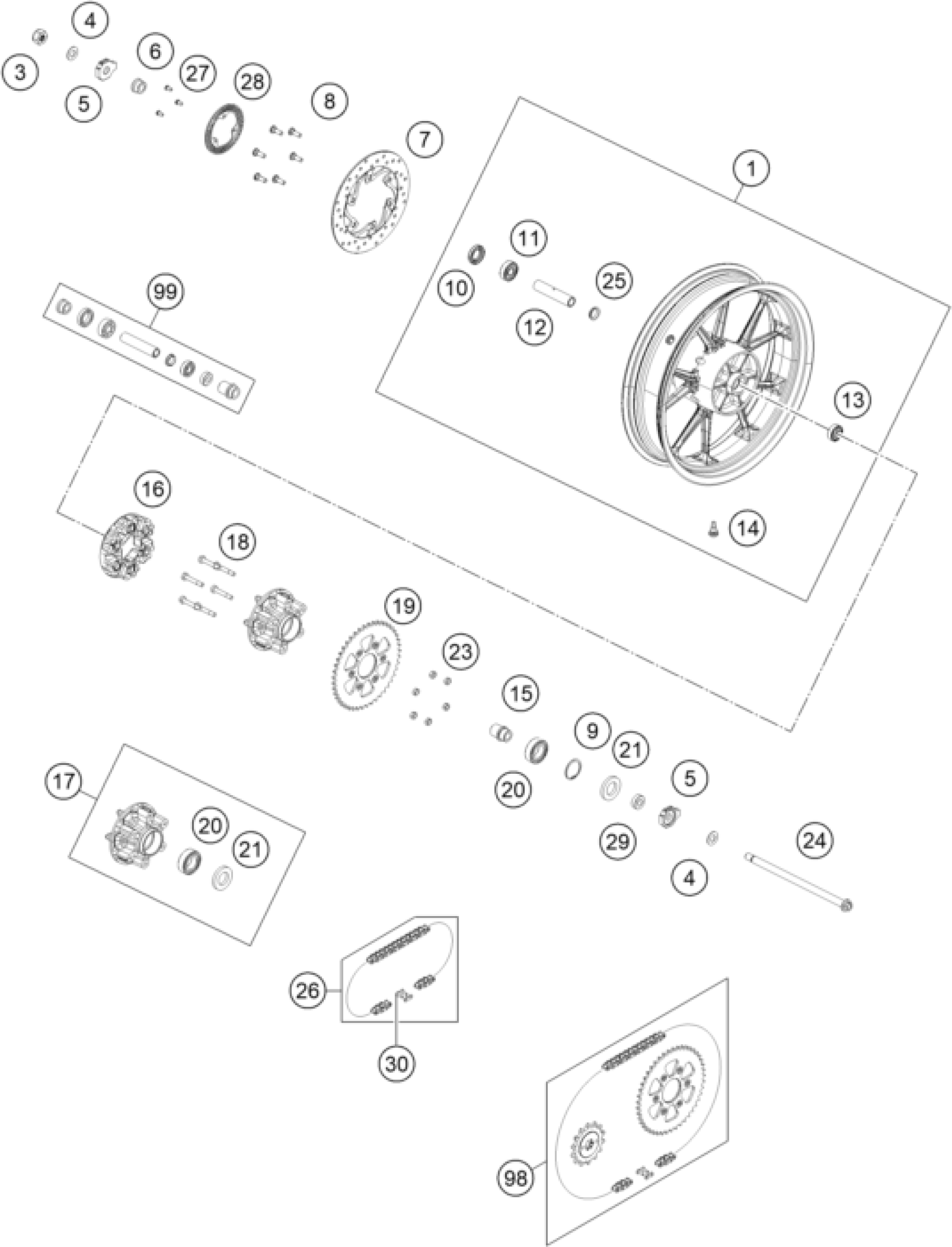

KTM RC 390 WHITE / ABS 2016 REAR WHEEL Diagram

#

Description
Price

3

wheel spindle nut, rear

90210086000

$3.08

1

REAR WHEEL CPL. - ORANGE

9021000104404

$342.32

4

washer 15.2x30x2

90610087000

$1.49

5

chain tension adjuster, right

90110084000

$7.10

6

SPACER BUSHING REAR WHEEL R/S

90110013000

$6.54

7

rear brake disk D=230mm

90110060000

$76.94

8

SPECIAL SCREW M8X25 SELF LOCK.

90110062000

$3.08

10

SHAFT SEAL RING 26X42X8

J760264208

$3.08

11

BALL BEARING 6302

J625063020

$13.64

12

BEARING SPACER TUBE REAR

90110011000

$12.61

13

BALL BEARING 6202

J625062021

$11.40

14

VALVE CPL.

90109076000

$7.10

15

SPACER BUSHING KRT INSIDE

90610054000

$10.09

16

rear wheel dampening rubber

90210059100

$5.23

17

SPROCKET SUPPORT

90210050000

$57.96

18

SPECIAL SCREW M8X48

90810052000

$2.05

19

rear sprocket 45 teeth

90510051045

$54.50

20

BALL BEARING 6205

J625062050

$14.86

21

SHAFT SEAL RING 29X52X7

J760295207

$5.23

23

FLANGED NUT M8X1,25

90510052000

$1.49

24

Axle rear KT03

90210085000

$16.07

25

Fixation bearing spacer tube

90109011001

$1.49

26

chain DID 118 roll

76910065118

$128.83

27

SCREW FOR ABS

90142021001

$1.49

28

SENSOR DISC REAR

90142021000

$8.13

29

SPACER CHAIN WHEEL SUPPORT

90110053000

$5.23

98

DRIVETRAIN KIT 390 DUKE 2015

00050002059

Unavailable

99

REAR WHEEL REP. KIT 390 DUKE

90110015100

Unavailable

9

CIRCLIP

J472042170

$1.49

30

Rivet link chain DID 520 VP2-T

76910066000

Unavailable
