Description

Price

2

HANDLEBAR R/S

93802001100

$23.18

3

HANDLEBAR L/S

93802001000

$23.18

4

THROTTLE GRIP

93702010033

$7.28

5

HAND GRIP L/S

90802039000

$5.70

6

BOLT SOCKET M6X1X14

90511006100

$1.49

7

AH SCREW M8X1.25X30

90501045000

$1.49

8

START-EMERGENCY STOP SWITCH

93511074000

$220.93

9

light switch

90511070000

$50.58

11

BOOT CLUTCH LEVER

93802016000

$2.05

12

CLUTCH CABLE

90802090000

$15.51

13

SPECIAL SCREW M5x0,8X13

90511006000

$2.05

14

Clutch lever

93502031100

$14.76

15

CLUTCH LEVER CPL.

93502031000

$60.11

16

clutch switch

90511049000

$8.31

17

HANDLEBAR WEIGHT

90202004001

$7.28

18

BOLT SOCKET M6X55 BLACK

J912060551

$1.49

19

Top triple clamp

90501034135

$339.96

20

Screw pan cross M3x0.5

90232014002

$1.49

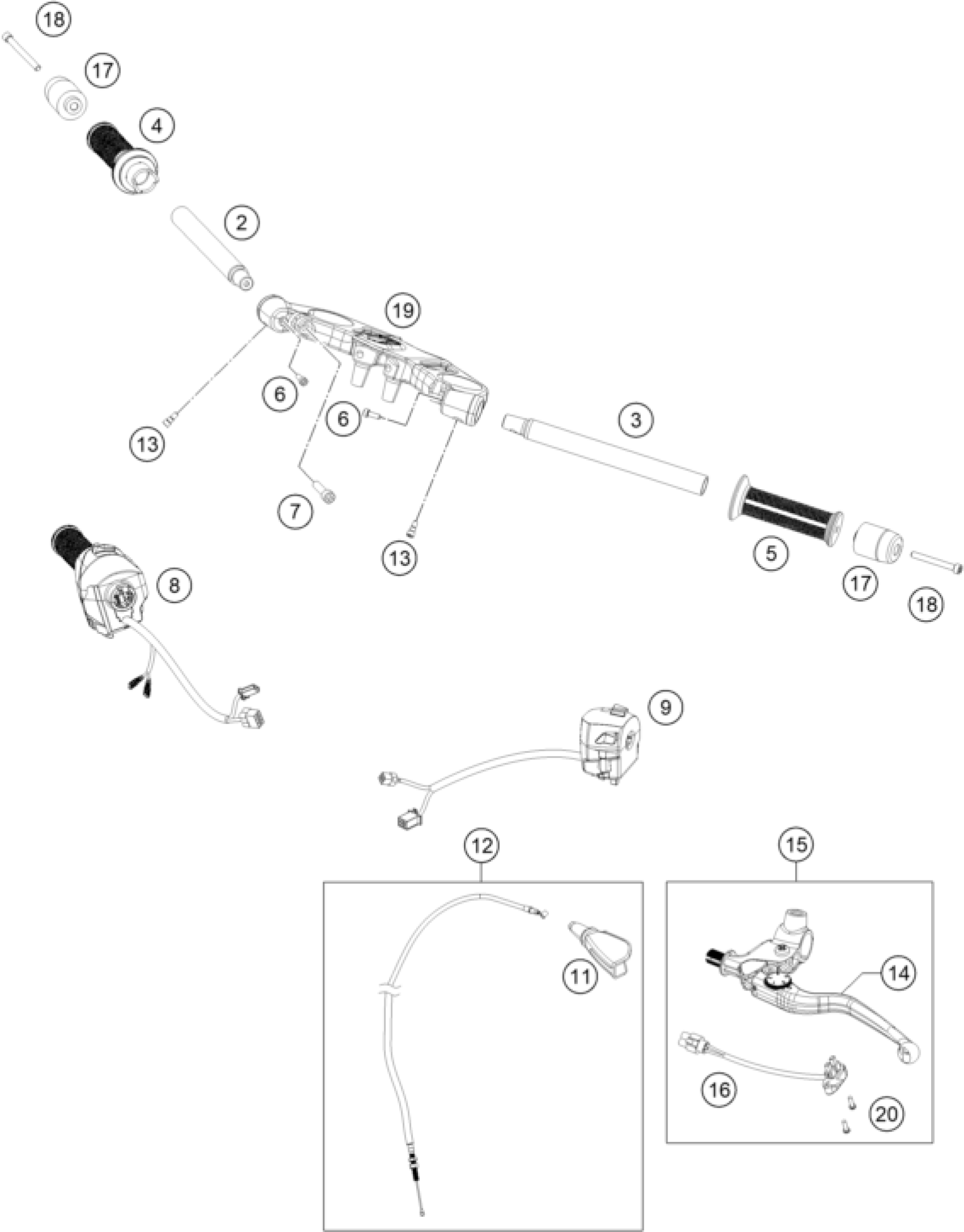

KTM RC 390 WHITE / ABS 2016 HANDLEBAR, CONTROLS Diagram

HANDLEBAR R/S

HANDLEBAR L/S

THROTTLE GRIP

HAND GRIP L/S

BOLT SOCKET M6X1X14

AH SCREW M8X1.25X30

START-EMERGENCY STOP SWITCH

light switch

BOOT CLUTCH LEVER

CLUTCH CABLE

SPECIAL SCREW M5x0,8X13

Clutch lever

CLUTCH LEVER CPL.

clutch switch

HANDLEBAR WEIGHT

BOLT SOCKET M6X55 BLACK

Top triple clamp

Screw pan cross M3x0.5
