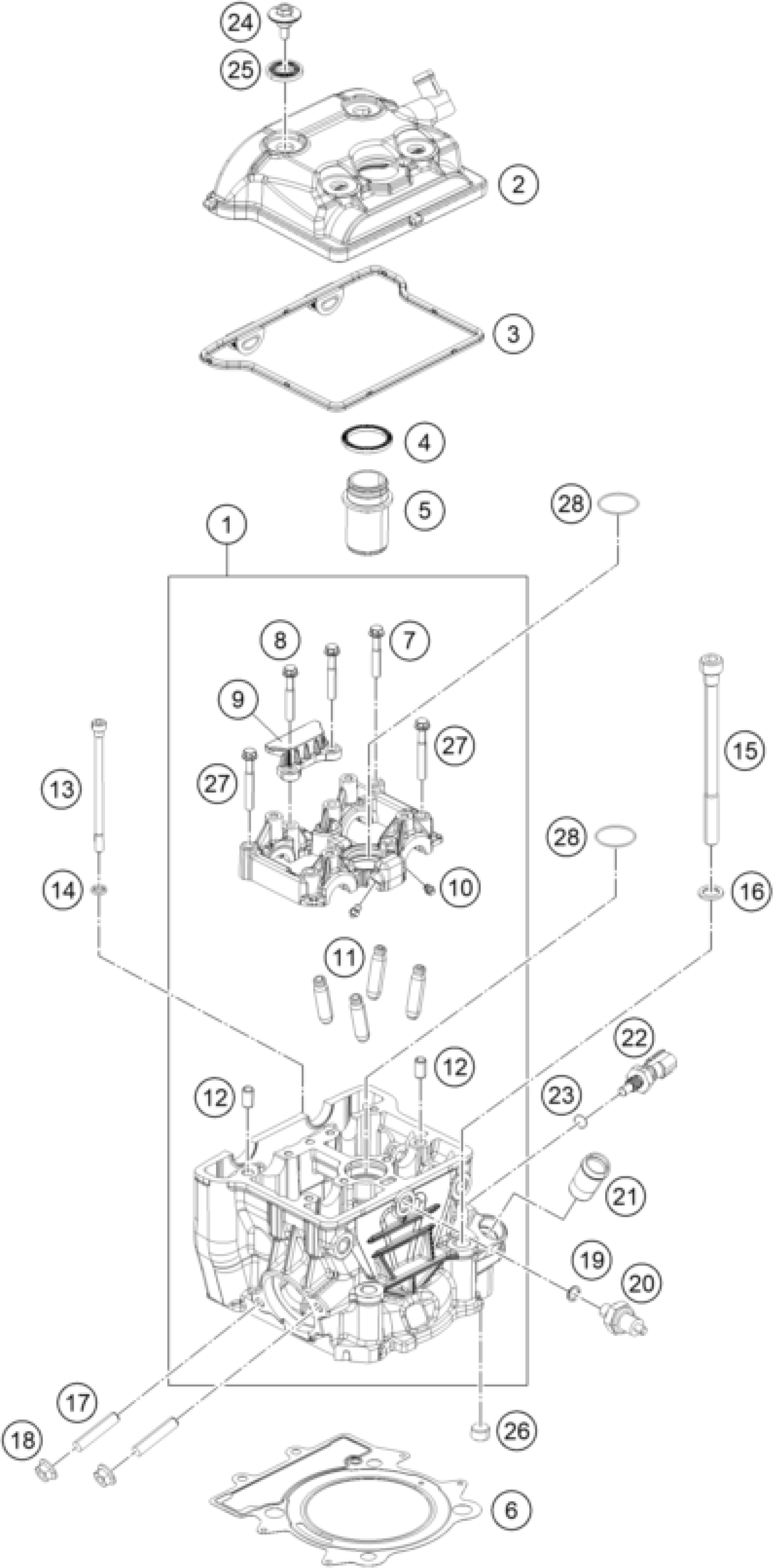

KTM RC 390 WHITE / ABS 2016 CYLINDER HEAD Diagram

#

Description
Price

1

Head Cylinder with Camholder

93836020033

$448.04

2

Valve mechanism cover cmpl.

93836052000

$25.64

3

Gasket rubber

93836053000

$20.75

4

GASKET SPARK PLUG SHAFT

90236054000

$3.08

5

SPARK PLUG SHAFT

90236074000

$17.48

6

Gasket Cylinder Head

93830036000

$35.33

7

Hexagon screw M6X35

J025060359

$1.49

8

HH COLLAR SCREW M6X45

J025060453

$1.49

9

CHAIN GUIDE TOP

90236018000

$4.11

10

OIL JET

90130064000

$6.07

11

VALVE GUIDE

90236025000

$3.08

12

PIN DOWEL 8X6,4X14MM

90130024000

$1.49

13

SOCKET HEAD SCREW M6X102

J912061023

$4.11

14

WASHER 7X11X2

J125070003

$1.49

15

SOCKET HEAD SCREW M10X144

J912101449

$6.35

16

WASHER 11,2X18X2

J125110003

$1.49

17

STUD M8

90136020001

$2.05

18

FLANGED NUT M8 H7,5 WS12

90136038000

$1.49

19

O-RING

90138091001

$2.05

20

OIL PRESSURE SENSOR

90138091000

$15.98

21

PIPE COOLANT

90235019000

$3.08

22

TEMPERATURE SENSOR

90135047000

$22.34

23

O-ring 7.65x1.78

J770000817800

$1.49

24

VALVE COVER SCREW

90136052020

$3.08

25

DECOUPLING ELEMENT

90136052010

$3.08

26

PLUG

90236024000

$2.05

27

HH COLLAR SCREW M6X40

J025060401

$1.49

28

O-RING 29,8X1,9

J770029819

$2.05

12

Dowel 8x6.3x10

J800000601002

$1.49
