Description

Price

1

Air box cpl.

93806015044

$125.66

2

Filter cover top cpl.

93506005033

$11.49

3

AIR INTAKE

90506040000

$16.73

18

WASHER 8,2X16X1,5

J125080003

$1.49

5

AIRFILTER

90106015000

$24.68

6

BREATHER TUBE

93830087000

$2.05

7

DRAIN TUBE

93806020000

$2.05

8

PLUG DRAIN

93806021000

$1.49

9

CLAMP 16MM

90607017000

$5.23

10

HOSE CLAMP

90106000004

$2.05

11

hose clamp

90241002010

$5.23

12

SILENT BLOCK AIRFILTER

90106001007

$5.88

13

HH COLLAR SCREW M6X8 SW10

J025060086

$1.49

14

HH COLLAR SCREW M6X12

J025060129

$1.49

15

Panhead screw M6

93008037000

$1.49

16

GARTER SPRING

90506028000

$5.23

17

OIL RETURN TUBE

93838034100

$23.37

19

Plug

93030089000

Unavailable

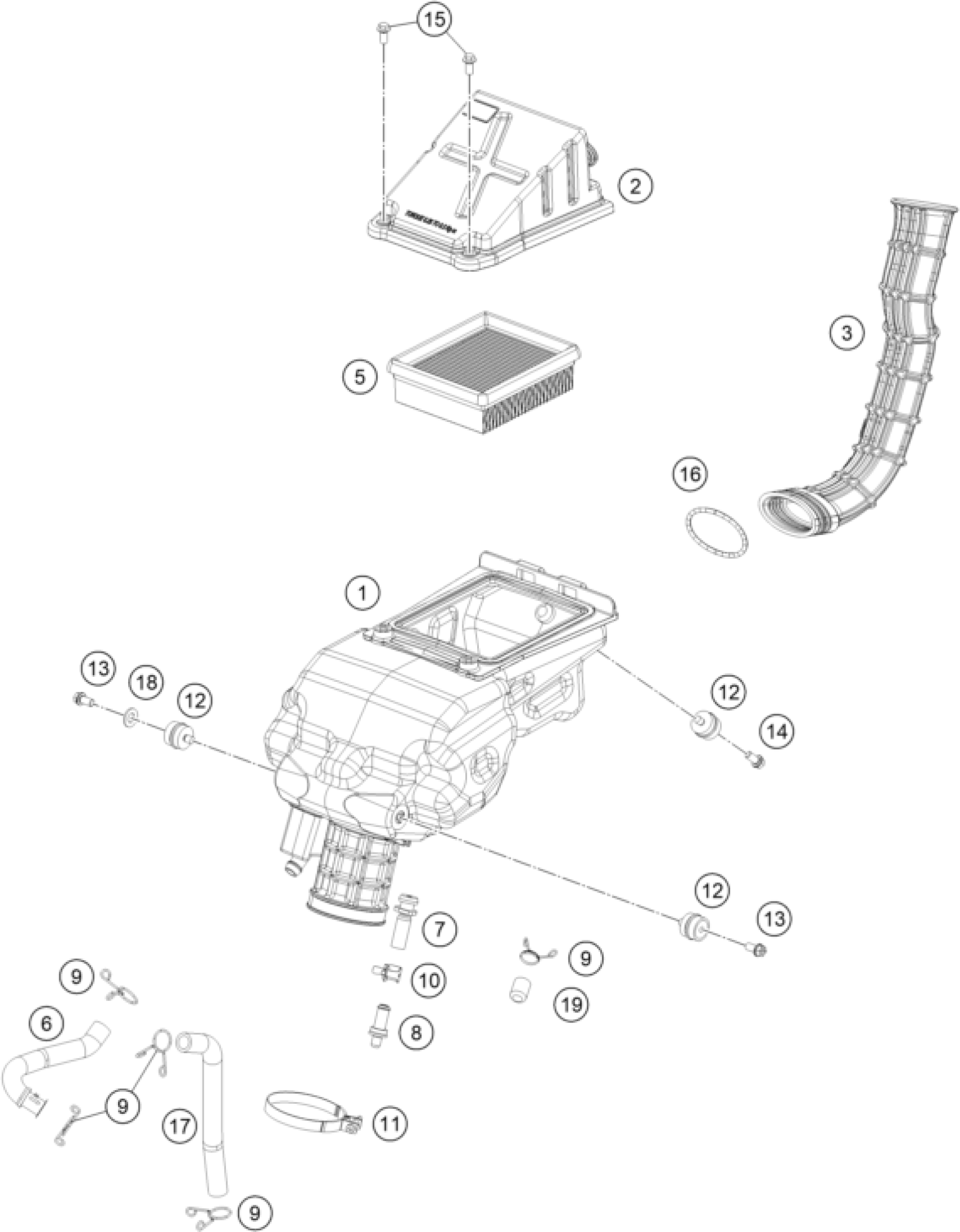

KTM RC 390 WHITE / ABS 2016 AIR FILTER Diagram

Air box cpl.

Filter cover top cpl.

AIR INTAKE

WASHER 8,2X16X1,5

AIRFILTER

BREATHER TUBE

DRAIN TUBE

PLUG DRAIN

CLAMP 16MM

HOSE CLAMP

hose clamp

SILENT BLOCK AIRFILTER

HH COLLAR SCREW M6X8 SW10

HH COLLAR SCREW M6X12

Panhead screw M6

GARTER SPRING

OIL RETURN TUBE

Plug
